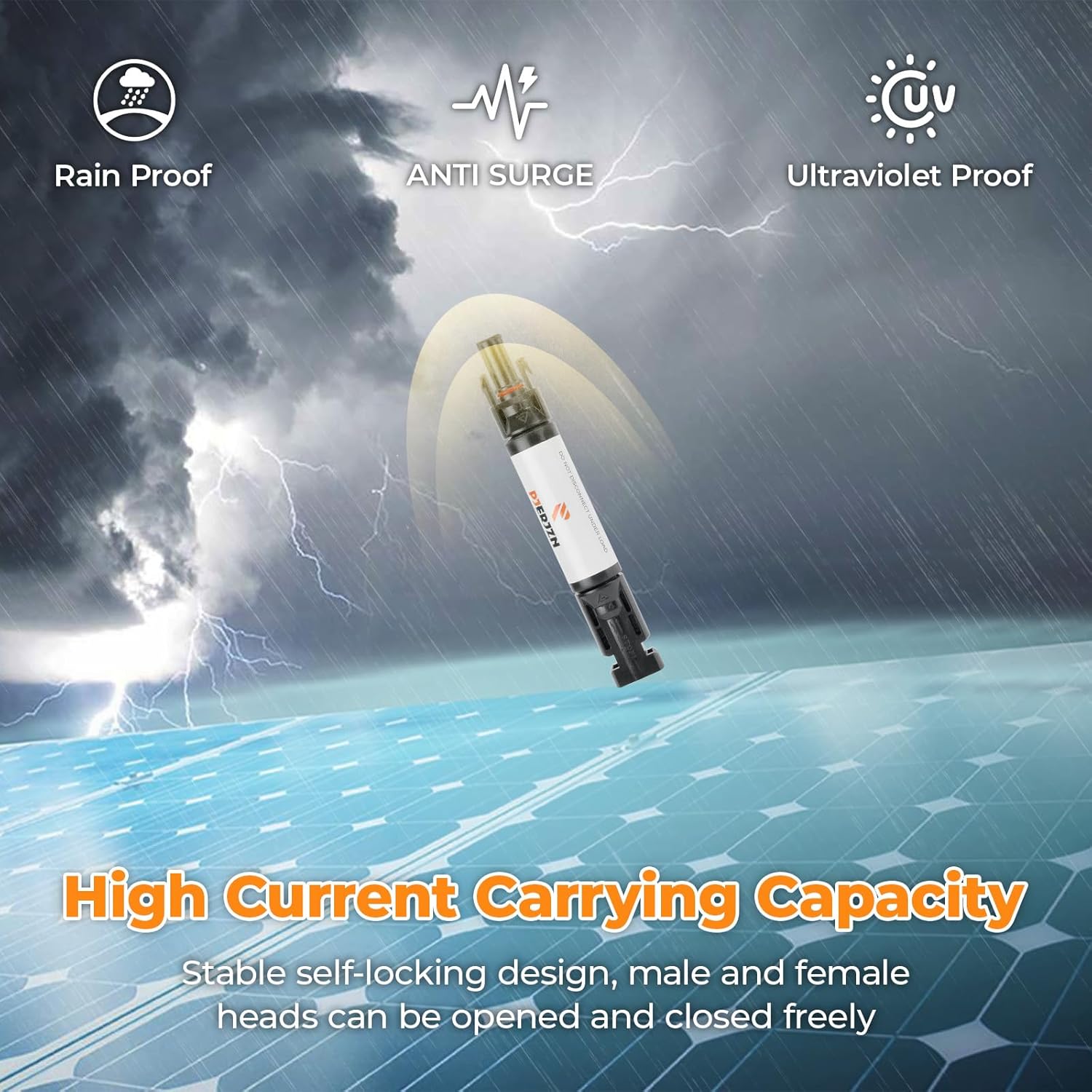

30A Solar Fuse Holder 1000V with Fuse Inline Male and Female Connector 30 Amp PV Fuse for Solar System, Ready to Plug IP67 Waterproof 5 PCS
Product details
| Management number | 209942769 | Release Date | 2026/04/02 | List Price | $13.60 | Model Number | 209942769 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- High-Quality Material: The Solar Panel Fuse is wrapped with a high-quality insulating PC/PPO shell, Ensuring a reliable inline solar fuse lower than 5mΩ resistance and UL94-V0 flame resistance, It's worth mentioning that, due to the material upgrade, the Temperature range of PJERJZN solar fuse Can withstand higher temperature differences than other solar fuses temperatures from -40° ~ +105°, Quality reliability.
- DEDICATED PV FUSE: Certified by TÜV and CE, this solar fuse connector is a great choice to protect against power surge. With the solar connector on two ends, there is the ceramic fuse tube in the middle, it is suitable for solar panel, solar cable and solar controller.
- IP67 Waterproof: WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!
- Universal Solar Fuse Connectors: Standard terminals, quick connect/disconnect, automatic locking and secure connection, Connector adopts touch and insertion of reed with inner-knob type, high current carrying capacity, durable.
- Technical Index: Rated current: 15A, Rated voltage: 1000V, the Section area of Cable：1*2.5~6mm2, Tensile resistance:100N, Test voltage: 6000V (50Hz, 1min), Conductor Material: Copper tin plating.
- Satisfaction Solar Panel Fuse: We are committed to providing high-quality fuse for solar for customers, so we can proudly assure you that we support all product warranties. Please feel free to contact us if have any quality problems or have some advice, we will supply you with a satisfactory solution. We will solve your problem within 24 hours.
| Color | 30A |
|---|---|
| Model | Pjerjzn MC4H |
| Brand Name | Pjerjzn |
| Manufacturer | Pjerjzn |
| Material Type | ceramic, tin, copper |
| Item Type Name | Solar Fuse Holder with Fuse |
| Item Dimensions | 4.25 x 0.65 x 0.65 inches |
| Maximum Current | 30 Amps |
| Specification Met | TUV |
| Included Components | Fuse |
