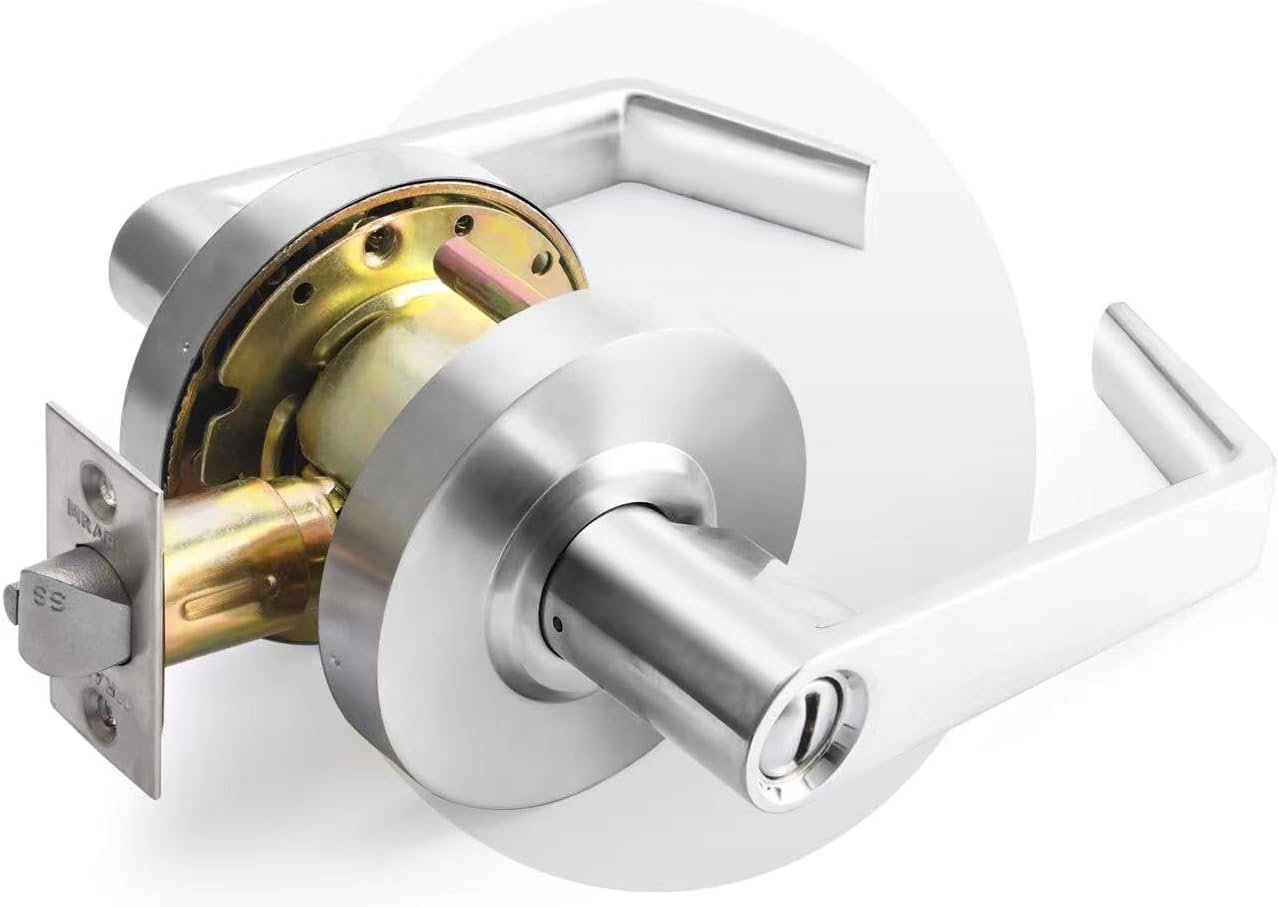

MrArm Commercial Door Lever Lock, Heavy-Duty Locking Door Handle, Designer Door Handles, Cylindrical Lever Lock, Non-Handed Grade 2 Industrial Standard Door Handle, Satin Chrome(Keyed Entry)
Product details
| Management number | 210244738 | Release Date | 2026/04/02 | List Price | $22.00 | Model Number | 210244738 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- KEYED ENTRY FUNCTION: Commercial lever door knobs with locks from MrArm Hardware are available for specific entrances. This "(Keyed Entry) Function" involves turn/push-button locking. The push-button locks the outside lever until it is unlocked by key or by turning the inside lever). Pushing and turning button locks outside lever require the use of a key until the button is manually unlocked.
- COLOR & SIZING: Our commercial door locks are offered in Satin chrome finish (26D finish). Fits Doors 1-3/8” to 1-3/4” (35mm to 44mm) Door tickness and come standard with a 2-3/4"(70mm) backset. These are non-handed commercial door levers, so they are suitable for either right- or left-handed doors.
- SPECIFICATIONS: Our door hardware & locks come with standard ANSI 1-1/10" x 2-1/4" square corner strikes and 1-7/10" x 2-3/4" square corner faceplates. The backset is 2-3/4" (70mm), the stainless steel Roses are 3-11/32" (85mm) in diameter, and Latchbolt Stainless steel is 1/2" (12.5mm) throw standard. These specifications make our door lever handle lock fitting for 161 door prep & regular 2-1/8″ bore prep.
- CERTIFICATION: Designed to be a reliable commercial door hardware, our heavy-duty entry key locks are ANSI/BHMA A156.2 - Grade 2 (exceeds 500,000 cycles) certified and UL listed. Each lever door handle with lock is made to meet A117.10 accessible design standards. It is also fire rated for up to 3 hours. Our commercial door locks meet the needs of home/business owners, apartment managers, contractors, maintenance facility managers, handymen, locksmiths, and property managers.
- WHAT'S IN A BOX: Each box of MrArm Hardware lever door handle locks includes 1 cylindrical lockset, 70mm latch, removal/reversal pin, dust box, strike plate, Keys*2, ST4*30mm screws*4, M4*30mm screws*2, M5*40mm screws*2, M6*12mm screws*2, ST4*20mm screws*4. The heavy-duty door closer features cold-rolled steel, machined and threaded hubs, and locking nuts to securely bolt the chassis to the door, thereby preventing loosening of the lockset even with hundreds of uses per day.
| Color | Satin Chrome |
|---|---|
| Shape | Round |
| Lock Type | Key Lock |
| Brand Name | MrArm |
| Metal Type | Alloy Steel, Stainless Steel |
| Style Name | Keyed Entry |
| Unit Count | 1.0 Count |
| Handle Type | Lever |
| Finish Types | Satin |
| Manufacturer | MrArm |
| Model Number | MADL03K |
| Material Type | Stainless Steel |
| Exterior Finish | Chrome, Stainless Steel |
| Handle Material | Alloy Steel, Stainless Steel |
| Number of Items | 1 |
| Hand Orientation | Ambidextrous |
| Additional Features | Easy to Install |
| Included Components | Key, Knob, Latch, Lock |
| Item Dimensions L x W | 8.46"L x 3.74"W |
| Handle Attachment Mechanism | screw |
