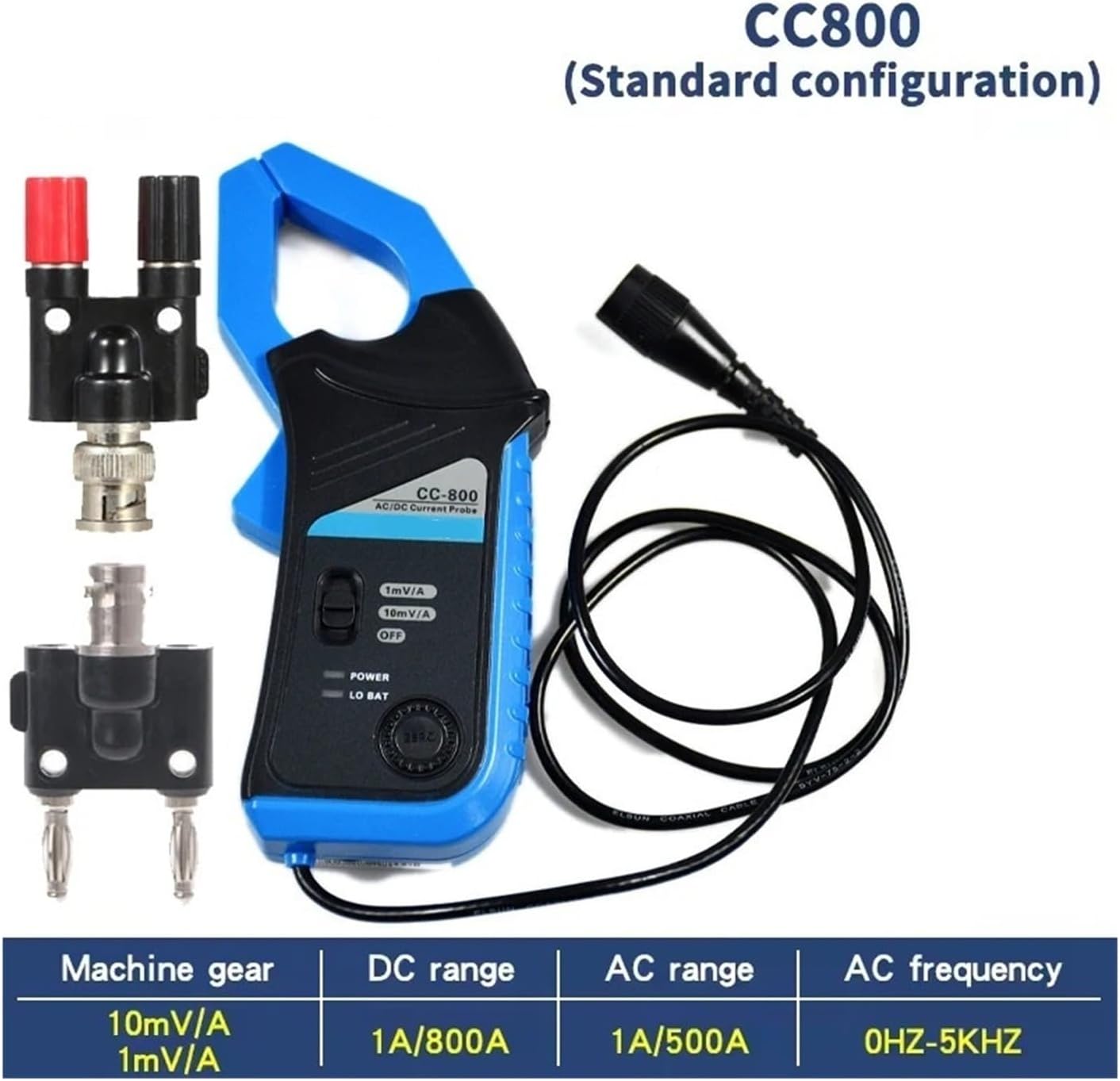

AC/DC Current Clamp Probe Oscilloscope CC-65 CC-650 CC-800 Adapter 20KHz/400Hz Bandwidth 1mV/10mA(CC-800 with BNC)

AC/DC Current Clamp CC-65AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.FeatureAC/DC frequency range: Up to 20 kHzEffective Measurement Range: 20mA to 65A DCIt is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.ApplicationPower circuit measurement and malfunction analysis;Motor drive of frequency converter (or other electronics) measurement;Power electronics equipments measurement.AC/DC Current Clamp CC-650AC/DC Current Clamp CC-650AC/DC Current Clamp, 400Hz Bandwidth, 1mV/10mA, 650A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.FeatureAC/DC frequency range: Up to 400HzEffective Measurement Range: 20mA to 650A DCEffective Measurement Range: 20mA to 650A DCIt is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.ApplicationPower circuit measurement and malfunction analysis;Power circuit measurement and malfunction analysis;Motor drive of frequency converter (or other electronics) measurement;Power electronics equipments measurement.==========Max Waveform Capture Rate : 30,000wfm/sRecord Length : 4KModel Number : CC-65 CC-650 CC-800Real Time Sampling Rate : 1GSa/SDIY Supplies : ElectricalBand Width : 60-99MHzDigital Channels : 2Display Resolution : 640*480 PixelsDisplay Size : 3.0 - 4.9 Inches

• 1. It is a transducer that allows your oscilloscope to measure current waveforms.
• 2.The current probe is Friendly in use: turn on, clamp it over a conductor, and get a reading;
• 3.If connected to an oscilloscope via a BNC type connector, you can observe current waveforms.
• 4.The oscilloscope current probe is with Accurate circuit measurement.
• 5.【Application】Power circuit measurement and malfunction analysis; Frequency converter (or other electronic components) measurement engine; Power electronic equipment measurement.
