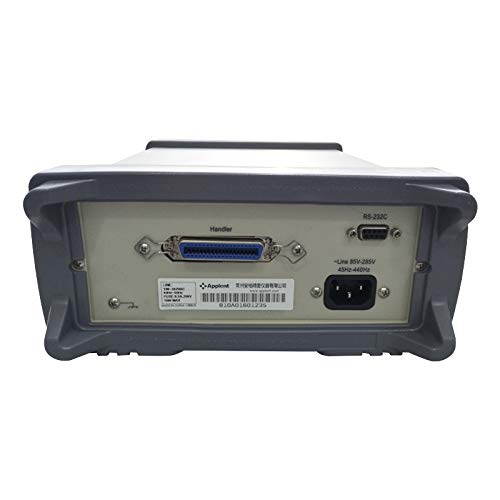

AT810A Precision LCR Meter with Signal Level 0.1V~2.00V, 10Hz~20kHz

Digital LCR meter AT810A series adopt the latest technology, covers 10Hz -20kHz continuous frequency, 0.01V-2.00V continuous level. Both main & sub parameters can be displayed in 6dgt with accuracy of 0.05% which made AT810A the performance leadership of LCR. Impeccable function of low frequency and multiple interfaces make AT810A adapt to any harsh environment. AT810A improved Handler interface can meet more requirements of different sorting machine. AT810A provides a high cost-performance and more accuracy solution for produce line. AT810A Precision Digital LCR Meter ParametersCs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, Rs-Q, R-X, Z-θrad, Z-θdeg Monitor ParametersZ, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% Accuracy0.05% ±5 dgt Frequency10Hz - 20kHz (continuous frequency with resolution of 0.001Hz) Display RangeL: 0.00001H-999999H C: 0.00001pF - 999999F R,Z: 0.00001 - 99.9999M D:0.00001–9.99999 Q: 0.00001 – 99999.9 %:-999999% - 999999% (deg): -179.999 -179.999 (rad) :-3.14159 – 3.14159 Source Resistance30Ω, 50Ω, 100Ω Range9 ranges, Automatic, Manual, Nominal Display Max6 dgt, principle parameter: 999999; sub parameter: 999999; monitor parameter: 999999 Signal Level0.01V - 2.00V (10mV Step) Speed30 t/s, 10 t/s, 6 t/s, 3 t/s 1 - 256 times average is available Comparator14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG Count function: Max - 999999 List Test10 groups frequency and level scanning test AdjustmentOpen/Short sweep frequency correction, 3 point frequency and load correction Files10 group files to save users' setting, 1 group to save system data real-time InterfaceRS232C, ExHandler Interface, with standard USB disc interface (article 10000 data) OthersLCR automatic selection, keypad lock, SCPI instruction set, TFT true color LCD display GENERAL FEATURES Power SupplyVoltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VA Size264mm(W

• Bench type LCR meter, capacitance meter, resistance meter, inductance meter
