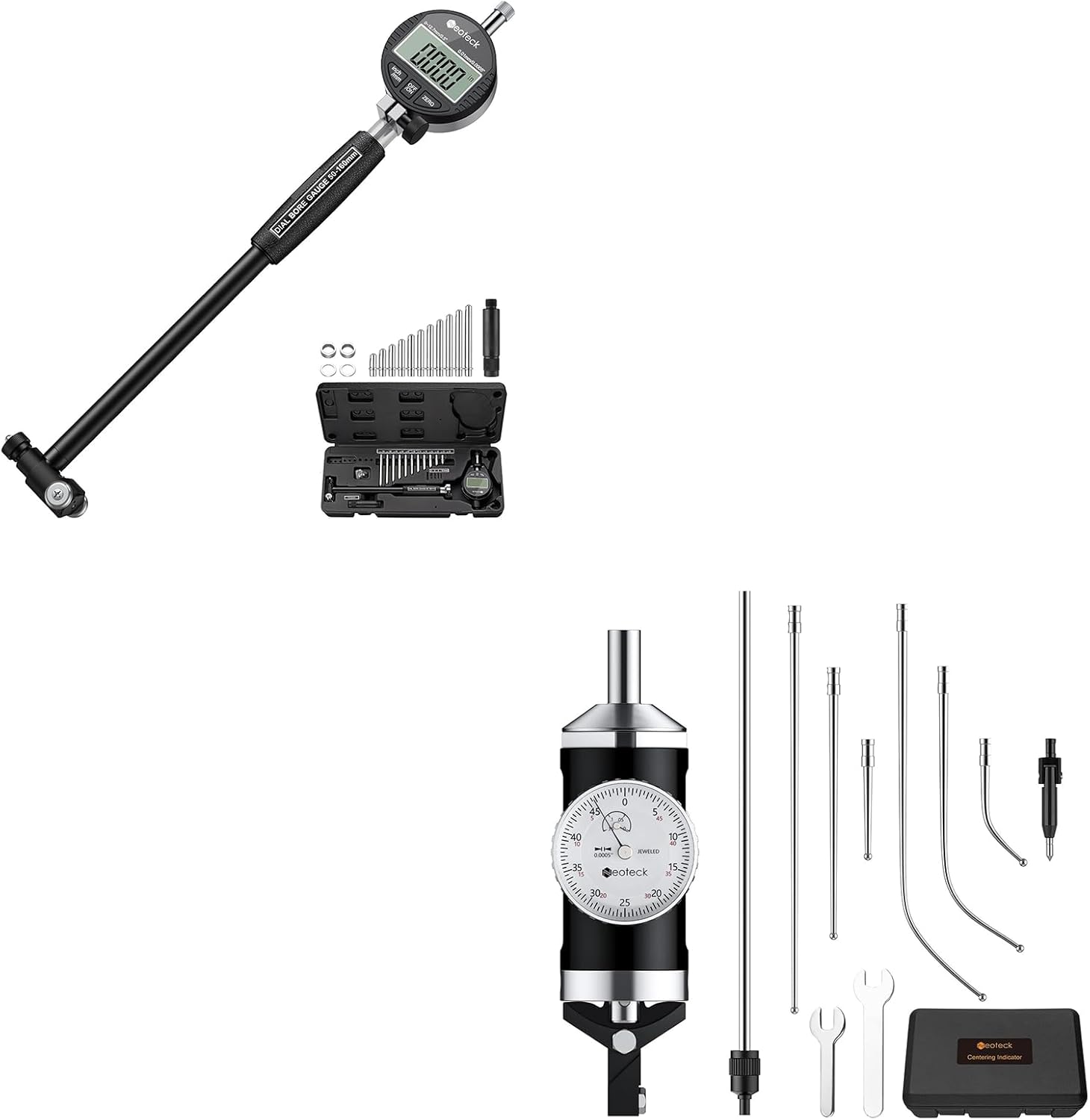

Neoteck 2-6" Digital Bore Gauge Set + 0.15'' Coaxial Centering Indicator

Neoteck 2-6" Digital Bore Gauge Set + 0.15'' Coaxial Centering Indicator

• 【Precise Bore Gauge Set】Bore Gauge Measuring diameter range:2-6 inch(50-160mm), Measures deep:5.9 inch (150mm), Accuracy:0.0005 inch(0.01mm). Super Precision Deep Measuring Bore Gauge - Two-point contact is used to detect geometric diameter measurement problems such as ovality and taper
• 【Self-Centering and User-Friendly】The bore gauge is Self-Centering for fast and accurate measurement, also, the insulated grip allows for easier measuring and is aasily adjustable. It is widely used for measuring the inner hole size of various processing techniques
• 【Compelete Set with Storage Case】Neoteck bore gauge set includes 1*0.5 inch Digital Indicator; 1* A set of measuring accessories; 1*Measuring rod; 12*Different Specifications of Gauge：50 mm(Has Been Installed in Measuring Rod) , 55 mm, 60 mm, 65 mm, 70 mm, 75 mm, 80 mm, 85 mm, 90 mm, 95 mm, 100 mm, 105 mm , 1* Storage Case, which is ideal for deep engine cylinder measurement (NOTE PLEASE: The 50 mm Measuring Probe has been Installed on the Measuring Rod!)

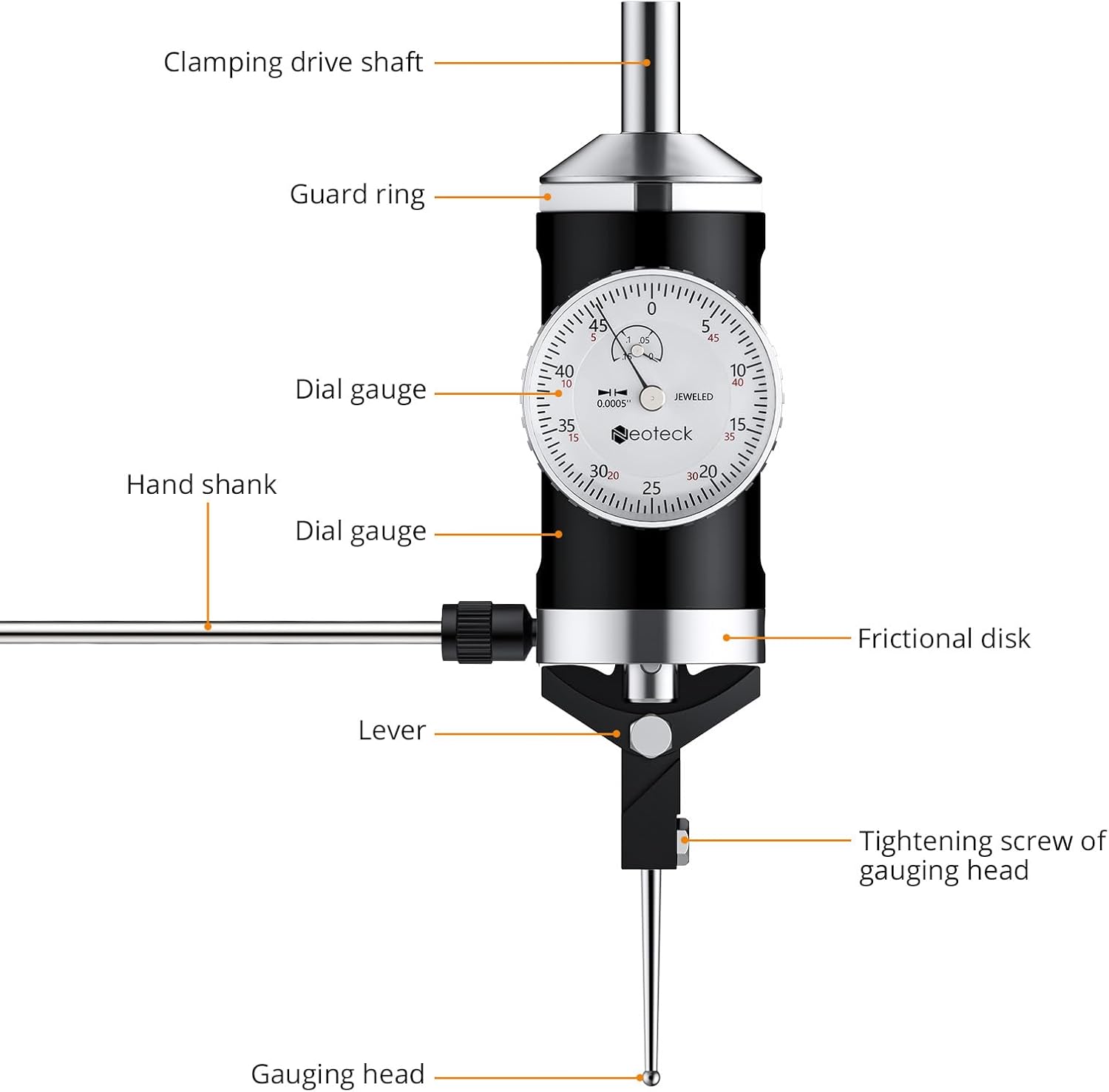

• 【More Accurate and Quicker Measuring】Supportinf Measuring Range: 0-0.15", Resolution: 0.0005", this CO-AX Coaxial Centering Indicator can Quickly and accurately center in boring and milling set-up on horizontal or vertical machines. When principal axis rotates, the dial plate faces operator throughout for him/her to center
• 【Professional Size】Mounting Shank: 3/8''. Capacity: Internal 5/32" to 4-1/4" dia. or External 0 to 4-1/4" dia.Speed: spindle rotation up to 100 RPM. Exceeding this speed is not recommended. This is a professional indicator to find out center (alignment) of workpiece on jig on boring machine or milling machine and center lateral diameters
