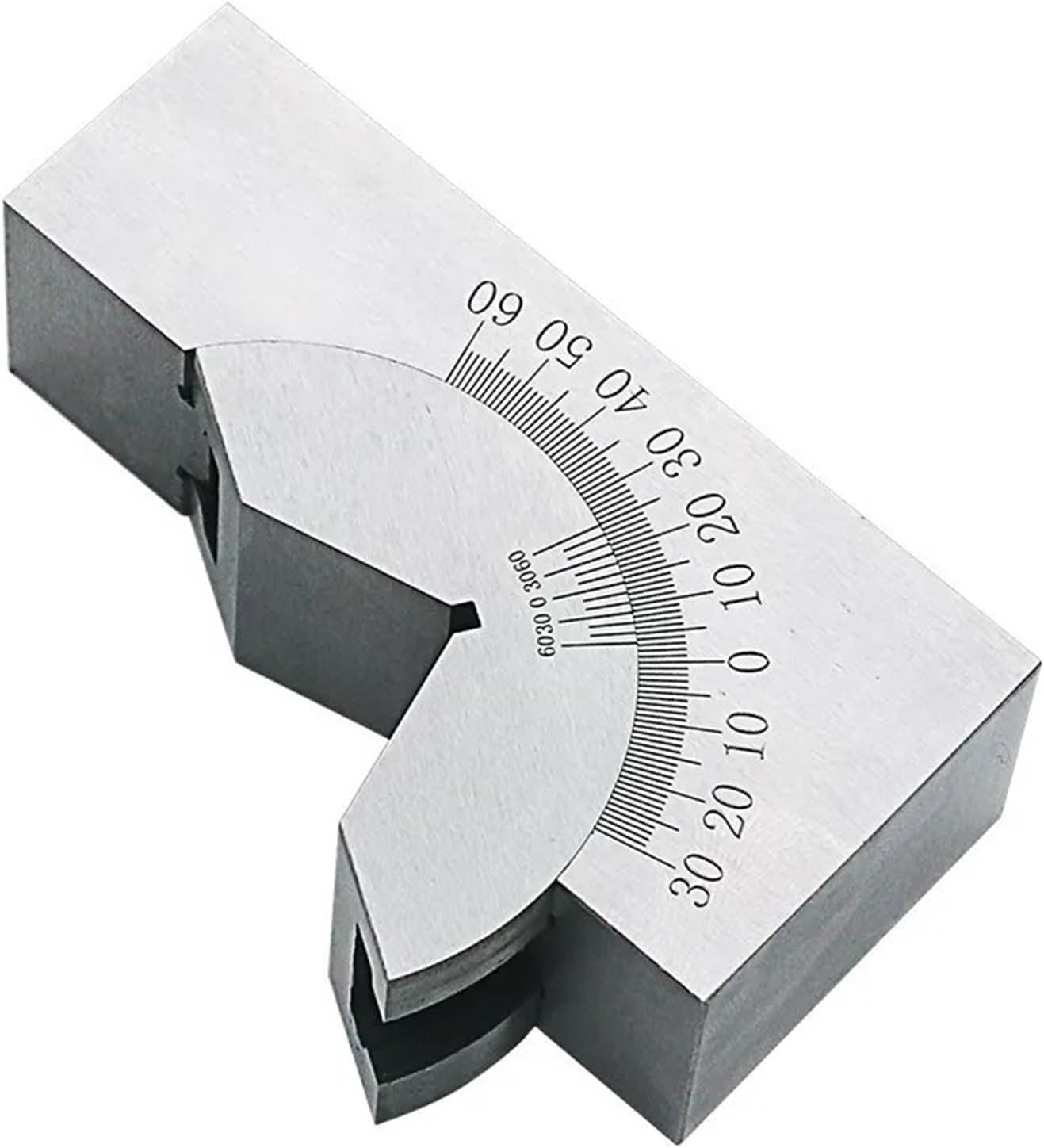

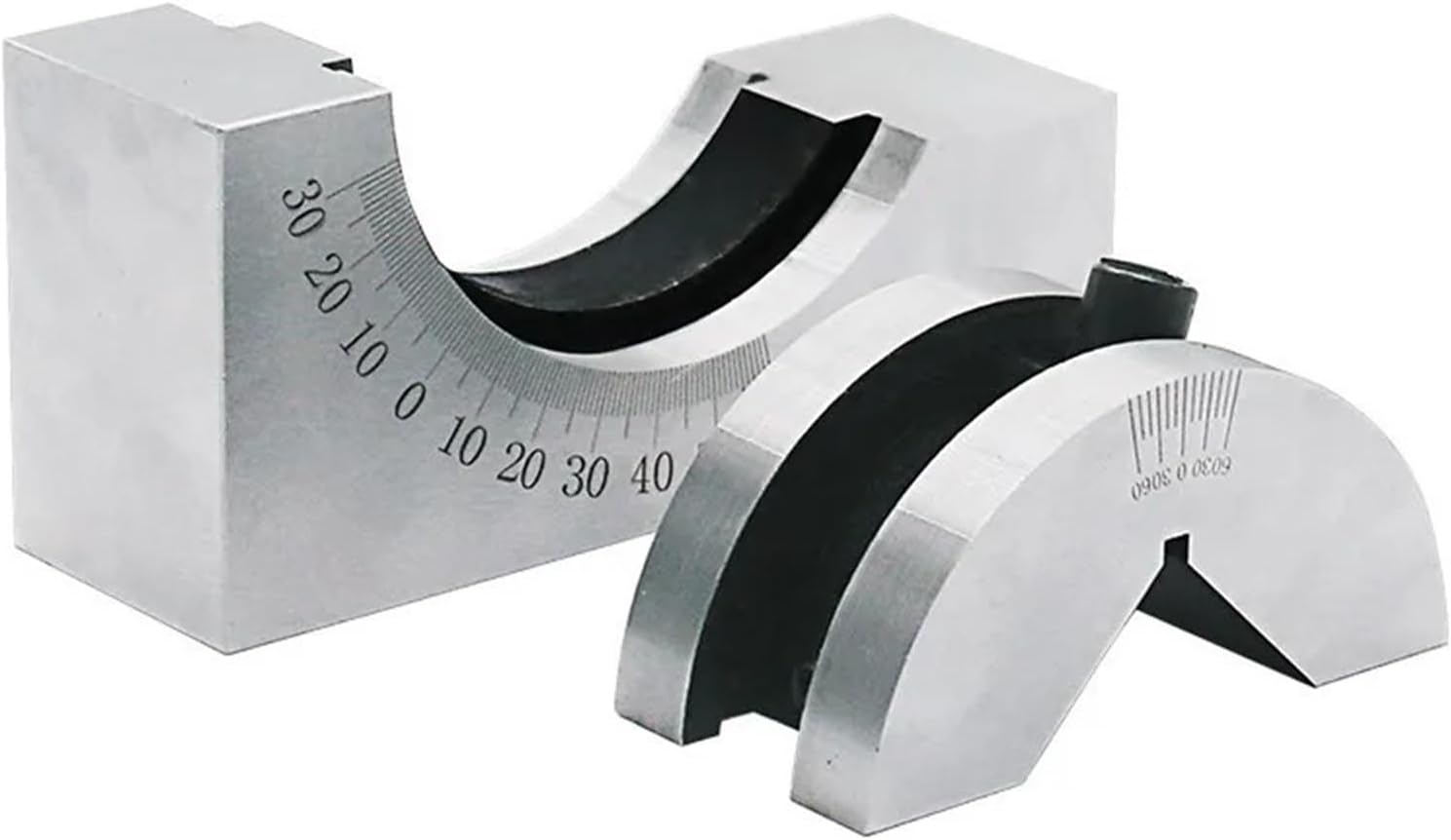

Stainless Steel Milling Machine Precision Parts Adjustable Pad 90 Angle Gauge Debugge V Block Angler Top Tool AP25 for Measuring

Note:1.Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

• Uses: On Milling Machine, Facing Machine, Grinding Machine and Drilling Machine, Use Adjustable Angle Gauge to Set the Knife Loose Thread Cooperate with Other Fixtures to Clamp the Workpiece and Process the Workpiece, Such as Processing Inclined Plane, drilling Oblique Holes, Etc.
• Usage: (1) Loosen the Screw and Pull the V-Block to Rotate along the Guide Rail on the Base to Find the Target Angle. (2) Use the Cursor Principle to Read, the Degree on the Main Scale Is 1 °, and the Cursor Degree Is 10 '. After the "0" Line on the Cursor Is Aligned with the "0" Line on the Main Scale, It Means That the Measuring Surface A Is Parallel to the Datum Line, and the Datum Line B Is Perpendicular to the Datum Line.
• When the Cursor "0" Line Is to the Right of the Main Scale "0" Line, the Degree Is Read out with the Cursor "0" Line, the Scores Are Read out with the Scale to the Right of the Cursor "0" Line (the Reading Method Is the Same as That of the Vernier Caliper). The Degrees (°) and Scores (') Read out Indicate the Anticlockwise Rotation Angle of the Measuring Surfaces a and B.
• When the Cursor "0" Line Is on the Left of the Main Scale "0" Line, the Degree Is Still Read out with the Cursor "0" Line, and the Score Is Read out with the Scale on the Left of the Cursor "0" Line. The Degree of Reading (°) and Minute (') Indicate
• a, B the Angle of Clockwise Rotation of the Measuring Surface. Tighten the V-Block to Set Screw with the Base after the Angle Is Adjusted to the Target Value.
