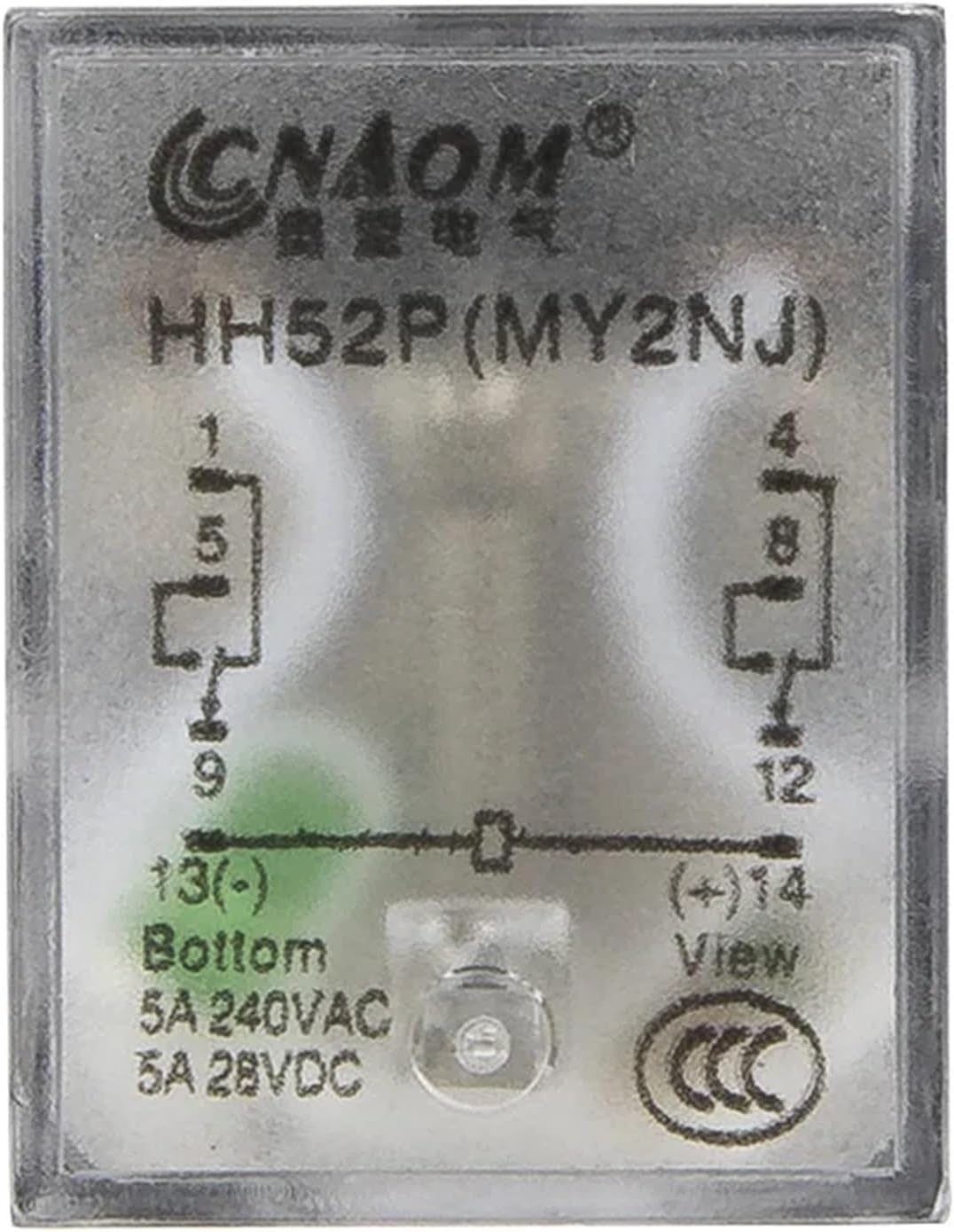

HH52PL electromagnetic Relay with LED Indicator HH52P MY2 Series AC 220V 110V 24V DC 24V 12V HH52P-L MY2NJ (Size : 110VAC)

Turn Signal RelaysHH52P series electromagnetic relayModel number and typeModel numberSame modelTypeRelated productHH52PMY2StandardHH52PLHH52P-L, MY2NJWith LED indicatorVisiting...HH52PL electromagnetic relay model number legendHH52PLParent Model NumberSocket-N: Without socket-S: With socketCoil voltage220VAC: 220VAC110VAC: 110VAC24VAC: 24VAC24VDC: 24VDC12VDC: 12VDC6VDC: 6VDCGeneralModel numberHH52P seriesContact materialSilver alloyContact formDPST-NO, DPST-NC, DPDTContact rating5A@28Vdc/240VacRated coil power1.2Wac, 0.9WdcRated coil voltageAC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380VDielectric strength1,500Vac, 50/60 Hz for 1 min between coil and contacts1,000Vac, 50/60 Hz for 1 min between opening contactsPick-up voltageDC types: 75% max; AC types: 80% maxDrop-out voltageDC types: 10% min; AC types: 30% minOperation voltage110% maxContact resistance50m maxTermination8 pinsMountingQuick connectMatched socketPYF08A,PY08Matched relay pothookFRSA01,PYC-A1Mechanical life1x107 operations minElectrical life1x105 operations minInsulation resistance100M min. at 500 VDCOperating temperature-30 to 55 °C (-22 to 131 °F)Operating humidity35 to 85% RH, no condensationExternal dimensions27.3x21x35.2 mmAlias nameHH52P series power relay, electric relay, electrical relayHH52PL electromagnetic relay related productsNoModel NumberSocketCoil VoltageRelated Product1 HH52PL-N220VAC(110VAC, 24VAC, 24VDC, 12VDC)Without socket220VAC; 110VAC; 24VAC; 24VDC; 12VDCVisiting...2 HH52PL-S220VAC(110VAC, 24VDC, 12VDC)With socket220VAC; 110VAC; 24VDC; 12VDC
