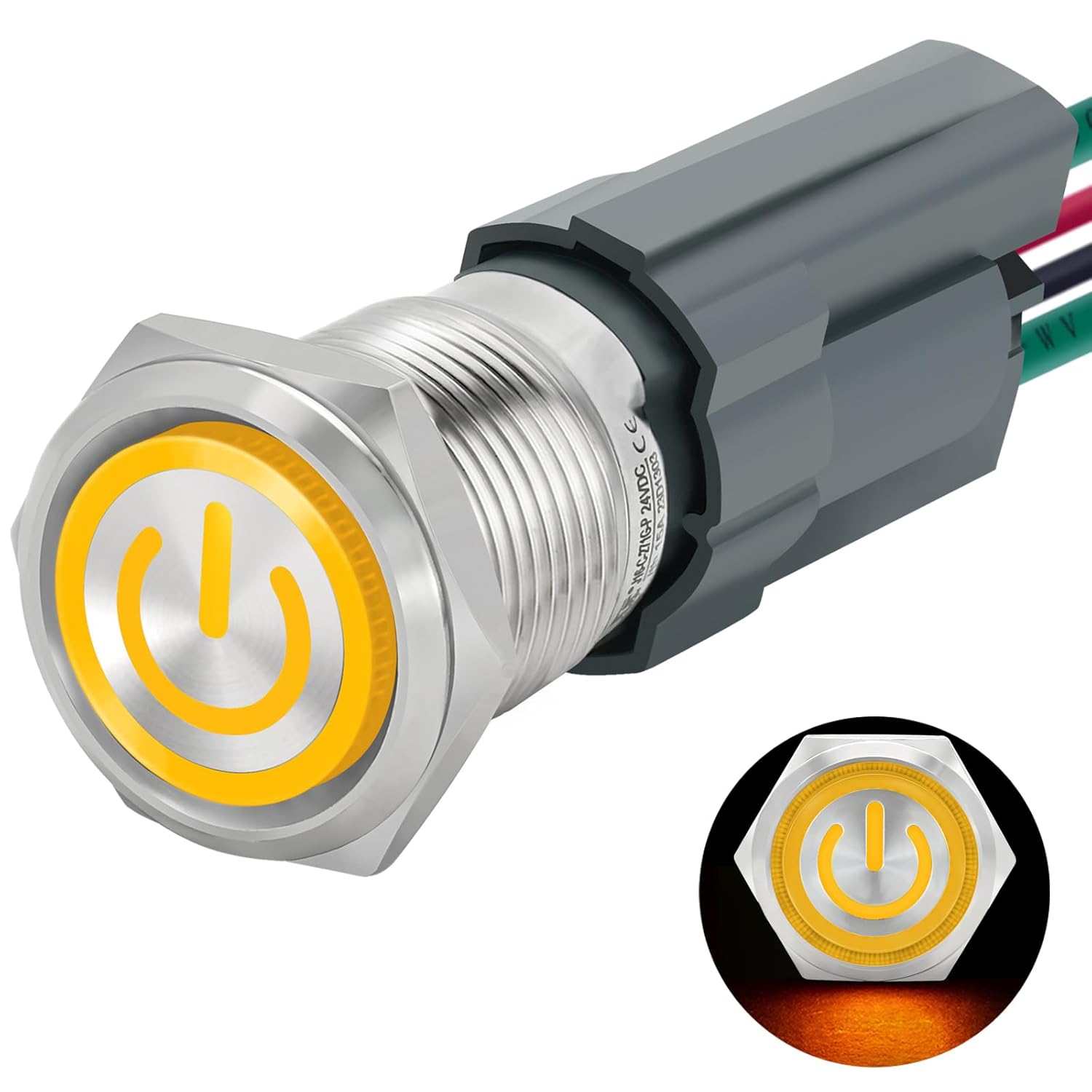

UL Listed 15Amp 5Pcs 16mm Latching Push Button Switch IP67 Waterproof; SPST 1NO, with LED Angel Eye 12V -24V Light; 304-Stainless Steel; with Wire Socket 5/8"
Product details
| Management number | 211069205 | Release Date | 2026/04/04 | List Price | $17.10 | Model Number | 211069205 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package include : 5PCS 16mm 15Amp Push Button Switch 5PCS 150mm Wire Connector Sockets What's Latching Switch: Latching switch, Push it, ON; Push it again, OFF. What is a high current switch Heating current :15A Rated insulation voltage: 250VAC Rated current (Resistive Load: 15A) (Inductive Load :4A) What's the Wire Connector: wire connector: 4* 1.5mm² Green wire （NO） 1* 0.3mm² Red wire (LED +) 1* 0.3mm² Black wire (LED -) With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch. Because this is a thick 1.5mm² wire, it can withstand 15A current.

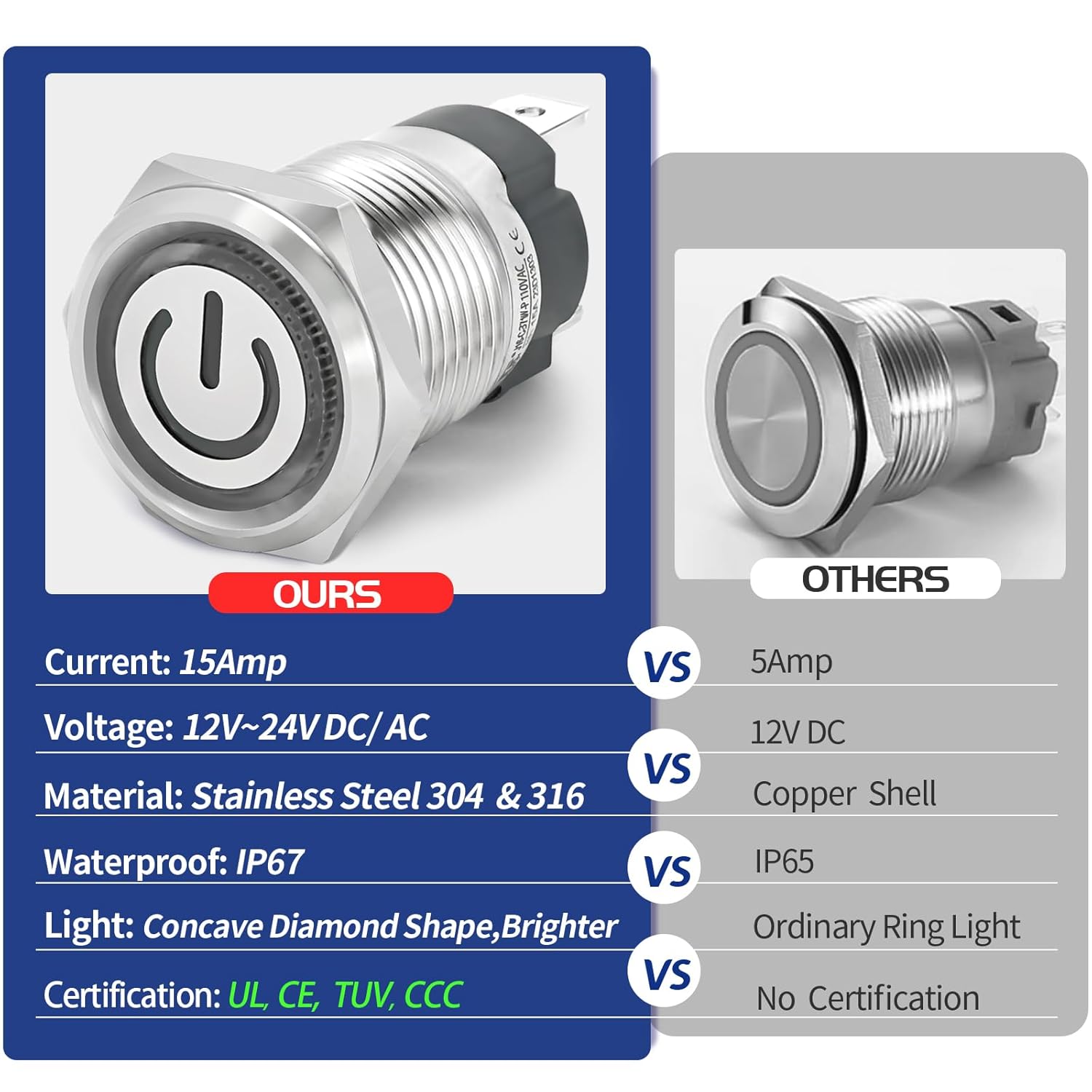

- ✅【15 Amp Current Rating, Latching】 Push Button Switch Current Rating:15 Amps 250V AC; Blue LED lamp voltage: 12V-24V DC/AC. Hole size required: 5/8inch / 16mm, Latching Push Button Switch: Push it, ON; Push it again, OFF.♥♥♥(on off switch)
- ✅【IP67 Waterproof Switch】IP67 waterproof switch protection can be used in wet or dusty enviroment. Our push button switch have UL/CE/CCC Certification.♥♥♥ UL certification was approved on June 6, 2005, and currently there is no UL logo engraved on the product.♥♥♥ The shell is made of stainless steel 304 material, which is very sturdy and durable.
- ✅【12V-24V LED Light】The push button light switch light ring adopts a unique design, with a toothed circular transparent cover, making the light source more bright and eye-catching. LED light life: 40000 hours. Using AC/DC LED lamp, the terminals have no difference of anode and cathode. Button mechanical life: 1,000,000 cycles.

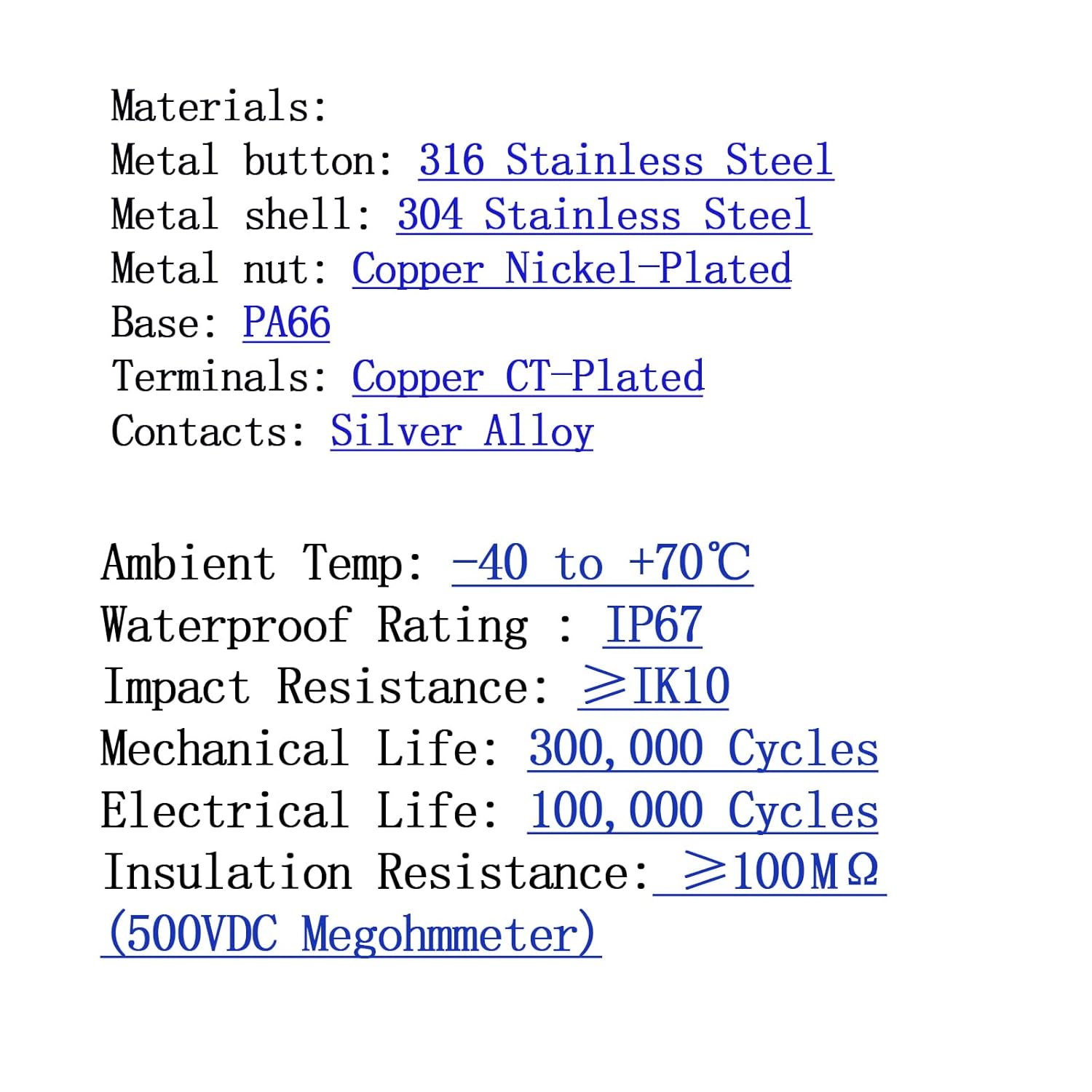

- ✅【 1NO Contact】Contact material: Silver Alloy, SPST ,1 Normally Open. 4.8 mm wide X 0.8 mm thickness terminal pin for 15A high current use. Two green wires connect the device input and output, and the red and black wires (LED polarity free) connect to the power supply.
- ✅【Package】Package include : 5 * 16 mm Blue Push Button Switch 15A , 5 * Wire Socket Plug 1.5mm². Waterproof 12v switch is widely used: pc power button,marine switch,car switch,Household Appliances. ♥♥♥ If you have any question, please be free to contact us.
| Color | Blue |
|---|---|
| Model | J16-C-371BD-P5 |
| Terminal | Solder |
| Brand Name | ZJWZJH |
| Unit Count | 5.0 Count |
| Item Weight | 13.61 g |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | ZJWZJH |
| Actuator Type | Push Button |
| Material Type | Stainless Steel |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Current Rating | 15 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 1.24 x 0.74 x 1.24 inches |
| Number of Items | 5 |
| Contact Material | Silver |
| Operating Voltage | 12 Volts |
| Specification Met | CCC, CE, RoHS, TUV, UL |
| Included Components | 5 * 16 mm Blue Push Button Switch 15A , 5 * Wire Socket Plug |
| Warranty Description | If you have any questions, please contact us. |
| Upper Temperature Rating | 70 Degrees Celsius |
| International Protection Rating | IP67 |
