40mm 1.57" Momentary Big Push Button Switch 2 Color Light Red and Green 12VDC/AC Stainless Steel 316 Waterproof IP67 DPDT with Wire (Volts, 12)
Product details
| Management number | 211069247 | Release Date | 2026/04/04 | List Price | $11.25 | Model Number | 211069247 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package include : 1* Push Button Switch 2* Wire Connector Sockets 1 * Spare Contact What's Momentary Switch: Momentary switch, Push & Hold, ON; Release, OFF What's the Wire Connector: With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket What's Momentary Switch Used for: Great for electromagnetic starter, relay, Doorbell, Horn Button Switch, PC Power Switch or any circuit controls What's Note: -These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater -The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out What's Customer Support: If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you Specifications: Head diameter: 1.76"(44.7mm) Mounting hole size: 1.57" (40mm) Total length: 1.67" (42.5mm) Switch combination: 2 NO 2 NC DPDT Switch rating: 5A/250VAC, LED rating: AC/DC 12V Enclosure material: 304 Stainless Steel Head material: 316 Stainless Steel Protection level: IP67, IK10
- IP67 waterproof protection can be used in wet or dusty enviroment.Our Push Button Switch through CE certification.Shell material: stainless steel 304, surface material of head button: stainless steel 316, product is sturdy and durable, with IK10 protection.

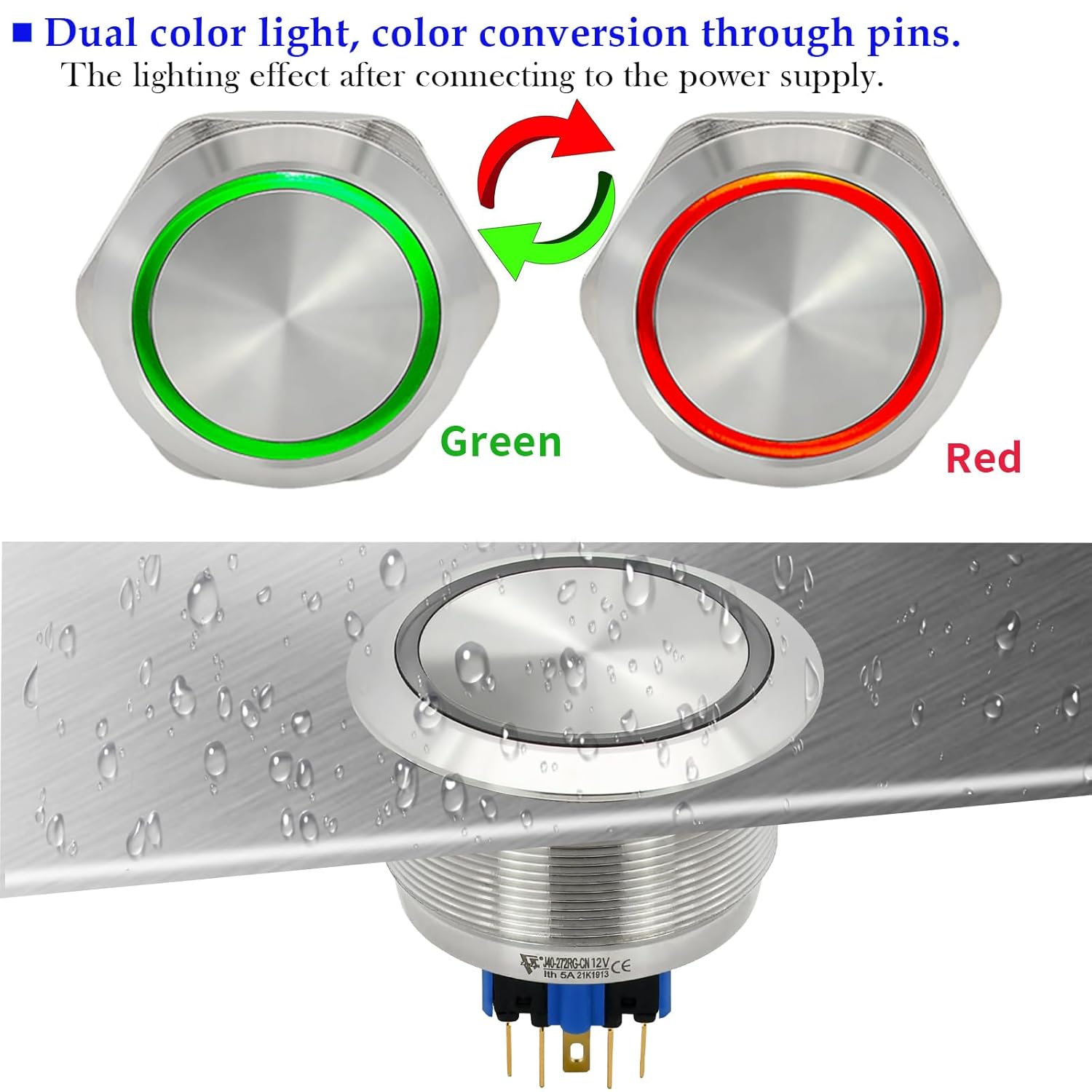

- Two-color light 12V (DC/AC) , red and green changing on the positive and negative poles, LED Life:40000 Hours, LED light is soft and not dazzling.
- 40mm Momentary Push Button Switch: Push & Hold, ON; Release, OFF, Contact Configuration: 2NO 2NC (DPDT). Switching current: 5A 250V AC.
- Head Size : 44.7mm (1.76"), Mounting Hole Size : 40mm (1.57"), Total length: 42.5mm (1.67 "). Mechanical life: 1,000,000 cycles. Product Net Weight：90g ( 0.2 pounds ).
- Package Content: 1 Pcs Push Button Switch, 2 * Wire Socket Plug, 1 * Spare Contact.
| UPC | 732688002440 |
|---|---|
| Color | Red and Green |
| Model | J40-272-12/24V |
| Wattage | 60 watts |
| Terminal | Solder |
| Brand Name | ZJWZJH |
| Unit Count | 1.0 Count |
| Item Weight | 3.2 ounces |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | ZJWZJH |
| Actuator Type | push button switch |
| Material Type | Stainless Steel |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 5 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 1.67 x 1.75 x 1.67 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 12 Volts |
| Specification Met | CE |
| Included Components | 1 Pcs Push Button Switch, 2 * Wire Socket Plug, 1 * Spare Contact. |
| Number of Positions | 10 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 70 Degrees Celsius |
| International Protection Rating | IP67 |
