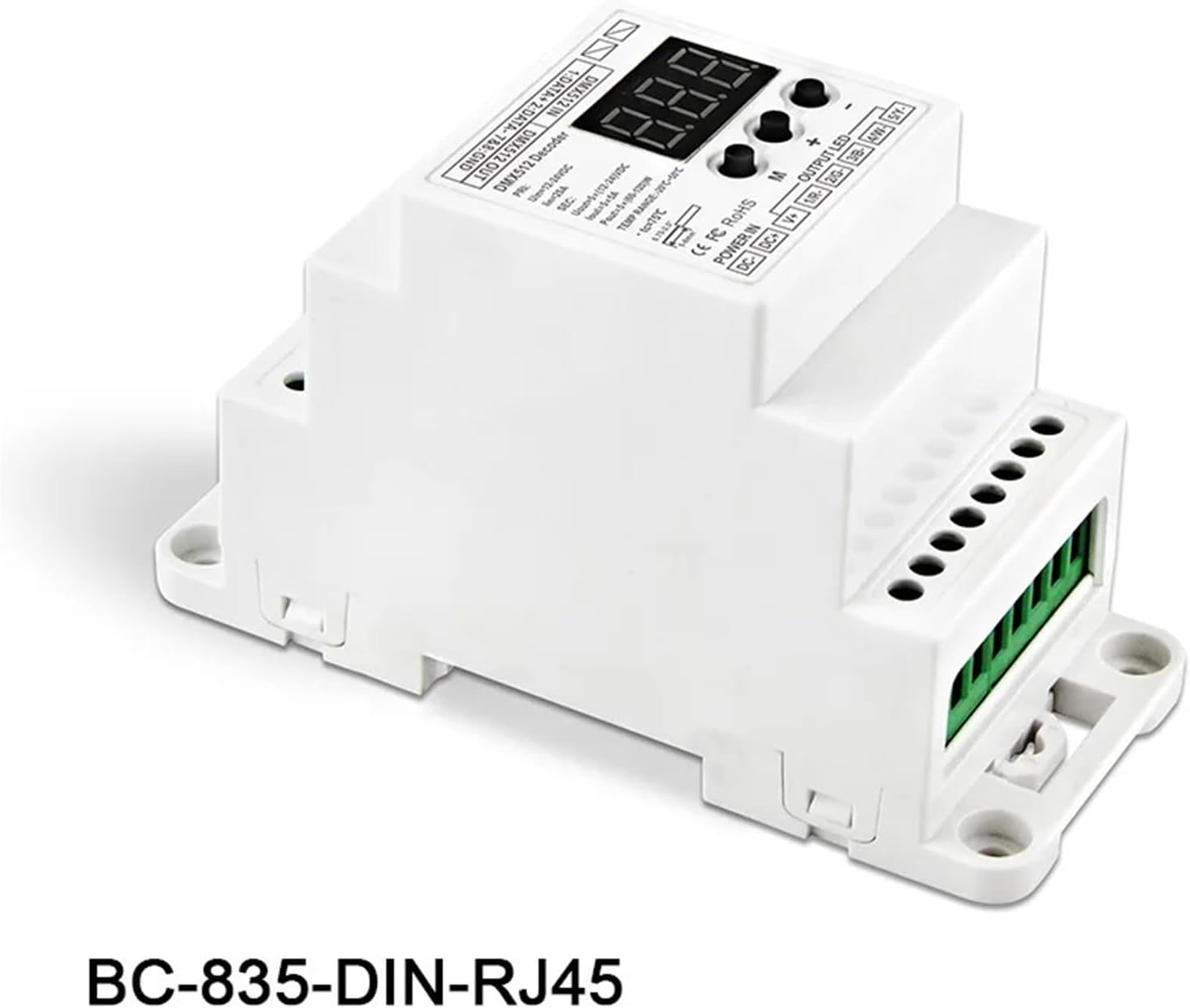

BC-835-DIN-RJ45 DC12-24V Input 5A*5CH Output DIN Rail 5CH CV PWM DMX512/1990 LED Light Strip decoder Controller

ControllersDimmersWelcome to use the constant voltage DMX512 decoder specially developed for constant voltage LED lamps. Using advanced microcomputer control technology the standard DMX512/1990 signal is converted into a PWM signal. Users can select 1~5 output channels and 4096 levels of grayscale. It can be used as a DMX512 master or as a DMX decoder connecting the computer digital output console with the analog silicon box to control LED lights in buildings and lighting.Specification:Model: 5-way constant voltage decoderInput voltage: DC12V-DC24VMaximum load current: 5CH×5AMaximum output power: 300W(12V)/600W(24V)Grayscale: 4096 levels × 5Input signal: DMX512/1990Output signal: constant voltage PWMDecoding channel: 5CHDMX512 socket: RJ45Size: L111×W46×H66(mm)Weight (gross weight): 135gFeatures and functions:1. Automatically adapt to the input voltage DC12V-24V.2. Input standard DMX512 signal; the 3-digit display shows the DMX address code.3. 4 outputs; 4096 levels of gray each; logarithmic dimming; soft and stable light no flicker4 DMX master mode slave modes available5 Built-in 8 color changing modes and 10 speed levels6 DMX512 signal receiving status indicator light7 Power-off memory function8 DMX port miswiring protection over current protection and short circuit protection.9. DIN rail design facilitates installation of large projects.safety warning:Do not install this controller in lightning strong magnetic field or high voltage places.1. To reduce the risk of component damage and fire due to short circuits please ensure correct connections2. Always make sure to install this device in a well-ventilated area to ensure proper temperature.3. Check whether the voltage and power adapter are suitable for the controller(Please choose DC12-24V constant voltage power supply) 4. Do not connect while the power is on; please use an in
