ET32C Automotive Signal Generator Multimeter Car Signal Simulator Duty Voltage Hz Ohm Capacitor Ignition Coil Test

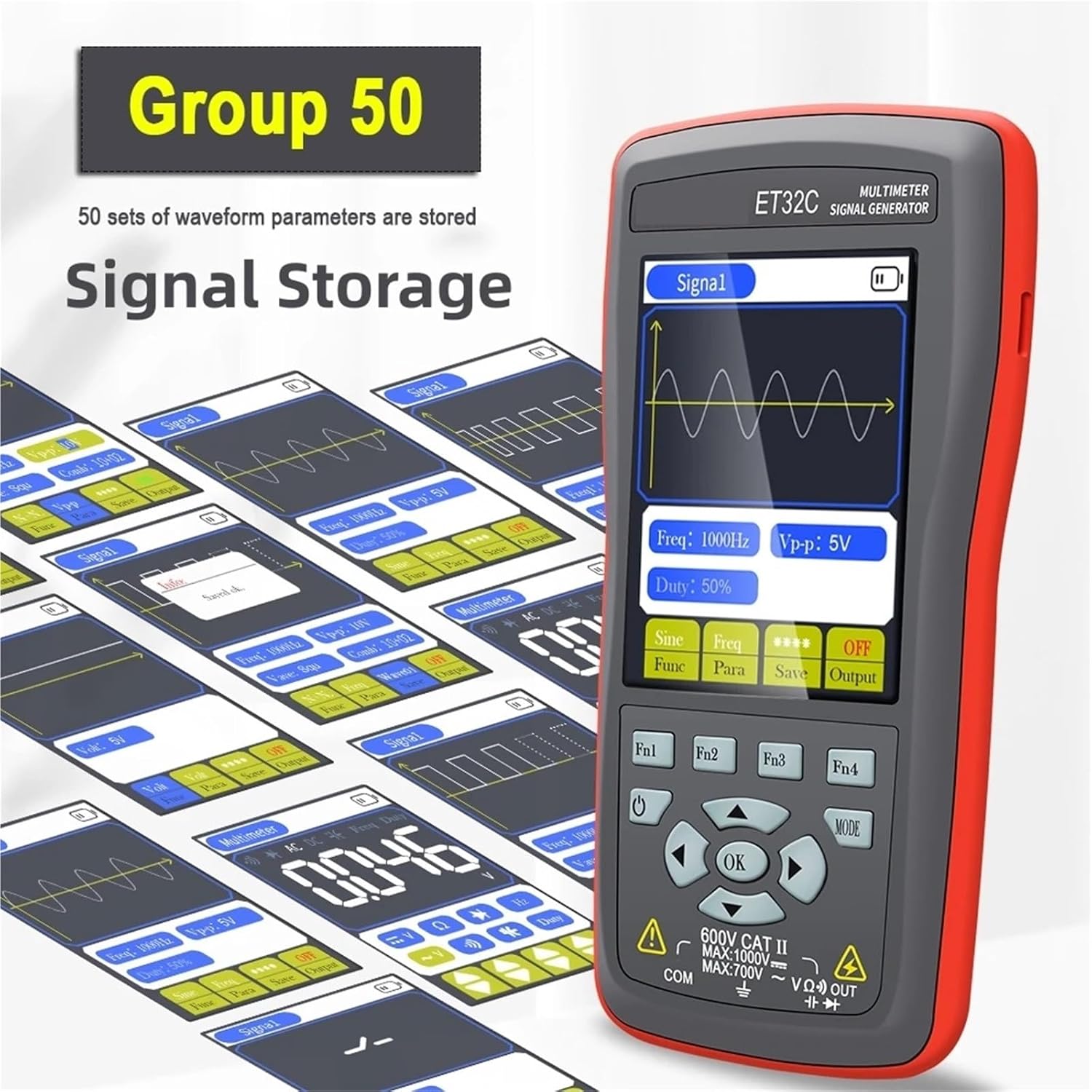

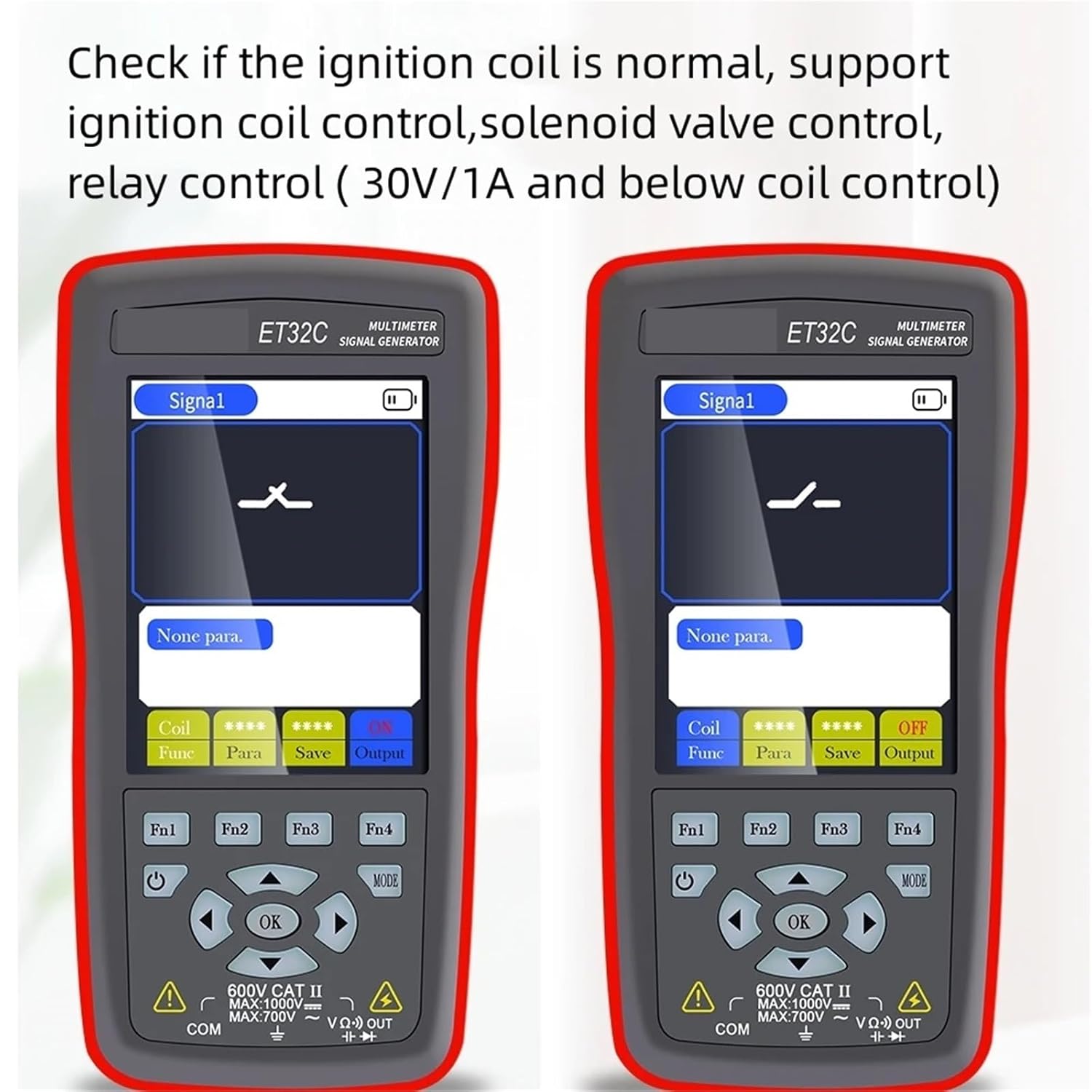

Function GeneratorsModel:ET32C Built-in lithium batteryFeatures:1. Adjustable signal parameters: The output frequency of the signal generator is adjustable from 1HZ to 9999HZ; the output amplitude is adjustable from -12v to +12v.2. Multiple signal output: It can output square wave, sine wave, combination wave (square wave N+N, sine wave N+N), scanning wave and DC wave.3. Automotive signal simulator: Can simulate Hall type and magnetoelectric crankshaft signals and cam signals. Supports crankshaft and cam signal simulation for gasoline and diesel vehicles.4.Support magnetoelectric signal scanning or Hall signal scanning.5. Signal storage: The instrument supports 50 groups of signal waveform storage, and can store waveforms to specified locations.6. Combined wave signal: The missing tooth signal can be set arbitrarily (for example, combined wave 58+2, 10+1) without connecting to a computer.7.Scanning wave signal:It can output scanning wave to simulate the process of crankshaft cam signal running from low speed to high speed.8.Analog voltage output:-12v - +12v adjustable, step value 1V.9. Coil control: supports ignition coil control, solenoid valve control, and relay control (only supports coil control of 30V/1A and below).10. Multimeter:measure DC voltage, AC voltage, resistance, diode, continuity, capacitance, frequency and duty cycle. Quantity function.11. The internal power supply of the equipment is isolated to prevent electric shock.Specifications: Display screen: 2.8 inch 320 * 480 resolutionTouch screen: not supportedUSB interface: Type-C USBBattery: Built-in 4.2V lithium battery (for ET32C)Storage temperature: -20~60 (-4~140 )Working temperature: 0-50 (32-122 )<;85% RH (non condensing)Product size: (LxWxH) 134 mm * 69 mm * 25 mmProduct weight: 125g (excluding accessories)Signal generator parameters Sine wave/square wave frequency range: 1Hz~9999HzSine wave/square wave frequency step: 1HzSine wave/square wave peak range: -12V~+12VSine wave/square wave peak step: 1VScanning wave scanning time range: 1s~999sMaximum number of combined wave combinations: 99+99Output voltage range: -12V~+12VOutput voltage step: 1VCoil control power: below 30V/1AWaveform storage: 50 setsDuty Setting:1%~99%(only for square wave )Multimeter parameters Maximum DC input voltage: 1000VMaximum AC input voltage: 750VMaximum measured resistance: 40M Maximum measured capacitance value of capacitance: 100uFMaximum frequency measurement: 50KHzDuty cycle measurement range: 0.1%~99.9%Diode measurement range: 0V~1.5VMaximum resistance value for on/off detection: 30 Display:4000 counts updated :3 times per secondPackage List 1 x Signal generator multimeter1 x One pair of test leads1 x One pair of crocodile clamp wires1 x English User Manaul==========Battery Included : YesHigh-concerned chemical : NoneDIY Supplies : ElectricalScreen : 2.8 inchesUSB interface : Type-CSine/Square frequency range : 1-9999HzSine/square Peak Range : -12V~+12VScanning wave scanning time range : 1s~999sMaximum number of combined wave combinations : 99+99Output voltage : -12V~+12VCoil control power : below 30V/1AWaveform Storage : 50 setsDuty Setting : 1%~99%(only for square wave )DC Voltage : 1000VAC Voltage : 750VResistance : 40MCapacitance : 100uFFrequency : 50KHzDuty cycle : 0.1%~99.9%Diode : 0V~1.5VDisplay : 4000Counts
