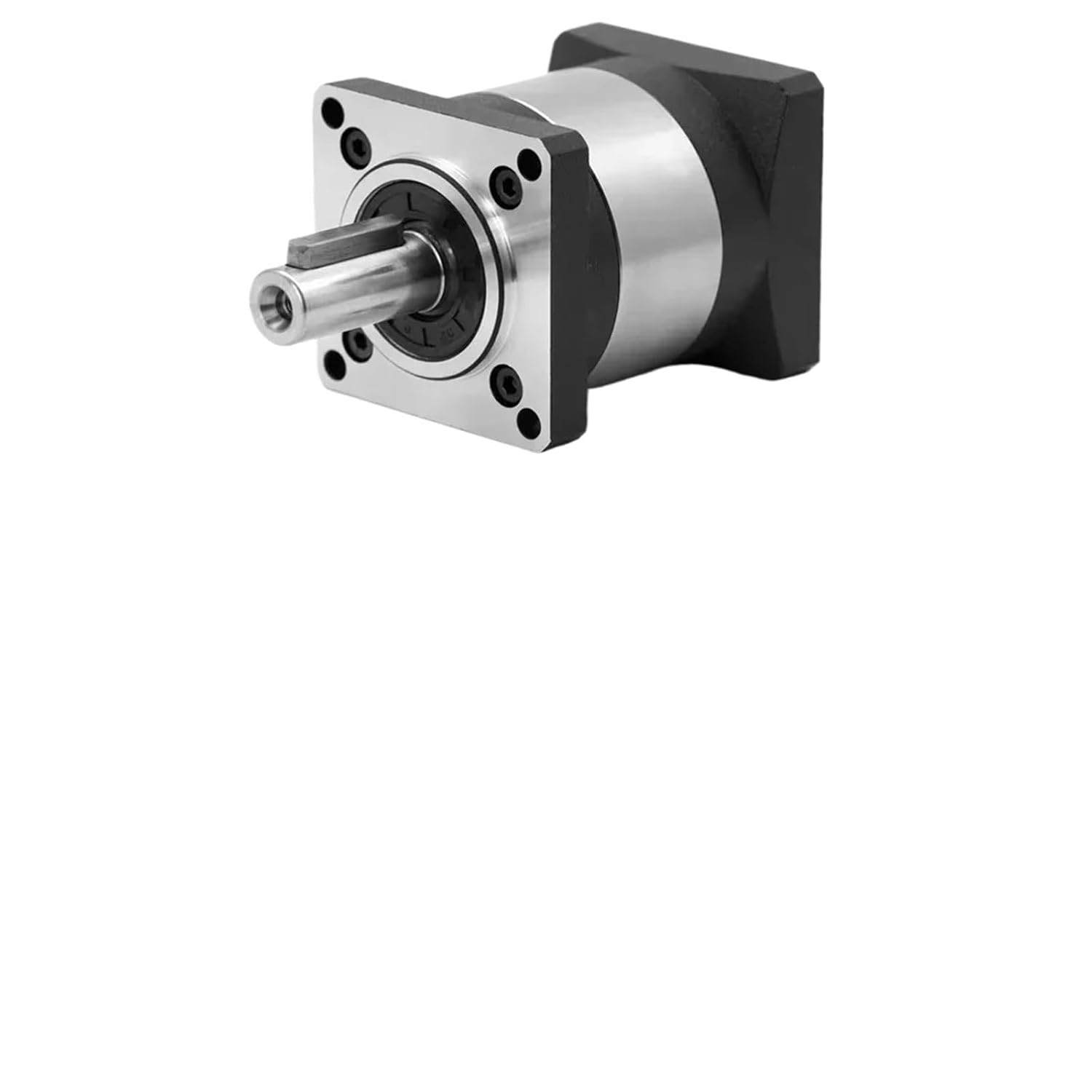

23 57mm Stepper Motor Reducer Planetary Gearbox Ratio 5:1 10:1 Step-Down Gear 6.35/8mm Input 14mm Shaft for Textile Machine(8mm Input 14 Output,Ratio 5 to 1)

Gearboxes, Gearheads & Speed Reducers1x Planetary Gearbox 1x Key4x Install screwReducer parameters: Speed Ratio: 1Stage (L1):4:1 / 5:1 / 7:1 / 10:1 2Stage (L2): 16:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 Input Shaft:6.35mm(1/4 inch) / 8mm Output Shaft:14mm Rated output : 8Nm (10:1) ; 19Nm (7:1) ; 27Nm (4:1) ; 29Nm (5:1) ; 30Nm (16:1 / 20:1 / 40:1); 33Nm ( 25:1 / 35:1 / 50:1) Body length: L1=66mm, L2=81mm Full load efficiency: L1 95%, L2 90% Max radial force: 320N Max axial force : 240N Max input speed: 4000rpm Rated input speed: 3000rpm Protection class: IP65 Lifespan: 20000h Backlash Precision: L1 20 Arcmin , L2 40 Arcmin If you need a higher precision reducer, please click the picture below:==========Hign-concerned Chemical : NoneInput Speed : 3000rpmModel Number : DLF57Gearing Arrangement : PlanetaryCertification : Input Shaft : 6.35mm/8mmOutput Shaft : 14mmMax input speed : 4000rpmRated input speed : 3000rpm 23 gearbox : planetary gearProduct Type 1 : ReducerProduct Type 2 : reduction gearboxProduct Type 3 : 23 reducerProduct Type 4 : speed reducerProduct Type 5 : Motor reducerProduct Type 6 : Reduction reducerProduct Type 7 : Motor gearboxProduct Type 8 : reducer for 23Product Type 9 : precision gearboxProduct Type 10 : precision reducerProduct Type 11 : gearboxProduct Type 12 : precision reducerProduct Type 13 : precision planetary gearboxProduct Type 14 : step-down reducer 5 to 1Product Type 15 : Step-down gearboxProduct Type 16 : planetary reducer 23Product Type 17 : planetary reducerProduct Type 18 : Stepper motor reducerProduct Type 19 : Stepper motor gearbox
