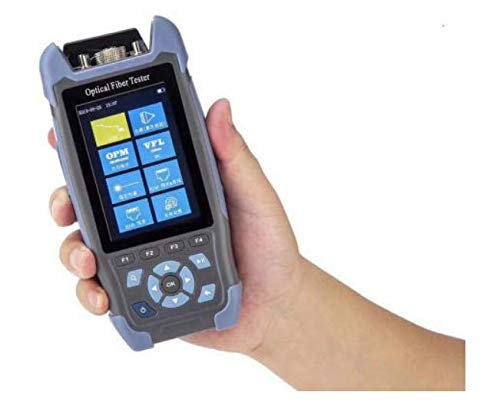

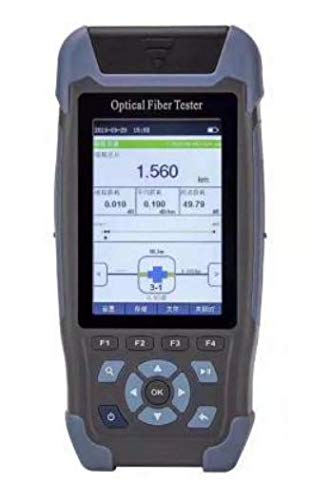

3.5in Color LCD Mini-Pro OTDR Tester JW3302S Optical Fiber Tester with 8 Functions Orange OTDR/OPM/LS/VFL/RJ45 Sequence/Flashlight

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Specification Model: JW3302S Wavelength: 1310nm/1550nm±20nm Fiber Type: G.652 SM Fiber Dynamic Range: 24dB/22dB Event Blind Zone: 3m ATT Blind Zone: 8m Test Range: 500m~60km Pulse Width: 3ns~10us Ranging Accuracy: ±（1m+Sampling Interval +0.005％×Test Distance） Loss Accuracy: ±0.2dB/dB Sampling Points: 16k~128k Sampling Resolution: 0.05m~8m Reflection Accuracy: ±3dB Data Storage Internal: ≥600; External：TF Card Laser Safety Level: Class Ⅱ level File Format: SOR Standard File Format Connector: FC/UPC（Interchangeable SC、ST） OPM Wave Range: 800nm~1700nm Interface Type: Universal Joint FC/SC/ST Test Range: -50dBm～+26dBm Uncertainty: ±5% Frequency Identification: CW/270/330/1k/2kHz Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm LS LD Type: FP-LD Output Wavelength: 1550nm±20nm 1310nm/1550nm±20nm Output Power: ≥-5dBm Modulation: 270/330/1k/2kHz Frequency Stability: CW，±0.5dB/15min（Test after15mins of preheating） Connector: FC/UPC（Interchangeable SC、ST） VFL Work Wavelength: 650nm±20nm Output Power: ≥10mW Mode: CW/1Hz/2Hz Connector: FC/SC/ST RJ45 Cable Length Measurement Test Range: 300m Other Parameters Dispaly: 3.5 inch Color LCD Data Interface: Micro USB External Storage: TF Card Power Supply: Polymer Li-battery：3.7V，4000mAh Power Adapter：5VDC，2A Battery Life: Standby＞20h；Measuring Time＞12h Weight: ≤350g Dimension: 173mm×82mm×37mm

• Apply to FTTx and access network construction and mainte nance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key;
• 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof;
• It could quick detection of breakpoint, universal connector, 600 internal storage, TF card;
• USB data storage and built-in 4000mAh lithium battery, USB charging;
• Combine 8 functions with highly integrated OTDR, Event maps, Stable Light source, Optical power meter, Visual fault locator, Cable sequence proofreading, Cable length measurement and Lighting functions.
