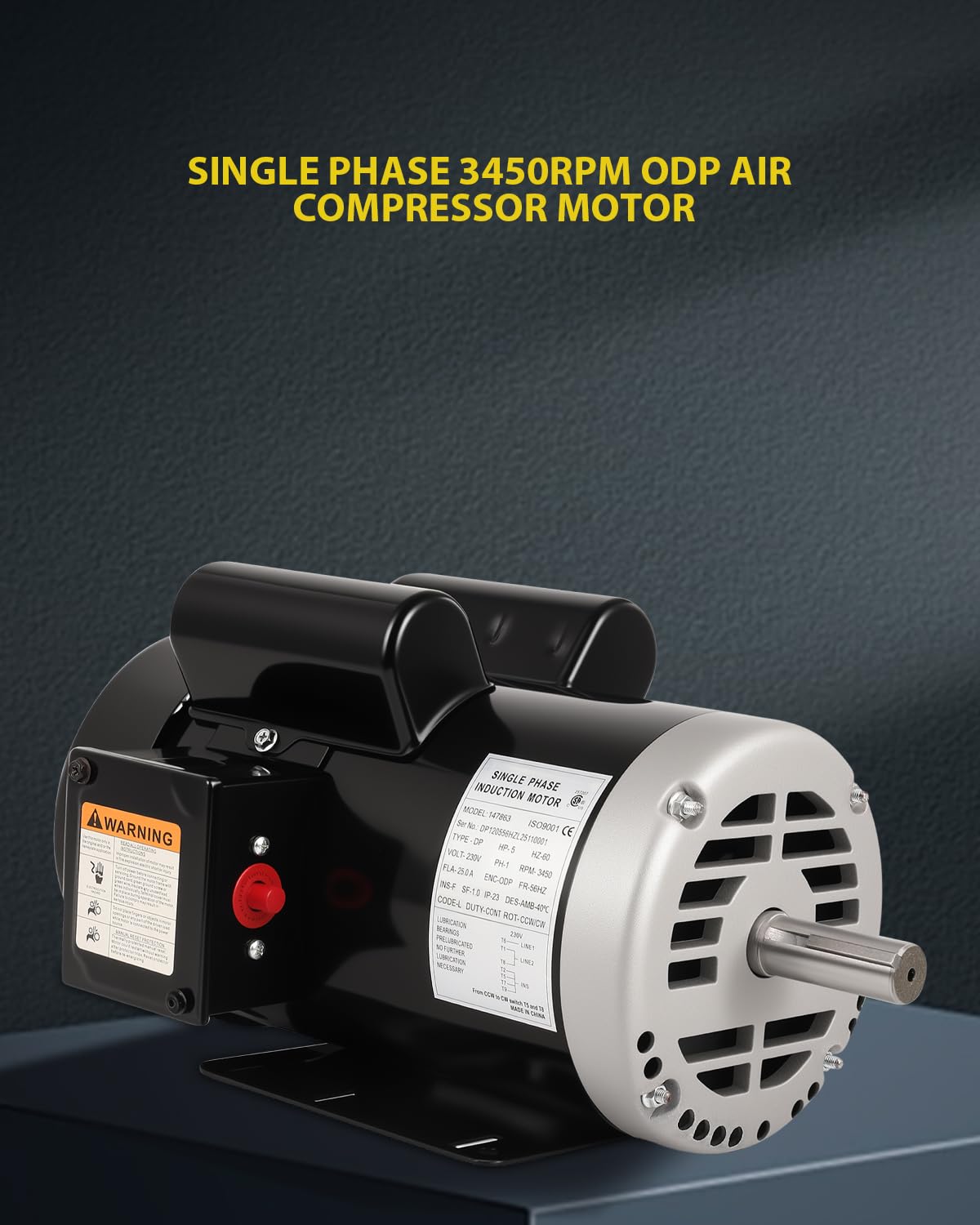

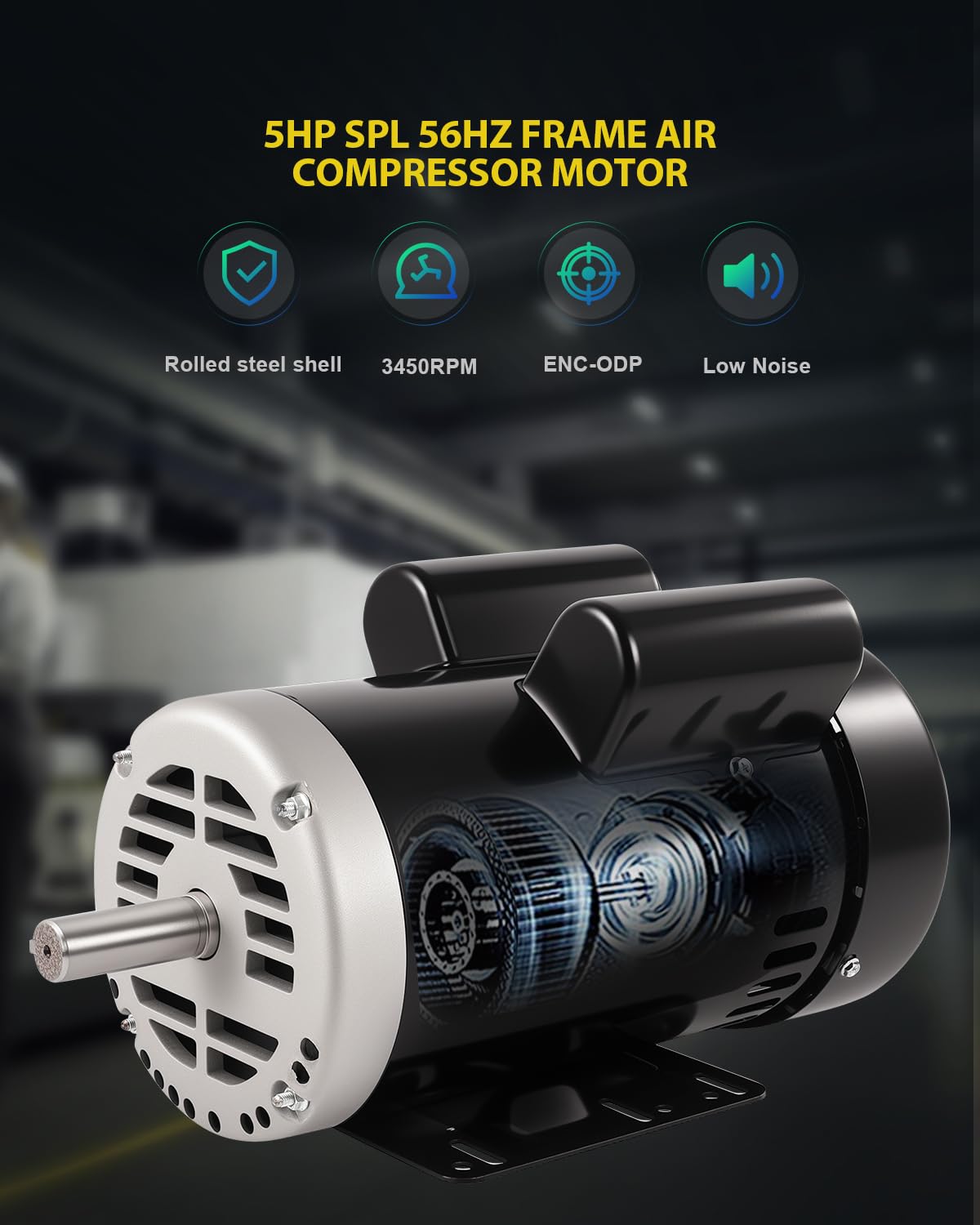

5HP Air Compressor Motor Electric Motor 3450 RPM 230V Single Phase 56HZ Frame 7/8" Keyed Shaft CCW/CW
Product details
| Management number | 213652007 | Release Date | 2026/04/12 | List Price | $98.80 | Model Number | 213652007 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ⏳Air Compressor Motor: HP - 5, POLE - 2, FRAME - 56HZ, ENC - ODP, IP - 23,Open drip proof is better used in the environment that are relatively clean and dry environments.
- ⏳Housing material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.
- ⏳Detailed Parameters: HZ: 60Hz, Voltage: 230V, AMP: 25A, RPM: 3450, INS - F, Rotation - CW/CCW, Shaft diameter - 7/8", Shaft length - 2.25".
- ⏳High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks.
- ⏳Protector and Application: Equip with protector, designed for air compressor tax purposes. Please purchase the motor according to the specific requirements of the compressor.
| Model | Air Compressor Motor |
|---|---|
| Speed | 3450 RPM |
| Voltage | 230 Volts (AC) |
| Brand Name | Cuilvu |
| Horsepower | 5 Horsepower |
| Item Weight | 41 Pounds |
| Manufacturer | Cuilvu |
