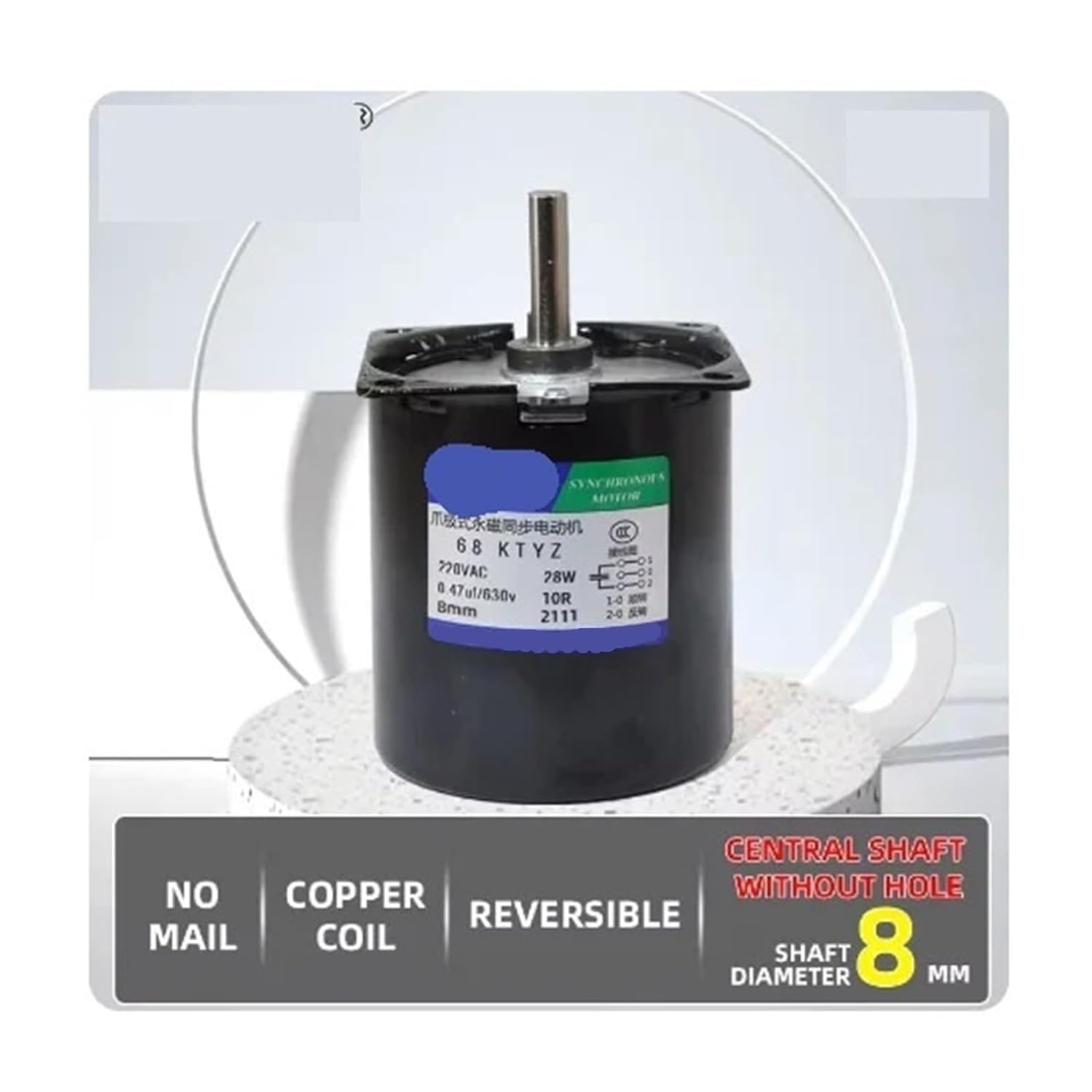

100KG 28W 68KTYZ 220 AC Permanent Magnet Synchronous Motor with Bracket CW/CCW Metal Geared Slow Speed 1 to 110RPM

28W 68KTYZ Permanent Magnet Synchronous Motor Central Shaft 8mm Without Hole Forward Reverse Controllable AC Electric Motor 220V1. 68KTYZ Mini 220V AC Permanent Magnet Synchronous Motor2. The motor has the following voltage options: AC 220V3. AC 220V ; You can choose the no load speed have : 2.5rpm ; 5rpm ; 10rpm ; 15rpm ; 20rpm ; 30rpm ; 50rpm ; 60rpm ; 80rpm ; 110rpmRated torque between 3 To 100 KGF.CM; Select a no load speed in AC 220V, there will be corresponding rated torque,please refer to the parameter table below.4. The direction of rotation of the motor : CW and CCW; Support Reversed ; But the speed of this motor is fixed, the speed cannot be adjusted.5. Power : 28W6. Working temperature : The lowest temperature is -10 degrees to the highest temperature of 70 degrees 7. Outstanding features of the motor: The motor is a permanent magnet synchronous motor ; Internal is metal gears ;Low speed and low noise 30dB ; Support continuous operation for 24 hours ; Speed adjustment is not supported ;5,000 hours of life under normal use ; Use materials ; Small size ; High torque ; Low power consumption ; Light weight and easy to useFor the torque, size, product picture or other informations of the motor, please see the following information.ThanksModel Number : 68KTYZType : Synchronous MotorEfficiency : IE 2AC Voltage : 220V

• YCCMSM13 100KG 28W 68KTYZ 220 AC Permanent Magnet Synchronous Motor with Bracket CW/CCW Metal Geared Slow Speed 1 to 110RPM
