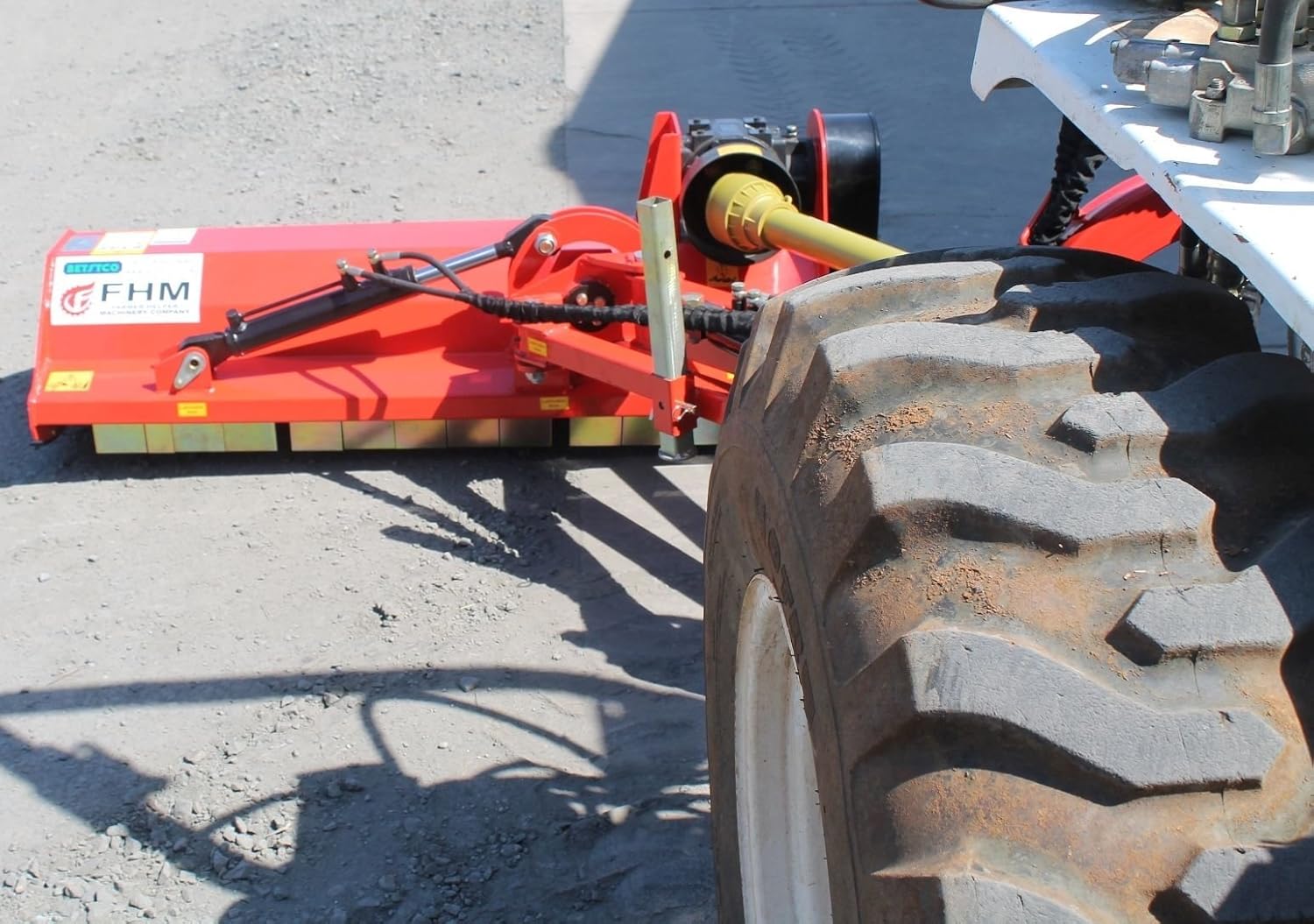

Farmer Helper 57" Ditch Bank Flail Mower Cat.I3pt 40hp~65hp (FH-AGL145) w/Hammer Blades Requires a Tractor. Not a standalone Unit.

Verger flail mulchers are Super Heavy Duty Mowers designed with heavy cutting blades that can chop heavy brush including grasses, debris, sticks, vines, branches, and other wooded materials up to 2” in diameter. The mower head is attached to a hydraulic arm allowing you to swing the mulcher beyond your tractors wheels. The head may be pivoted hydraulically up to 90 degrees for hedge or hillside work or down 60 degrees for ditch or bank work. Connect it to our optional 4-way hydraulic control valve with a hydraulic float and the mulcher will follow the contours of the terrain.A flail mower doesn’t throw grass, instead it cuts finely and leaves the cuttings on the ground where it was cut making it an excellent choice for those places where you could cause damage by throwing debris. Highway mowing and park maintenance often use flail mowers because they are less likely to throw objects during cutting. Overall Width: The AGL 145 has a overall width of 63″. Cutting Width: The AGL 145 has a tilling width of 57″. Weight: The AGL 145 has a weight 726 lbs. HP Requirements at PTO: The AGL 145 requires 25 - 65 PTO horsepower depending on the size of the unit. Cutting Height: The AGL series has a 0" - 6" Adjustable to meet various height requirements Housing Material Thickness: The AGL series has a housing of 3mm thick. Side Plate Thickness: The AGL series has a side plate thickness of 1/4". Blade Type: The AGL series uses standard hammer blade. Each hammer blade weighs 14 oz made of cast steel (cast steel is much more durable than cast iron). Use the hammer blades for clearing saplings (2″ diameter or less). Number of Blades: The AGL 125 uses 24 hammer blades. Precision Blade Overlap: On the AGL series the blades are staggered precisely with no gap in the mowing area. Blade overlap is important to achieve an even cutting result. Rotor Rotation - Reverse: The rotor spins in the opposite direction as the wheels of the tractor when traveling forward. This allows the blades to shear the material as it is folded forward by the mowers. The material is then thrown up and over the rotor. Rotor Tube Diameter: 4 1/2"- Heavy duty steel tubing for long life. Balanced Rotor Tube: The rotor tube is balanced to reduce vibration and ensures that the mower runs smooth, and reduces wear on the bearings. Hitch Type: Category 1 standard 3-point. Pivot Offset From Center Mount: This feature allows for offset from center to the right of the tractor. This feature is helpful for mowing around fences, buildings; walkways etc. From the center of the PTO the mower extends 53". Hydraulic Offset: The hydraulic cylinder permits the carrier frame to be moved under your command. This permits you to control the cutting position of the mower. Designed so that you can get around rows, trees, fence line, or whatever else is in your path. This is connected to a Remote Hydraulic designed to power the cylinder (also known as 2-way valve) or the rear remote on your tractor design to power the cylinder. Hydraulic Requirements: Hydraulic source must be constant flow for powering Control Valve. We recommend use of Front Loader Style Control Valve with Float Option. Float spool connected to the vertical pivoting cylinder will allow mower to float and naturally follow the ground contour. Drive Belts: The AGL series uses 3 belts. Gearbox Rating: Up to 65 hp. Heavy duty proven oil bath gearbox for long life. Driveline / PTO Shaft: Shear Bolt PTO Shaft for Standard 1-3/8” 6-Spline PTO Finish: Baked on powder coat, powder coat is superior to paint. FLOAT AND NON-FLOAT CONTROLLER DESCRIPTION: The Float controller serves two functions. First, if your tractor has only one remote hydraulic port (2 hoses) you can use the float control as a splitter. 4 hoses from the machine plug into the controller and the controller is powered by the single port from your tractor. You can mount the control within reach of the tractor’s driver seat. The other function of this controller is you can plug the tilt cylinder into the float port and the mower will follow the contour of uneven ground. Float controller can do the splitter function and float function. The non-float controller can only be used for the splitter function.

• Standard 3-Pt Category I Hitch Mount
• Multiple Drive Belts Assure Power to the Blades
