DDSM210 Direct Drive Servo Motor, Low Speed & High Torque, Low Noise, All-in-One Design, Hub Motor, Suitable for RC Car Robot DIY (DDSM210)

DDSM210 Direct Drive Servo Motor, Low Speed & High Torque, Low Noise, All-In-One Design, Hub Motor, Suitable For RC Car Robot DIY Features At A Glance ● Ultra low noise ● High precision and zero-backlash ● Fast response, direct drive without delay ● Integrated motor and driver, compact structure and high integration ● Supports UART communication, for obtaining motor feedback information such as position, speed, current, error code, etc ● With Hall position detection, over-current protection, etc. ● Supports electric brake ● No drive mechanical friction, drive efficiency close to 99.99% Specifications No-load speed: 210±11rpm Operating temperature: -25~45℃ No-load current: 0.15A Total weight: 216g Rated speed: 98rpm Encoder resolution: 12bit Rated torque: 0.25Nm Rated current: 1.1A Locked-rotor torque: 0.85Nm Noise level: ≦40dB(A) Torque constant: 0.23Nm/A Input voltage: 9 ~ 28VDC Locked-rotor current: ≦3.8A Speed constant: 14rpm/V PACKAGE CONTENT 1. DDSM210 x1

• Adopts Advanced Direct Drive Technology, Removes The Reducer In The Traditional Drive Solution. Say Goodbye To The Shortcomings Of Expensive, Noisy, Inefficient And Bulky
• Based On The Integrated Development Concept, DDSM210 Is A High-Reliability Permanent Magnet Synchronous Motor (PMSM) Integrating Outer Rotor Brushless Motor, Encoder And Servo

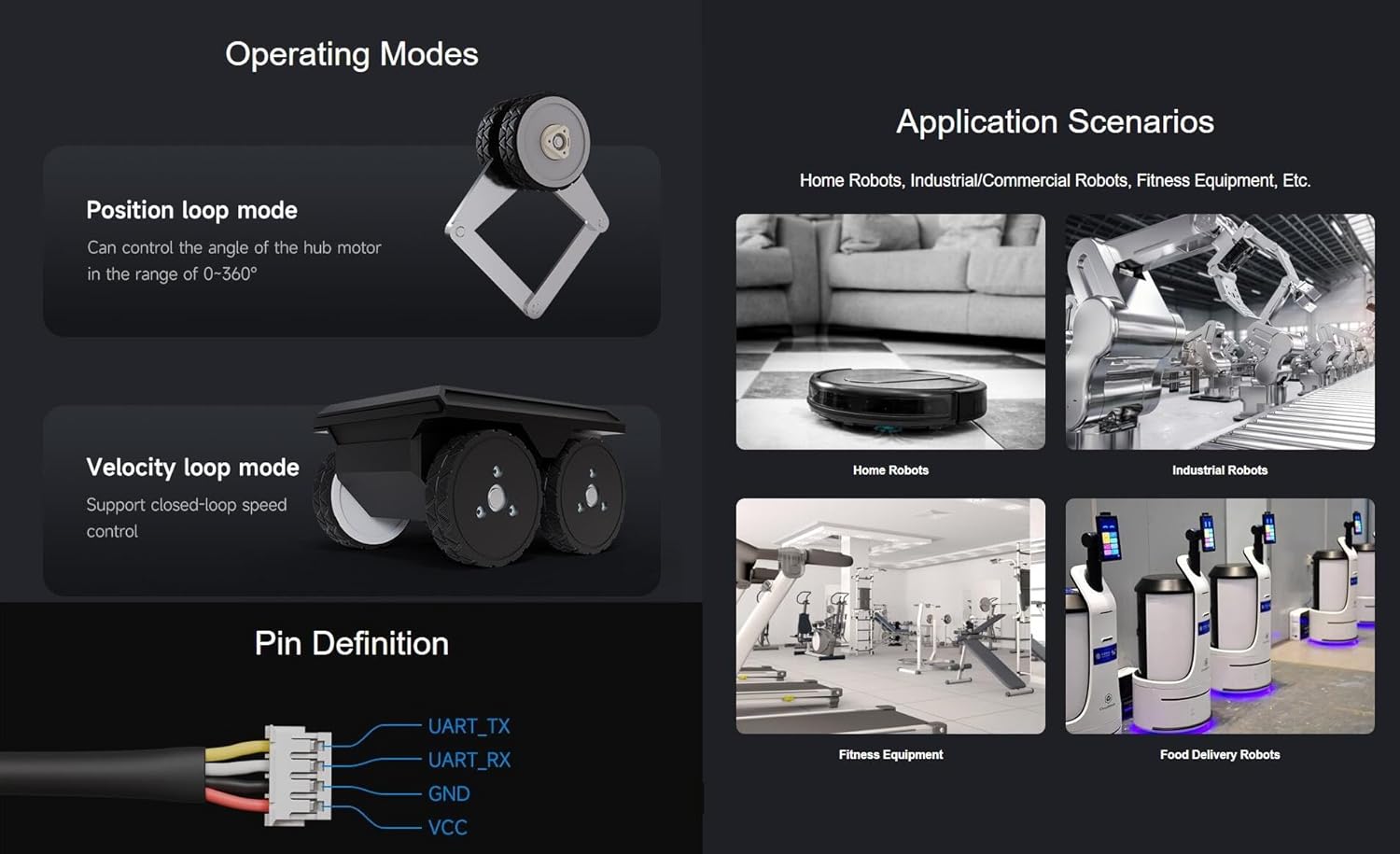

• Supports UART Communication. Only 1-Ch UART Bus Is Required To Control Multiple Direct Drive Servo. Motors At The Same Time. The DDSM210 Speed Is As Low As 1 RPM And Its Torque Up To 0.85Nm.
• Closed-Loop Control, Multiple Feedback. You Can Get The Motor Feedback Information Such As Temperature, Position, Velocity, Current, Etc. By Communication

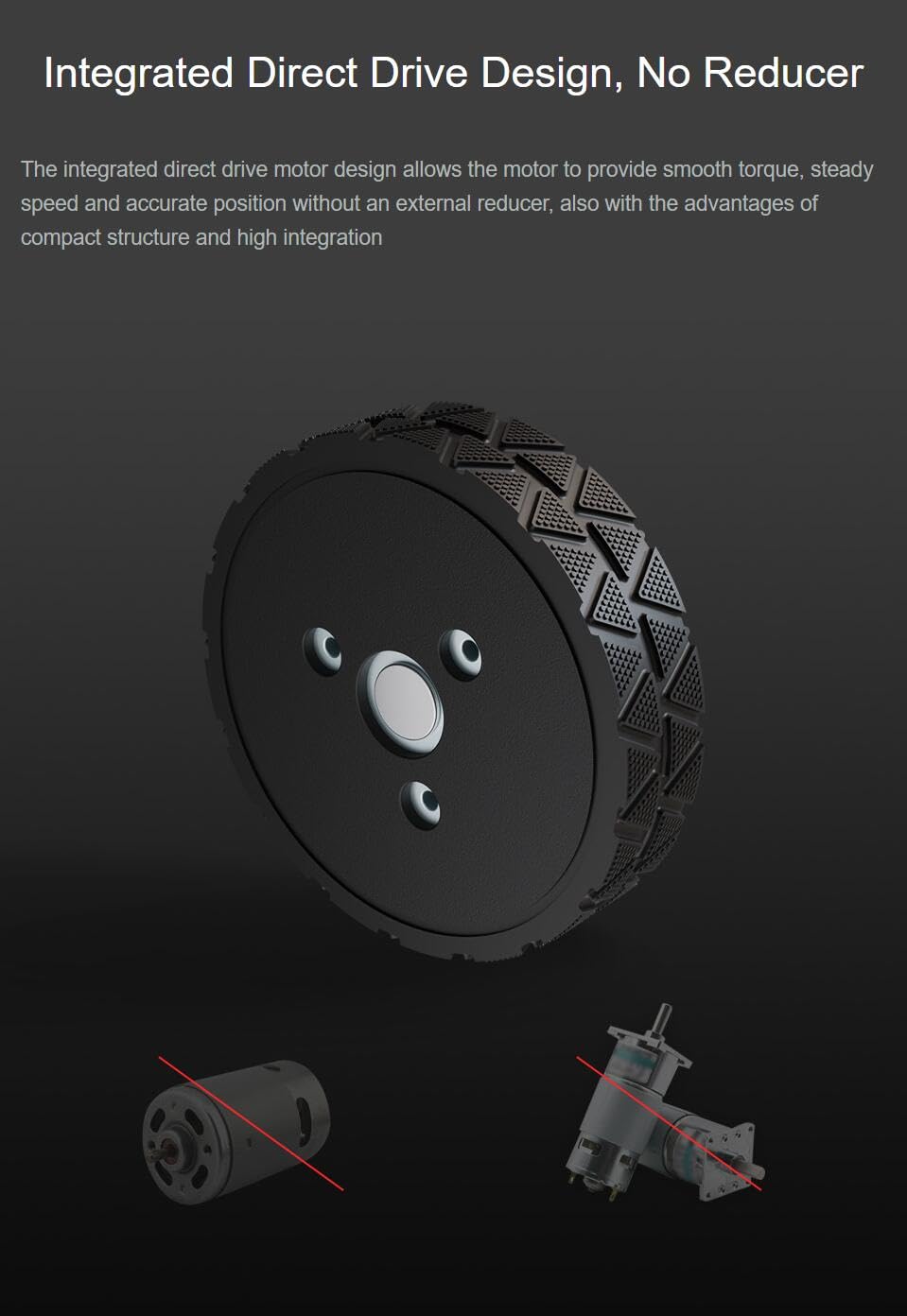

• The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration
