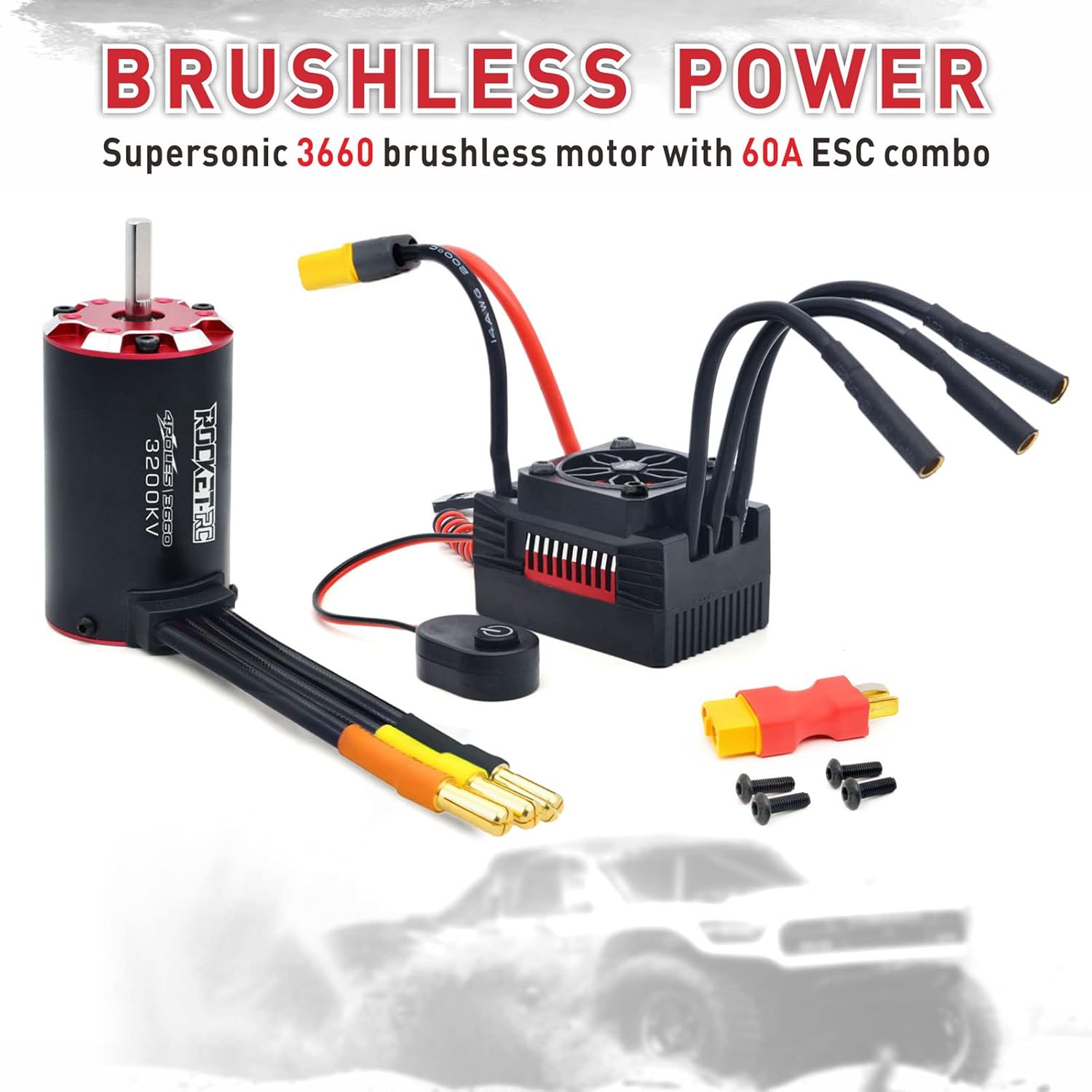

Surpass Hobby RC Brushless Motor,Rocket V2 Supersonic 3660 3200KV 4 Pole Brushless Motor Set with 60A ESC for 1/10 RC Car Upgrade Parts

Specification:Item Type: 3660 Brushless MotorMaterial: Aluminum Alloy + Copper + PlasticColor: BlackMotor Model: 3660KV (RPM/Volt): 3200KVWattage: 1200WMaximum Voltage: 15VMaximum Current: 80AMaximum Speed: 50000No Load Current: 3.8ANumber of Motor Poles: 4Internal Resistance (Ω): 0.0075Motor Length: Approx. 60mm / 2.36in (Without Shaft)Motor Diameter: Approx. 36mm / 1.4inShaft Diameter: Approx. 5mm / 0.196inShaft Length: Approx. 17mm / 0.66inGold Plated Plug: Approx. 4.0mm / 0.16in60A ESC:Continuous Current: 60AInstantaneous Current: 360AMotor Type: Non Inductive Brushless MotorInternal Resistance: 0.0007ohmBattery: on road :2s Lipo or 6cells NiMHoff -road/buggy/Monster : 2sLipo or 6 cells NiMHBEC Output: 5.8V/5V (Switching Mode)Product Size: Approx. 50x35x34mm / 2.0x1.38x1.34inPlug Type: XT60 to T Plug ConnectorApplication: for 1/10 Remote Control Car (eg: for Tamiya / for Traxxas)Package List:1 x 3660 Brushless Motor1 x 60A ESC1 x XT60 to T Plug Connector4 x Screw2 x ManualNote:1. Due to manual measurement, please allow an error of 13mm. Thanks!2. The monitor calibration is inconsistent, the color of the item shown in the photo may be slightly different from the actual object3. Please unload the cooling fan water before using this ESC; clean and wipe dry as soon as possible after use to prevent the connector from rusting.4.Genuine Surpass Hobyy RC products,exquisite workmanship & durable.buy with confidence,perfect after-sales service, manufacturer directly supply products.Any question for the product, pls not hesitated to contact us.

• 【60A ESC and 1/10 RC Brushless Motor Combo】This waterproof and dustproof 60A brushless ESC with XT60 to T-plug connector makes it easier for you to install, Fit for 1/10 RC car.RC Motor adopts precision IP65 waterproof and dustproof design,maximum power conversion, long-lasting performance.
• 【Sensored and Removable Structure Design】The brushless motor has built in temperature sensor and interface, which can protect the motor from overheating with 60A ESC.The removable structure design is convenient for cleaning and maintenance, which can effectively extend the service life of the motor and improve work efficiency.
• 【Easy to Program and Clean】Built-in switch mode BEC 5.8V/5A for high torque and high voltage servos, with strong current resistance, easy to program, and compatible with pocket program cards, It adopts detachable structure design for easy cleaning and maintenance.
• 【Profession】Pole-4 rotor design, 5.00mm shaft diameter,with strong torque and stable output power, High hardness aluminum CNC case, high temperature resistant copper wires , 0.2mm stator.ultra-durable sealed bearings, super high current sillicon wires, low friction, low noise, durable.
• 【Premium Material】High balance explosion-proof rotor, high accuracy and high speed, dynamic balance control within 10mg. excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance.
