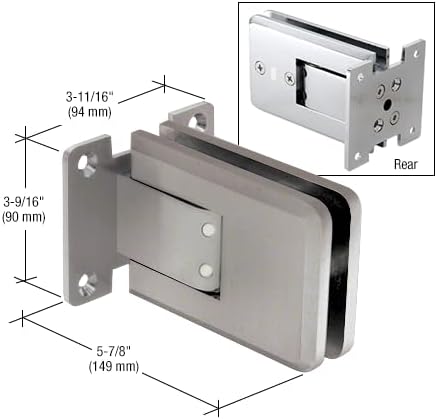

CRL Brushed Nickel Atlas Series All Glass Door Hinge

Self-Centering Hinge For 5/16" to 1/2" (8 to 12 mm) Tempered Glass Easy Closed Position Adjustment for Double Door or Inline Panel Applications Ideal for Large Interior Doors Hold Open at 90 Degrees CRL Atlas Series 'All-Glass' Door Hinges are ideal for new or retrofit interior 'all-glass' doors where a floor or overhead closer in not an option. This innovative Hinge gives you the better of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors weighing up to 140 pounds (63.5 kilograms) with a maximum width of 39 inches (1000 millimeters). Do not exceed two hinges per door. Color: Brushed Nickel Additional Product Information: The self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the CRL Atlas Series ‘All-Glass’ Door Hinge will hold open at 90 degrees. These Hinges offer easy fine-tune closed position adjustment, making installation of double doors or inline panels simple. The solid brass construction and stainless steel components make the CRL Atlas Series ‘All-Glass’ Door Hinge a natural for sauna or steam room applications, or any location that may involve excess moisture. The notch and hole design of the glass preparation makes for a safe and secure installation, eliminating the worry over hanging large doors on jamb-mounted hardware. The large, wide mounting plate helps distribute the load, but as always, adequate structure is required wherever you mount these Hinges. Important Note: Cut-out dimensions for CRL hinges may not match those of other brands.

• Self-Centering Hinge
• For 5/16" to 1/2" (8 to 12 mm) Tempered Glass
• Easy Closed Position Adjustment for Double Door or Inline Panel Applications
• Ideal for Large Interior Doors
• Hold Open at 90 Degrees
• Color: Brushed Nickel
• Minimum Order Quantity : 1
