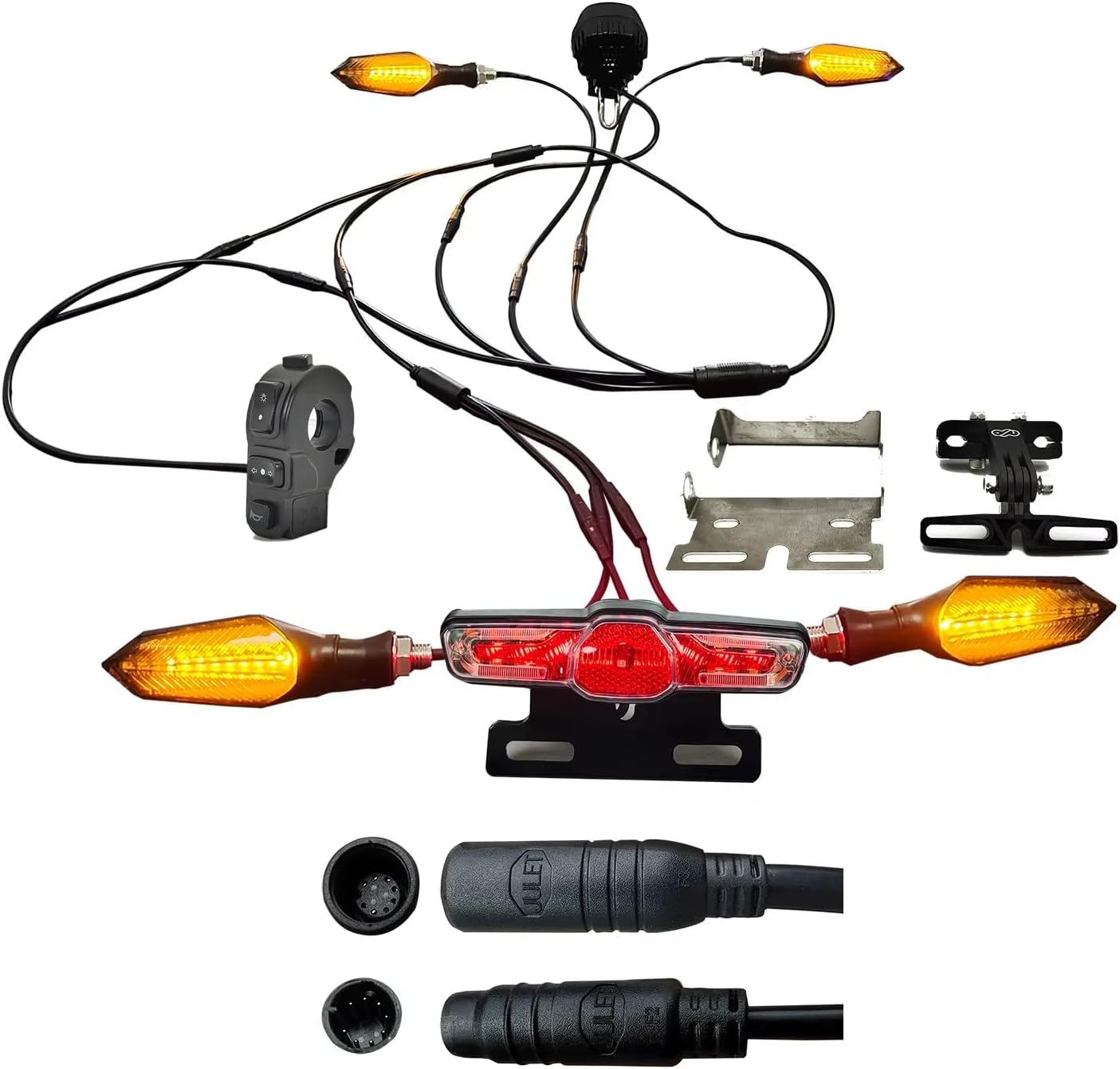

36V 48V 52V 60V 72V Ebike 05X Lights Kit Headlight Taillight Horn Turn Signal Brake Light for DIY
Product details
| Management number | 216659301 | Release Date | 2026/04/19 | List Price | $35.60 | Model Number | 216659301 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Ebike Light Kit 36V 48V 52V 60V 72V Headlights horn turn signal brake lights For JULET 811 911 813 913 DIY Please carefully check the difference between each version and the version you want before purchasing, if you do not understand, please contact us to confirm, we will provide technical support! No. : 30-2T4-10C/19 Applicable voltage: 36V/48V/60V/72V Total net weight: 580g Packing size: 14*23*11CM Packing weight: 0.8kg Model: L-030 (Aluminum alloy) Applicable voltage: 36V/48V/60V/72V Low light current: 48V/190mA, 36V/250mA Power: 6W Function: low light, speaker Light intensity: 650 LM Speaker volume: 75-100 dB Product shape (50*62*73) Switch parameters: Code: PT2402 WUXING 336/2 Waterproof IP4 Size: L 26mm W 54mm H 54mm Weight: 41g Waterproof: IPX4 Material: PA6+20GF TPR Wiring: 6Pins Current: 0.5A Operating temperature: -20℃ ~ 60℃ Type: taillight Model: WD-10C Applicable voltage: 36V/48V/60V/72V Rear lamp current: 48V/23mA, 36V/17mA Power: 1.1W Function: rear light, brake light Light intensity: 30 LM Outgoing cable: four-core cable Turn signal lamp Applicable voltage: 36V/48V/60V/72V Power: 3W Light source color: Yellow & Blue Features: Cool flowing lights
- COMPATIBILITY: Works with various e-bike voltages including 36V, 48V, 52V, 60V, and 72V systems, perfect for DIY builds and Bafang BBS01/02/HD motors
- COMPLETE KIT: Includes bright LED headlight, taillight with brake light function, handlebar-mounted horn, and turn signal indicators for enhanced visibility
- SAFETY FEATURES: Integrated brake light activates automatically when slowing down, while turn signals provide clear indication of turning direction
- EASY INSTALLATION: Comes with all necessary mounting hardware and wiring connectors for straightforward DIY installation on most e-bike frames
- WEATHER RESISTANT: Durable construction with sealed electronics to withstand various riding conditions and regular outdoor use
| Color | For JULET 811 |
|---|---|
| Brand Name | CHAOZHU |
| Brightness | 650 lumen |
| Manufacturer | CHAOZHU |
| Model Number | 36V 48V 52V 60V 72V Lights Kit |
| Power Source | Battery Powered |
| Material Type | Aluminum |
| Mounting Type | Frame Mount |
| Auto Part Position | Front, Rear |
| Number of settings | 1 |
| Included Components | Headlight Taillight Horn Turn Signal Brake Light |
| Light Output Maximum | 650 Lumens |
| Warranty Description | 1 |
| Water Resistance Level | Waterproof |
| Manufacturer Part Number | 36V 48V 52V 60V 72V |
