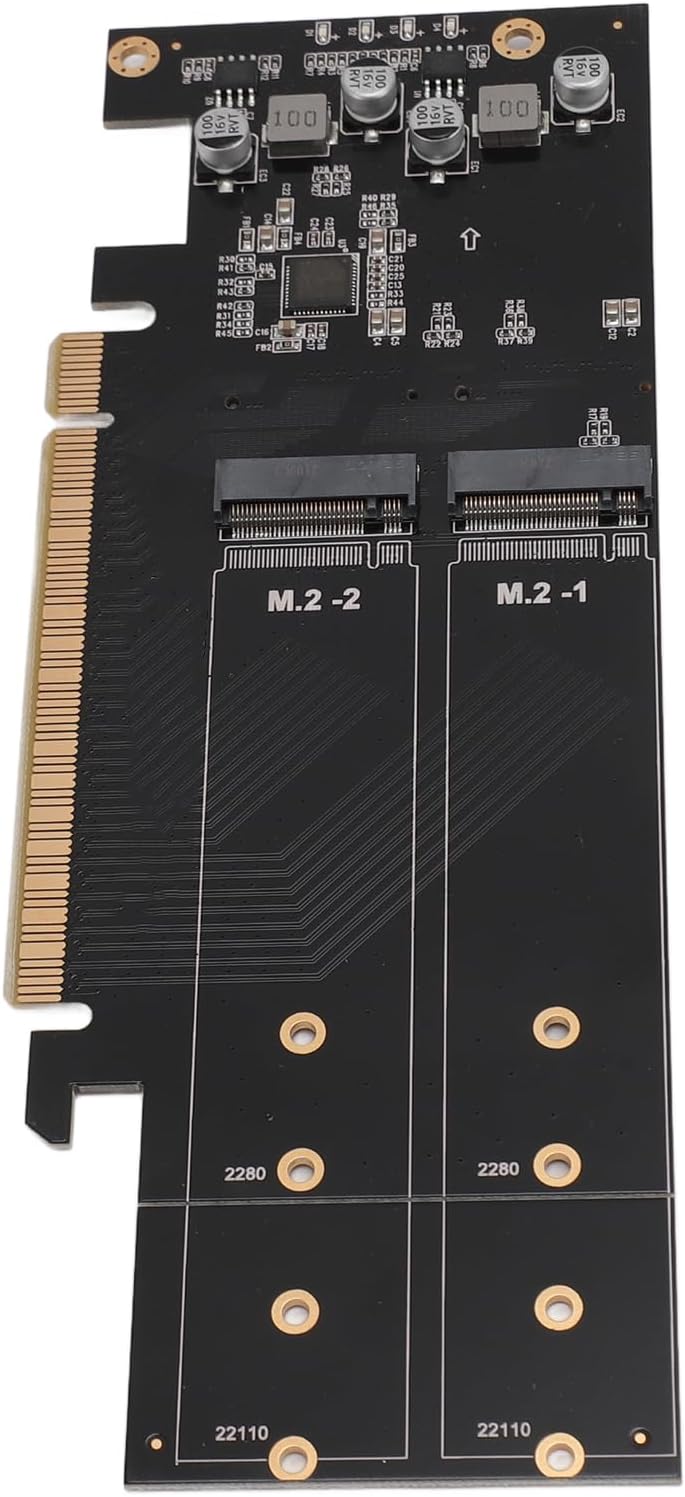

Zyyini Quad M.2 NVMe to PCIe 4.0 X16 Adapter, 4 Port High Speed 4x32Gbps M Key SSD Soft RAID Card PCIE 4.0 X16 Adapter for M.2 NVMe 2230 2242 2260 2280 22110 SSD, for 8 10

Specification:Item Type: Quad M.2 NVMe to PCIe 4.0 X16 AdapterMaterial: PCBModel: PA04 RTKSupported Hard Drives: M.2 NVMe Protocol SSD M.2 PCIe DevicesData Transfer Speed: 4x32GbpsSupported: 4 NVMe PCIe Protocol SSDSolid State Drive Size: M.2 NVMe 2230 2242 2260 2280 22110 SSDPrompt: for 8 10 Systems Come with Built In Drivers, for 10 Can Achieve Software RAID (Other Systems Need to Install Drivers)How to Use:Install and use.Package List:1 x Adapter Card2 x Baffle7 x Screw4 x Nut1 x Screwdriver

• Quad M.2 NVMe to PCIe 4.0 X16 Adapter: By installing 4 M.2 NVMe SSDs (supports 22110 2280 2260 2242 2230 M.2 NVMe SSDs) on this PCIe 4.0 X16 adapter, your computer will be able to access up to 4 M.2 NVMe SSDs simultaneously.
• Hardware : for 8 10 system side has its own driver, for 10 can realize soft RAID (other systems need to install the driver). Support for for soft RAID, does not support for OS X Pro 5.1 (Note: To set up RAID on CPU for (for VROC), you need to purchase a license)
• Cautions: Since this adapter does not support for PCIe Bifurcation, it requires a motherboard that supports for PCIe Bifurcation. Otherwise, only the NVMe 1 port can recognize NVMe SSDs. Please check the PCIe Expansion Slot section of the motherboard manual on the motherboard manufacturer's website before purchasing.
• High Speed Transfer : 4Gx32Gbps full speed , solid PCIE X16 interface, support PCIE3.0 4.0 high speed transfer protocol, CPU and motherboard PCIe slots and PCIe M.2 SSDs should have PCIe 4.0 function. (Note: PCIe 4.0 is not supported on for CPUs below 11th generation.)
• OS Compatibility: Plug and play, suitable for 11 10 8, for Linux, for OS X (Note: for 7 is not supported). New M.2 NVMe SSDs need to be initialized and formatted to be recognized by the computer host. Set the PCIe Bifurcation mode of the corresponding PCIe slot in BIOS, support X4X4X4X4X4 or for Hyper M.2 X16 mode.
