5Pcs 0.3 Meter Fiber Optic Patch Cord SC APC to SC APC, Simplex Single Mode Fiber Cable Jumper OS2 G652D 9/125μm, 1310nm/1550nm LSZH 3.0mm
Product details
| Management number | 217005454 | Release Date | 2026/04/19 | List Price | $9.20 | Model Number | 217005454 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

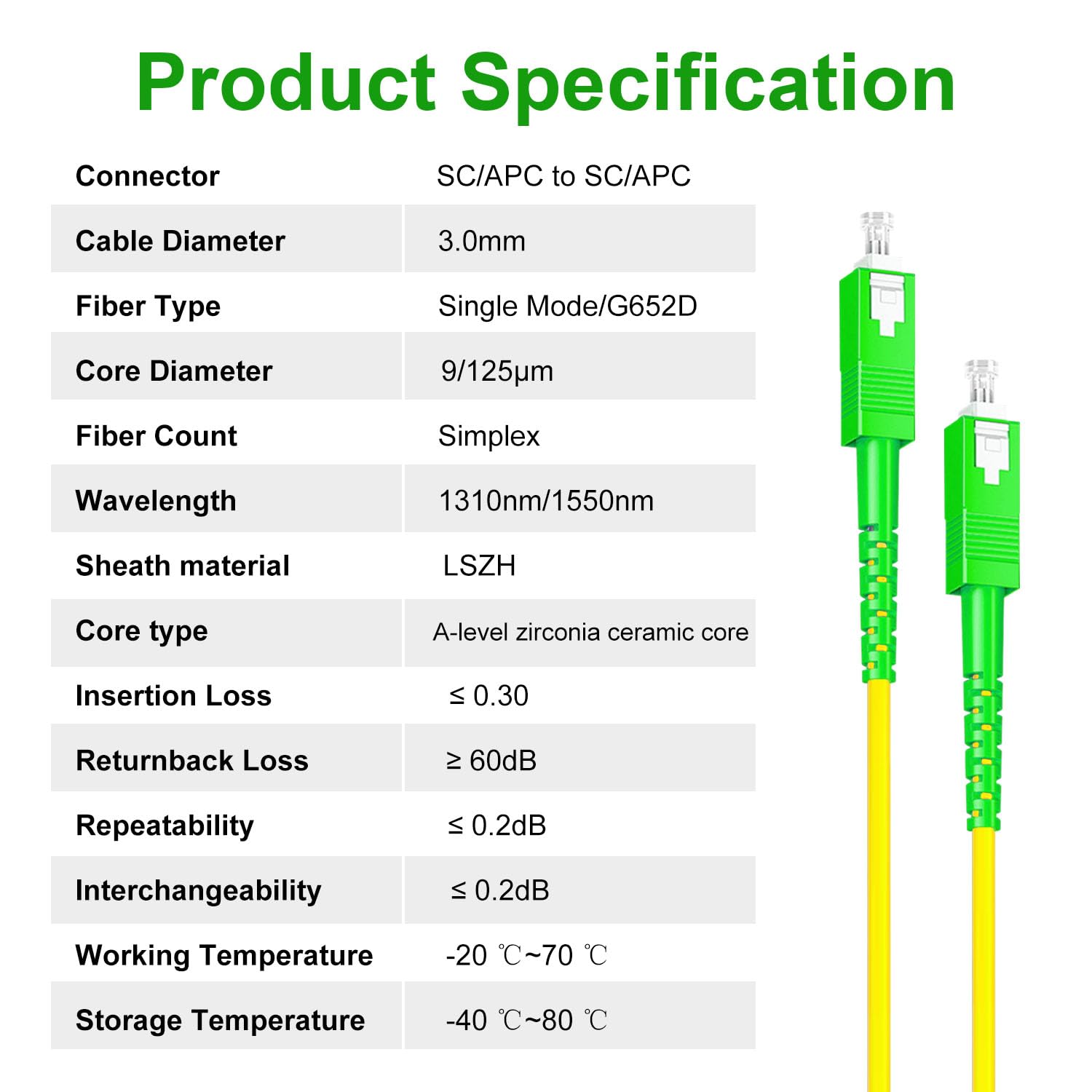

- 【Main Parameters】5Pcs 0.3 Meter (0.98ft) SC APC to SC APC Single Mode Simplex OS2 Fiber Optic Patch Cord，9/125 μm G652D fiber core, which supports 1310nm/1550nm wavelength
- 【High Performance】The fiber patch cord ≤0.2dB repeatability and interchangeability, ≤0.3dB insertion loss, and ≥60dB return loss. The low insertion loss and high return loss ensure stable transmission. which can operates reliably in a temperature range of -20~70°C.
- 【3.0mm&LSZH Fiber Jacket 】The Fiber Optic Patch Cord is buffered to the specified size of 0.9mm with LSZH material, and a Reinforced yarn is used as a strength member to wrap the 0.9mm buffer layer. The 3.0mm external LSZH jacket is used to protect the internal structure. It is equipped with an A-level zirconia ceramic core, ensuring data transmission quality and providing good tensile performance and flame retardancy for the cable.
- 【OS2 9/125μm Fiber】Compared to traditional Fiber Optic Patch Cords, the 9/125μm OS2 bend-insensitive single-mode fiber optic patch cord has lower attenuation when bent or twisted, making installation and maintenance more efficient.
- 【Short type fiber cable cord 】Short type fiber patch cord can be used for equipment cabling in the same device rack, abvoiding cable messing, which can make fiber fault checking or fiber connection changing easier. Simplex short type fiber cable jumper can be used as loopback tester for device ring testing
- 【Wide Application】OS2 fiber optic patch cords are suitable for various network connections, including SFP optical modules, and are widely used in data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, and other scenarios.
| UPC | 768346617503 |
|---|---|
| Color | SC-SC/APC-Simplex |
| Model | SC-SC APC SX3.0-0.3M-5 |
| Brand Name | Lebrudos |
| Cable Type | Fiber Optic |
| Item Shape | Round |
| Unit Count | 4.9213 Feet |
| Item Weight | 3.2 ounces |
| Manufacturer | Lebrudos |
| Connector Type | Sc Simplex |
| Number of Items | 5 |
| Connector Gender | Male-to-Male |
| Compatible Devices | FTTH, Media Converter, PON |
| Data Transfer Rate | 5 Gigabits Per Second |
| Included Components | 5PCS Fiber Optical Cord |
| Indoor Outdoor Usage | Indoor |
| Connectivity Technology | SC |
| Recommended Uses For Product | Network and data communication |
| Other Special Features of the Product | Data Transfer |
