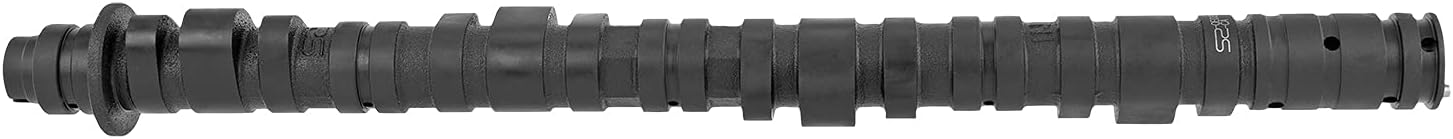

Skunk2 Racing 305-05-0225 Tuner Series Stage-2 Camshaft for Honda K20A2 Engines

Skunk2 Racing's "Tuner Stage 2" Camshafts are designed as a performance upgrade to lightly modified vehicles running the 3 Lobe VTEC K20A/ K20A2/ K20Z1/ K20Z3 and K24A2 engines or cylinder heads. These camshafts will outperform HOT factory cam swaps (mixing OEM cams) and Skunk2 Tuner Stage 1 camshafts from idle to redline with no loss in drivability. A great match for vehicles with intake manifold swaps, light cylinder head work, small changes in compression, intake, header, and exhaust or motors that have been turbo/supercharged and running up to 14 psi of boost. Tuner Stage 2's require a simple valve spring and retainer upgrade due to the additional lift, duration and increased RPM range. Ideal for hot street cars and road race cars.Our Tuner Stage 2's incorporate Skunk2 Racing's cutting-edge Fast Ramp and AMAX features, which are responsible for increasing overall performance, producing unmatched response from idle to redline. You can expect optimized mid-range and top-end horsepower/torque with peak power moved up the RPM band, producing a seamless VTEC crossover!Fast Ramp - The same technology used in Formula One racing, where seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valve-train longevity.AMAX - A Skunk2 design that simply maximizes the area under the lift curve but without compromising reliability or valve-train stability. Skunk2’s profiles feature more duration than competitors’ at lifts above 1mm, resulting in greater efficiency and more power.Independent tests have shown average gains to be in the neighborhood of +22-25 horsepower with larger gains in mid-range to upper RPM horsepower and torque! Tuner Stage 2 cams are an easy install but we highly recommend checking all critical clearances and degreeing for peak performance.

• For mild to highly modified Honda K20 / K24 Engines
• Fast Ramp & AMAX Technologies
• Up to 25 horsepower and 20 lb-ft torque gain
• RPM Range: 1,500 - 8,800 / VTEC Crossover - 5,500 to 6,500 RPM
• Intake - Lift: 13.58mm/ Duration 272° / Exhaust - Lift: 12.59mm/ Duration 276°
• Intake Centerline - Variable / Exhaust Centerline - 107°
• Valve Clearance (Intake / Exhaust) - .008” / .010”
• i-VTEC Settings - Small Lobe 35° Advance/ Big Lobe 40° to 30° Advance
• Required - Alpha Valve Springs (Upgrade to Pro Valve Springs Under Boost), Alpha Titanium Retainers, and Engine Management
