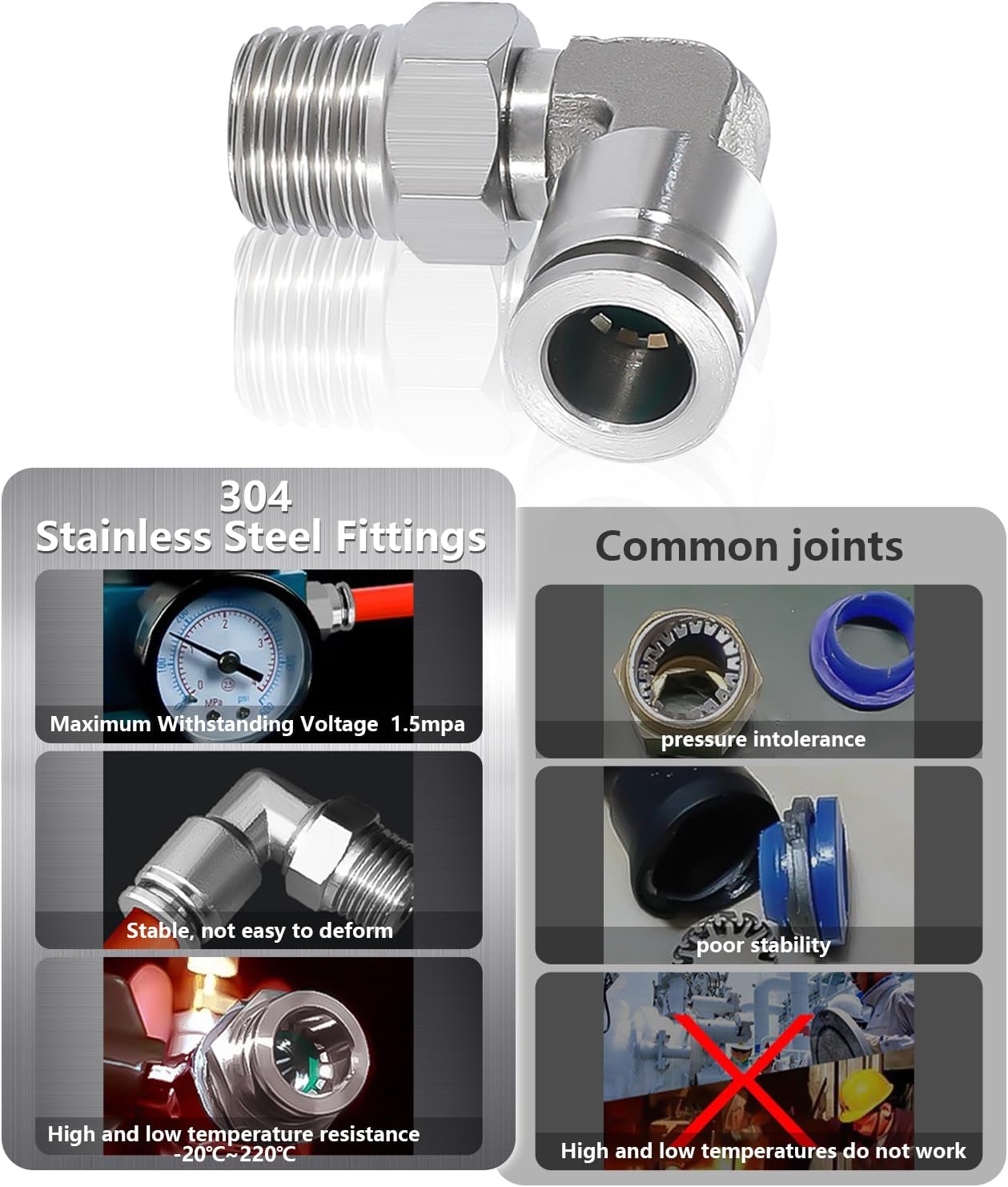

Eagles Push to Connect Air Fittings Elbow 6mm Tube OD x 1/4" NPT Male 90° Degree Adapter 304 Stainless Steel Male Elbow Air Union Fitting, Air Line Fittings Push Connectors, 2 Pack, PL6-02

Eagles 6mm Pneumatic Fitting Tubing Connector 304 Stainless Steel 90°Degree Elbow Push in Fitting Pneumatic Connectors, 6mm Tube OD x 1/4" NPT Thread Push to Connect Tube Fittings - 2 Pack Keys Words: 1. Resistance to high pressure/Corrosion resistance/Oxidation resistance/High temperature resistance 2. High precision processing/Nickel plating treatment 3. Rotate 360°, simple and dexterous, convenient installation. Not easy to leak, good sealing performance, long service life. Type: PL6-02 Push-to-Connect Fittings Elbow Quick Connect Fittings Material: 304 Stainless Steel Size: 6mm Tube OD x 1/4" NPT Thread Fluid Admitted: Air Vacuum Water (no freezing) Working Pressure: 0-3MPa | 0-432psi Applicable Tube: PU / PA / PE / PVC Working Temperature: -20-200°C | -4～392°F Shape: Male Elbow NOTE!! Please Make Sure: 1. The cutting surface of the pipe is vertical; 2. There is no scar on the outer circumference of the pipe; 3. The pipe is not oval. Installation Method: 1. After the pipe is cut off, remove the burr and insert one end of the pipe into the socket of the joint (must be inserted into the bottom) to achieve a firm connection and sealing effect. 2. After repeatedly pulling out the pipe. The worn part of the end should be cut off. 3. Continue to use after leveling. 4. When disassembling the pipe, use your thumb to press the connector ferrule in and gently pull out the pipe. 5. After installation, you just need to rotate the joint body to adjust the direction of the pipe. Package: 2 PCS × Push-to-Connect Fittings(Elbow) ☎Eagles - Your Professional Tool House 90-day best risk-free shopping guarantee! Eagles will guarantee product quality and after-sales service, and hope you will have a pleasant and satisfying shopping experience with us.

• Type - Push in fitting/Push to connect /Size: 6mm tube OD x 1/4" NPT Thread, Notice: NPT Thread Size is a Nominal Pipe Size, and it Does Not represent the actual diameter.
• Material - 304 Stainless Steel. Fluid Admitted:Air Vacuum Water (no freezing)
• Applicable Tube - PU/PA/PE/PVC ; Working Temperature -20-200°C | -4～392°F; Working Pressure 0-3MPa | 0-432psi
• Easy To Install - All the elbow air line fittings are designed with PTC (push-to-connect), remove old broken air lines and fittings, simply push the air line tube into the hole and replace with our air line repair kit.
• Application - Provide a manual inflation point to air spring suspension bags and other air ride components that use with 6mm OD air line tubing.
