5 Valve Manifold 316 Stainless Steel 5 Way High Pressure Manifold Gas Distributor for Pressure Gauges and Pressure Transmitters
Product details
| Management number | 220348292 | Release Date | 2026/05/03 | List Price | $50.00 | Model Number | 220348292 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- The Smart Alternative to Overpriced OEM 5-Valve Manifolds：Your differential pressure transmitter deserves a manifold that enables easy maintenance, online calibration, and zero leaks—without the inflated OEM price tag. VALVENTO delivers industrial-grade 316 stainless steel construction, full 6000 PSI pressure rating, and precision flange fit compatible with industry-standard differential pressure transmitters, at a fraction of the cost.
- ISO 9001 Certified & 100% Leak-Tested – Every 5-valve manifold undergoes individual leak testing before shipment to guarantee zero leaks and stable system pressure. Manufactured under strict ISO 9001 quality controls, it meets the rigorous demands of chemical, oil & gas, power, and pharmaceutical applications.
- Heavy-Duty 6000 PSIG Rating – Rated for 6,000 psig (414 bar) working pressure and temperatures from -65°F to 450°F (-54°C to 232°C) . Handles high-pressure fluids, steam, oils, and gases with ease—built for continuous industrial duty.
- 5-Valve Functionality for Easy Maintenance – Unlike 2-valve or 3-valve designs, this 5-valve manifold includes two block valves, one equalizing valve, and two vent valves. This allows you to isolate, equalize, and vent the transmitter for safe online calibration without shutting down the process. Essential for critical applications where downtime is not an option.
- 316 Stainless Steel – Built to Outlast – Forged from premium 316 stainless steel for superior corrosion resistance over 304 stainless or brass. Features a thickened valve stem that resists bending under high torque and a hardened valve tip that withstands thousands of cycles without wear.

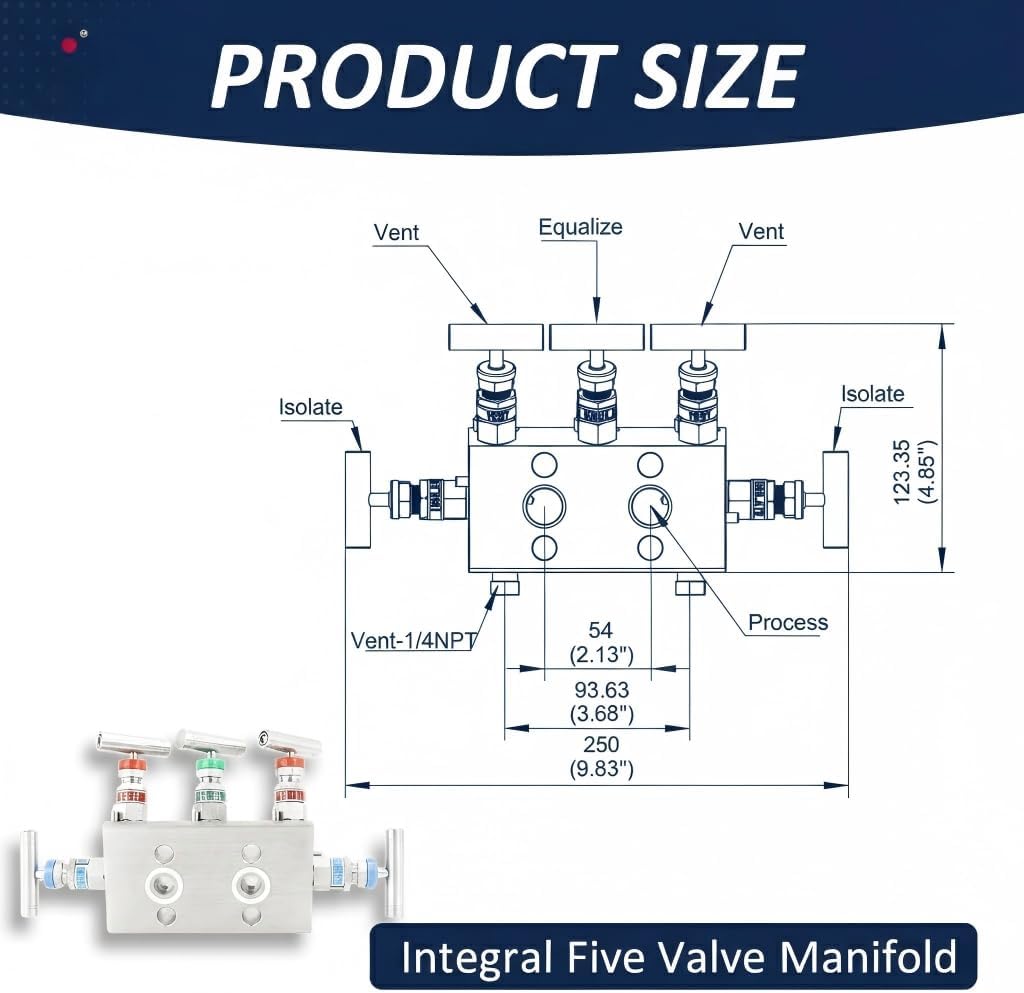

- Precision Flange Fit for Industry-Standard Transmitters – Equipped with 1/2" NPT Female process connections and a flange instrument connection (54 mm center-to-center) that directly mounts to most major differential pressure transmitters. Integrated 1/4" NPT Female vents with plugs allow safe, controlled pressure release.
- OEM Quality at a Fraction of the Price – At just $124.99, you get the same 316 stainless steel, same 6000 PSI pressure rating, and same precision flange fit as manifolds costing $500–600+. No compromise. No compatibility issues. Just smart engineering. Compare our build side-by-side with manifolds costing five times more—you'll see the VALVENTO advantage.
- Applications: Oil & gas platforms Chemical processing plants Pharmaceutical manufacturing Power generation facilities
- Refining operations：Industrial flow, level, and pressure measurement
- New Brand? Yes. But We Built This to Earn Your Trust：We know we have to prove ourselves—so we built every manifold with thicker stems, hardened tips, and premium materials that established brands often cut to save costs. Check our growing reviews. You'll see why VALVENTO is the intelligent alternative.
| Size | 1/2" NPT Female, Flange |
|---|---|
| Brand Name | VALVENTO |
| Unit Count | 1.0 Count |
| Thread Size | 1/2" NPT Female |
| Thread Type | NPT |
| Manufacturer | VALVENTO |
| Model Number | HJ5V-FNPT8-A-P-SS |
| Material Type | 316 Stainless Steel |
| Exterior Finish | Stainless Steel |
| Number of Ports | 5 |
| Maximum Pressure | 6000 Pound per Square Inch |
| Number of Pieces | 1 |
| Specification Met | ISO 9001 |
| Outlet Connection Size | 0.5 Inches |
| Manufacturer Part Number | HJ5V-FNPT8-A-P-SS |
| Smart Home Compatibility | Not Smart Home Compatible |
| Manufacturer Warranty Description | 1 Year Manufacture |
