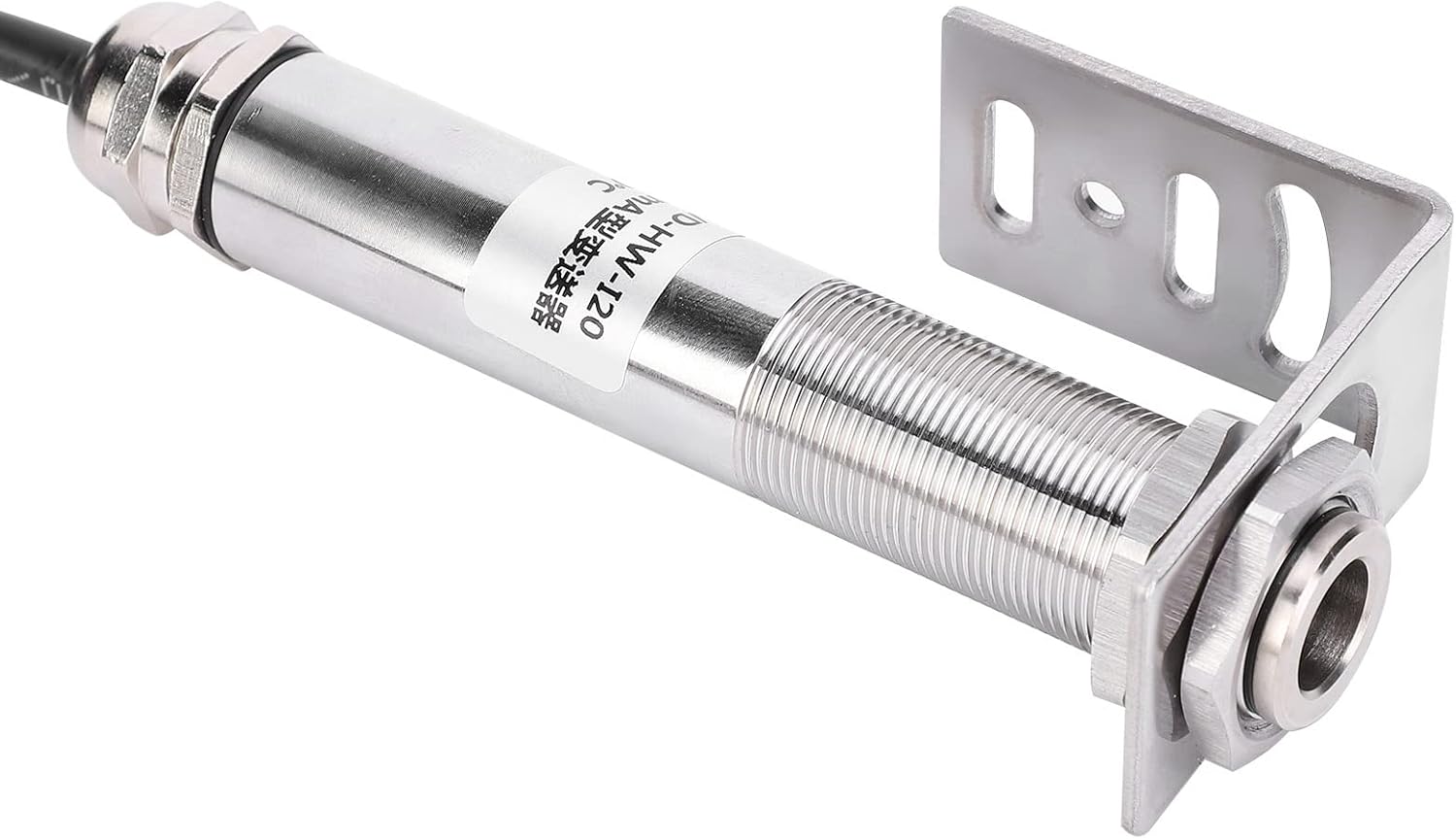

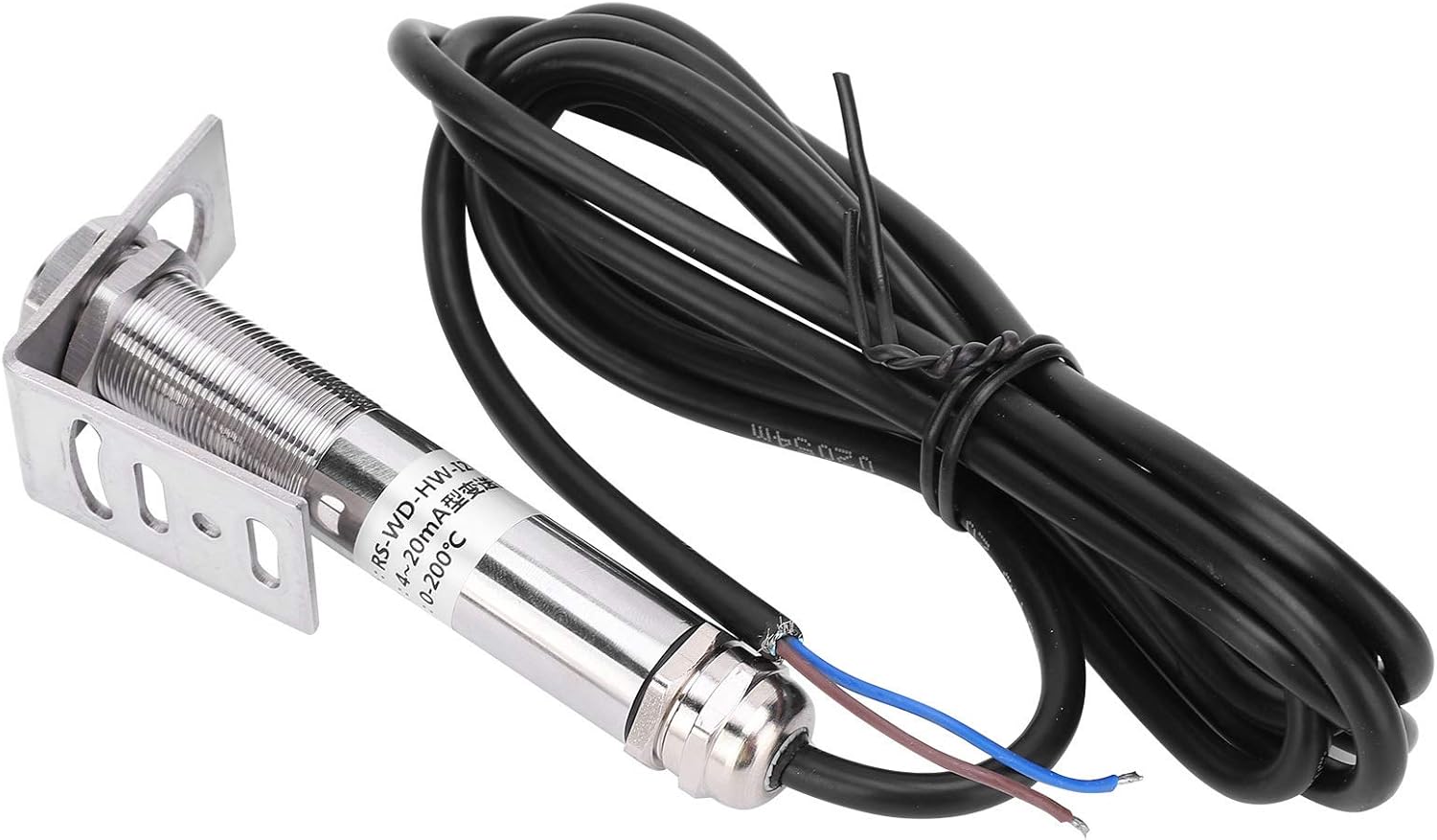

High Temperature NonContact Infrared Sensors 4-20mA Transmitter for MetalRubberChemical Measurement, ×1 Thread Installation, 20:1 Optical Resolution, (0~200℃)

1. [PRECISE TEMPERATURE READINGS] Achieve accurate measurements with a response time of 150ms and emissivity fixed at 0.95. 2. [ADAPTABLE POWER SUPPLY] Compatible with 10-30VDC power supply to support different power sources. 3. [OUTPUT SIGNAL INDICATOR] Clear signal output with 4-20mA range and corresponding line colors for easy monitoring. 4. [RELIABLE FUNCTIONALITY] Ensure Durability-Optimized with maximum current of 50mA and output signal range of 4-20mA+. 5. [COMPLETE PACKAGE] Includes 1 sensor and bracket for immediate use and installation. Spec: Item Type: Non‑Contact Infrared Temperature Sensors Material: Stainless steel Purpose: Measuring water temperature, oil temperature, food, human body, ceramics, asphalt, rubber, chemicals, coal, graphite, metal, glass, etc. DC Power Supply: 10-30VDC Maximum Current: 50mA Output Signal: 4-20mA Equipment Power Consumption: ≤0.5W Measurement Accuracy: ±1% of the measured value or ±1.5℃, whichever is the largest Spectrum Range: 8~14μm Response Time: 150ms (95%) Optical Resolution: 20: 1 Emissivity: 0.95 fixed Working Environment: 0~60℃; 10~95%RH (no condensation) Cable Length: Approx. 1.5meter / 4.9ft Size: Approx. 18mm / 0.7in 50mm / 2in 113mm / 4.4in Output type Line color Function 4-20mA Red +24V 4-20mA Blue signal output 4-20mA+ PackageList: 1 x Sensor 1 x Bracket Notice: 1.This series of infrared temperature sensors have poor temperature measurement effects on bright or polished metal objects.2.The metal surface needs to have a coating or oxide layer or paste high temperature tape to achieve accurate measurement results. 3.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• [PRECISE TEMPERATURE READINGS] Achieve accurate measurements with a response time of 150ms and emissivity fixed at 0.95.
• [ADAPTABLE POWER SUPPLY] Compatible with 10-30VDC power supply to support different power sources.
• [OUTPUT SIGNAL INDICATOR] Clear signal output with 4-20mA range and corresponding line colors for easy monitoring.
• [RELIABLE FUNCTIONALITY] Ensure Durability-Optimized with maximum current of 50mA and output signal range of 4-20mA+.
• [COMPLETE PACKAGE] Includes 1 sensor and bracket for immediate use and installation.
