| Management number | 220395300 | Release Date | 2026/05/03 | List Price | $137.86 | Model Number | 220395300 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

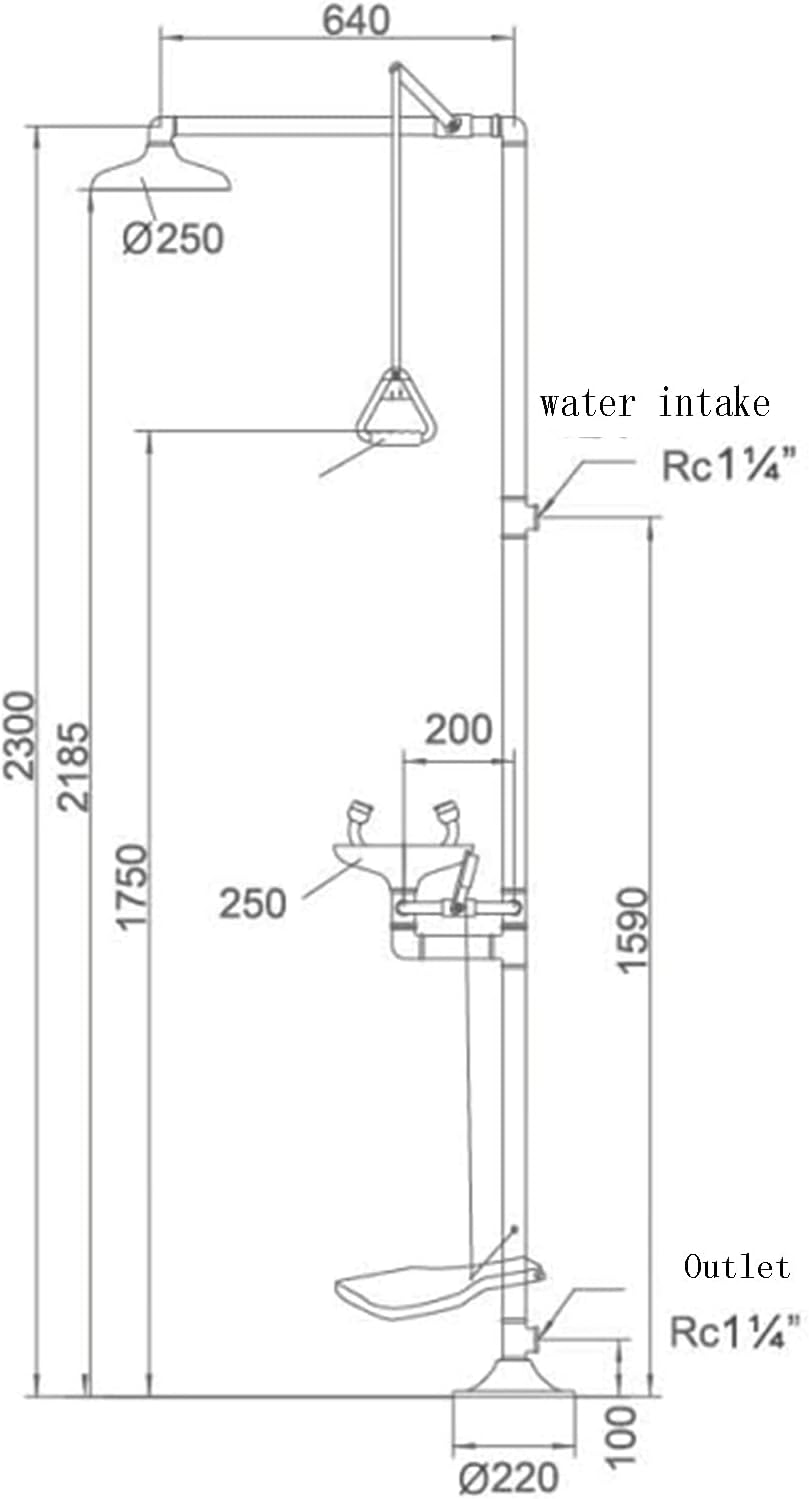

Use ball valves to control spray and wash eyes, respectively. Easy to operate, fast opening and closing, reliable sealing. The rinsing nozzle of the punching nozzle is a soft foam-like water stream, which improves the cleaning efficiency by 50% compared with ordinary eyewash nozzles. Applicable conditions: normal temperature pure water or water standard Performance: Super acid, alkali, salt, oil and other chemical substances corrosion. Features: emergency eye washing and shower double function Use: suitable for nuclear energy, petroleum, chemical, machinery manufacturing, automobile ship building, casting, painting, printing and dyeing, medicine, medical and other industries. Speifications Product material: thick 304 stainless steel Shower valve: 32mm (1 inch) Working pressure: 0.25-0.45MPA Sealing pressure: 0.4MPA Spray flow: 120-180 liters/min Eyewash flow: 12 liters/min Shower diameter: 32mm Applicable conditions: water at room temperature or water that meets sanitary standards Installation and commissioning *The installation location should be within 15 meters of the accident-prone place, and the flushing place can be reached within 10 seconds of running speed. *Assemble the components as shown in the figure. The joints of the components need to be wrapped with sealing tape (such as PTFE tape), and the water pipes are connected according to the diameter of the water inlet and outlet respectively. *After connecting the inlet and drain pipes, check whether the ball valve switch is in place flexibly and whether there is jamming.
| Manufacturer | Erxewim |
|---|
