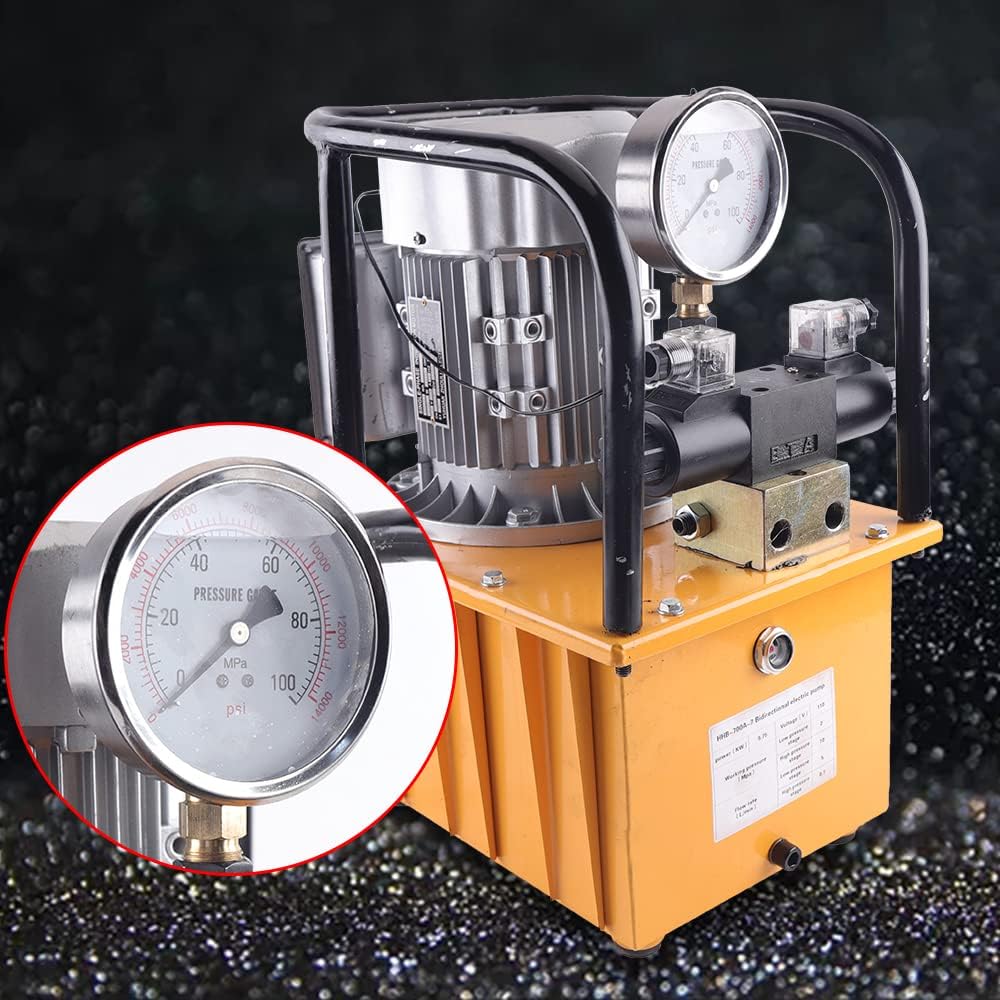

Hydraulic Pump Double Acting Solenoid Valve Pedal Switch 70 Mpa 10000PSI 110V w/Oil Hose & Quick Connector

Application:1. The pump can be used for a variety of hydraulic equipments.2. If the pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly. Reduce manual work and maximize work efficiency.3.Punching machine, bending machine, Jack split hydraulic products4. Working mode：Pedal Solenoid valve ControlSpecifications:Input voltage: AC 110V 60HZFlow rate: 0.6L/min(＞7Mpa) - 5L/min(＜7Mpa)Working pressure: 290PSI - 10152PSI(2Mpa - 70Mpa)Oil capacity: 7LMotor power: 750WMotor speed: 1400r/MinG.W: 30KGFeatures:Double-acting, solenoid valveManual switch and pedal switchStrong Storage CapacityPower SavingHigh speed high quality,stable wokingEasy to operateSafe to useOperation Instruction:1. Open the filler before use, the electric pump and power connections before oiling, then press down the black button which next to the motor to open, press the manual operation switch (up), after a few air pressure, press the manual operation switch (down), turn off the motor, connected to tubing. (The pressure should not exceed 63Mpa when air pressure, in order to avoid damage)2. Open the motor after the pump connect with the equipment, and placed the operation valve in pressurized position after the motor rotates 1-2 minutes, this moment the hydraulic oil come into the cylinder to perform the work, and the output of the hydraulic oil will increases with the load on their own booster until 63Mpa.Package Included:1 X Electric Driven Hydraulic Pump2 X Oil Hose(1.8M)2 X Quick Connector

• 【Efficient Motor】Equipped with a single-phase asynchronous motor, 750W, with aluminum shell, this electric hydraulic pump is energy efficient, powerful, and durable. Hydraulic pump working pressure: 2Mpa to 70Mpa. Rotate speed:1400r/min. Flow rate: 0.6L/min - 5L/min.

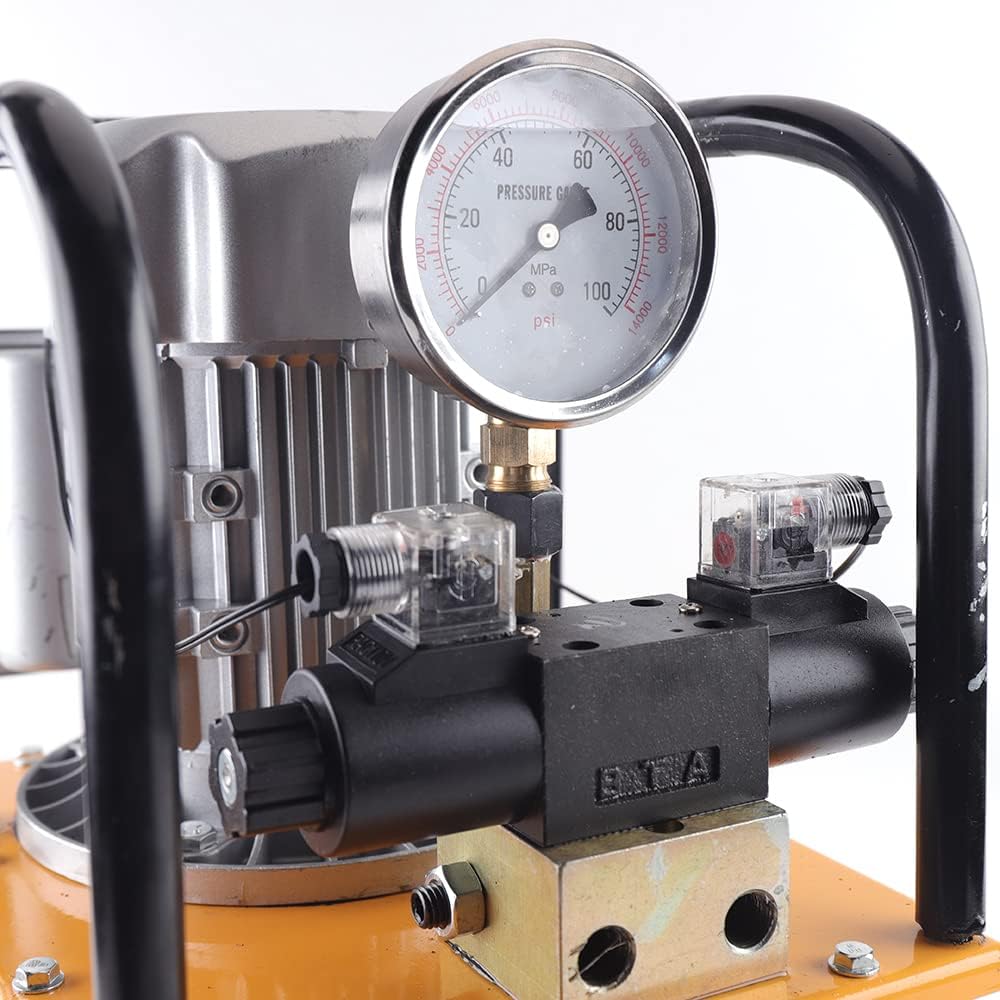

• 【Accurate Pressure Gauge】This air hydraulic pump has a precise pressure gauge, resistant to shock, helping to observe the pressure when the pump is working at any time. From 7Mpa to 70Mpa, you can try slowly and choose the right working pressure you need.
• 【Large Capacity Tank】With a hydraulic pump tank, 7L capacity, the hydraulic power pack is efficient. A visible window for monitoring the inside. The pump uses the 15 - 46 anti-wear hydraulic oil. It features compact size, lightweight, simple structure, and ease of use.
• 【Double Pipes】Manage this double-acting hydraulic gear pump by the solenoid valve. The high-pressure oil pipe is of high quality and durability. Control two with double pipes. Double-acting, solenoid valve Manual switch and pedal switch
• 【Widely Application】:The manual hydraulic pump can be used for a variety of hydraulic equipment, working on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly. Punching machine, bending machine, Jack split hydraulic
