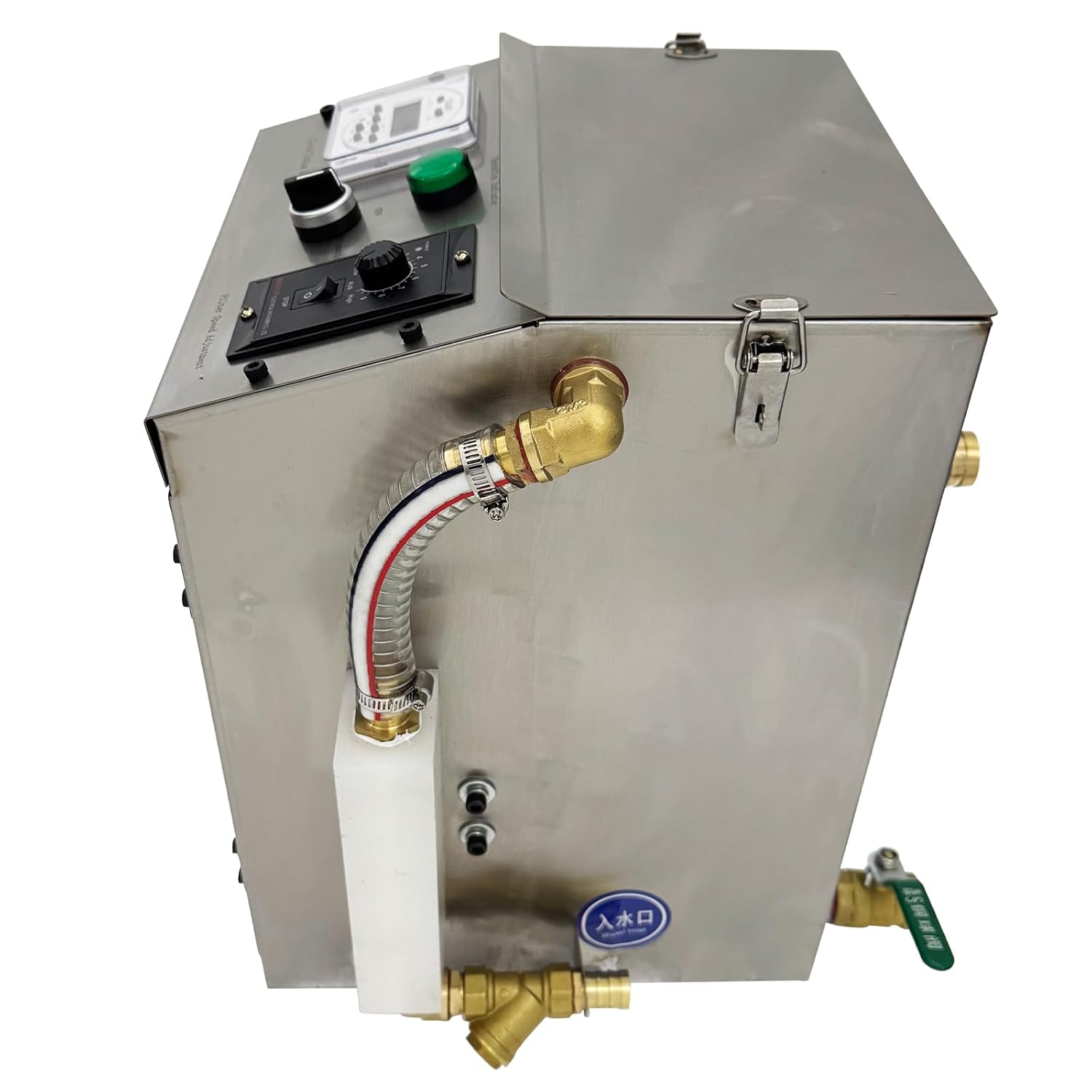

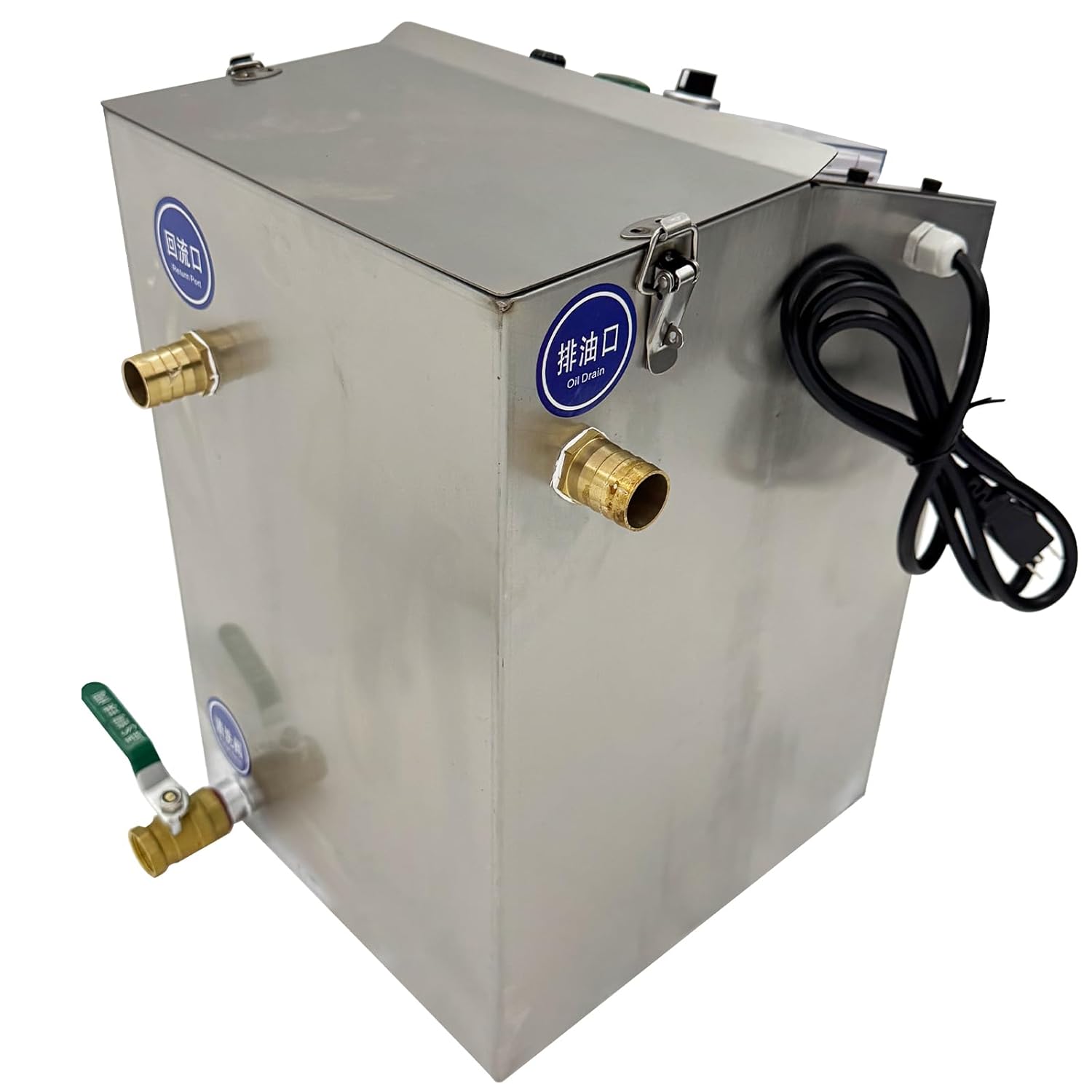

110V Oil Water Separator for CNC Machine Coolant, 13.2gal/H Tramp Oil Skimmer, Cutting Fluid Separator with 2.6gal Water Tank

Product Overview Cutting fluid is a basic necessity when machining workpieces using machine tools. The oil-water separator could separate floating oil from cutting fluid, thus greatly extending the service life of the cutting fluid. Meanwhile, it extends the service life of cutting tools, ensures machining accuracy, and protects the working environment and employees' health. It has the characteristics of fast oil recovery, good separation effect, wide application range and convenient use. Product Specification Voltage: AC110V Power: 25W Oil recovery capacity: 0-13.2gal/H (0-50L/H) Allowed particle size: 0.08" (2.0mm) Water tank capacity: 2.6gal (10L) Water inlet pipe inner diameter: 1/2"(12.7mm) Return pipe inner diameter: 3/4"(19.05mm) Oil drain pipe inner diameter: 3/4"(19.05mm) Adapt to pH value: pH5-11 Liquid temperature: 0-70 ℃ Absorbable viscosity: ≤ 1200 cst Maximum suction range: 0-3.3ft (0-1m) Package size: 20.1"*16.1"*21.3" (51cm*41cm*54cm) Net weight/Gross weight: 28.4lbs(12.9kg)/32.2lbs(14.6kg)

• PARAMETERS: Allowed particle size: 0.08" (2.0mm), Water tank capacity: 2.6gal (10L), Water inlet pipe inner diameter: 1/2"(12.7mm), Return pipe inner diameter: 3/4"(19.05mm), Oil drain pipe inner diameter: 3/4"(19.05mm), Adapt to pH value: pH5-11, Liquid temperature: 0-70 ℃, Absorbable viscosity: ≤ 1200 cst, Maximum suction range: 0-3.3ft (0-1m)
• Intelligent integrated design control panel for timing, manual/automatic and speed control according to your needs, easy to operate.
• The water after oil removal can be returned to the water tank for recycling or discharged, realizing full automation.
• The water inlet ensures that the cutting fluid and waste oil mixture can enter the separator smoothly and effectively separates the oil and water.
• The function of the purge valve is to purge sludge from the bottom of the tank to keep the system clean and running efficiently.
