JRready 3.0/4.2mm Pitch Two Types 2 4 6 8 Circuits Male & Female Receptacle Plug Connector Kit with Crimp Tool,Compatible with Molex Micro-Fit 3.0 and Mini-Fit Jr Connector,Free Hanging,ST6492
Product details
| Management number | 221104159 | Release Date | 2026/05/03 | List Price | $72.00 | Model Number | 221104159 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

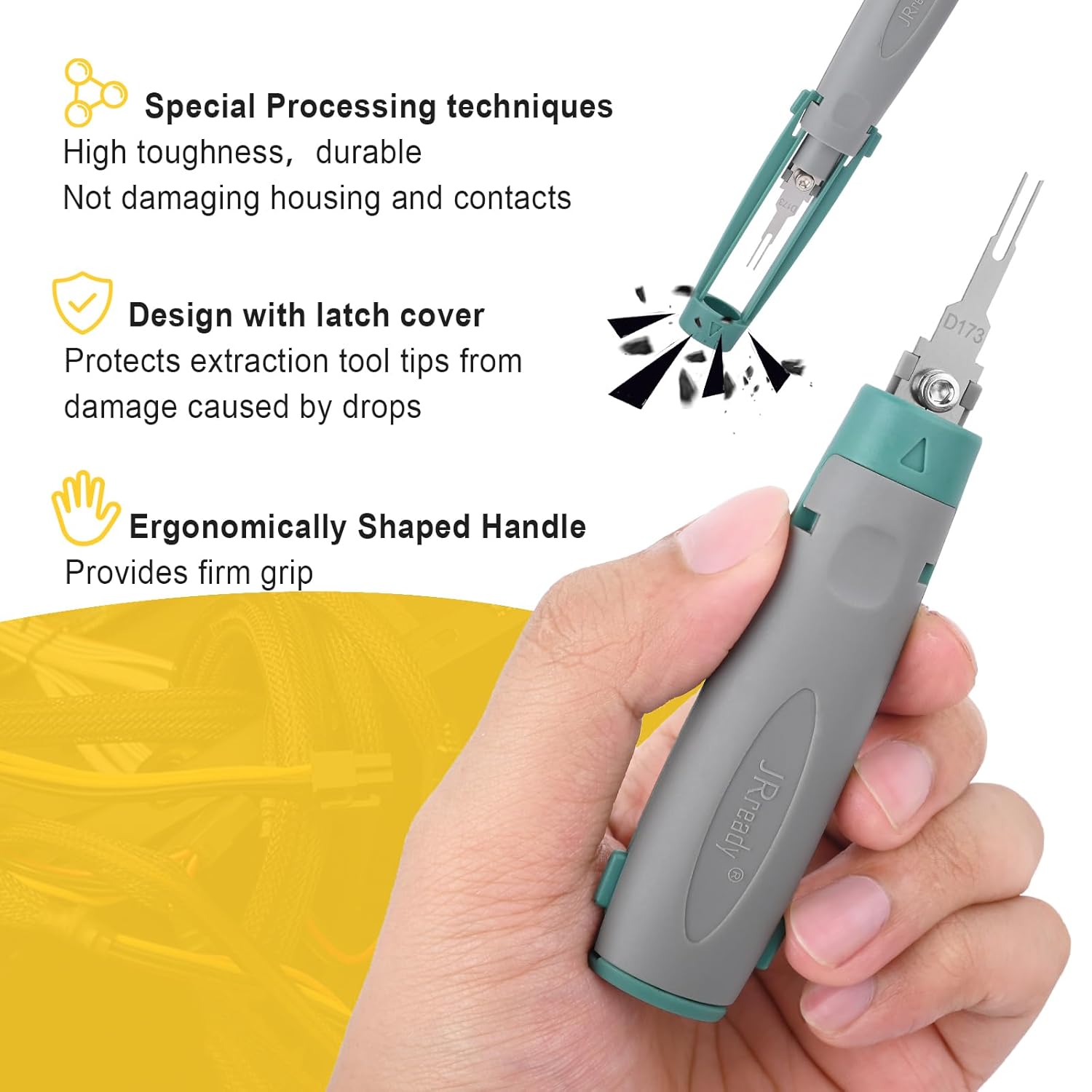

- 【Package List】Including 84 sets of 2, 4, 6, and 8-pin connectors with Pitch of 3.0mm(black) and 4.2mm(white), 180 pairs of pins and sockets, pin extractor tool 3 pcs,crimp frame 1 pcs,crimp die 2pcs.
- 【PremiumGrade Crimper Frame】High-hardness carbon steel body with black-oxide finish for corrosion resistance and durability; after heat treatment, can reach HRC45, the special pliers manufacturing process makes it both hard and tough,with cycle ratchet, If the crimping is not in place, it will not be released,ensure a secure and stable power connection.Avoiding safety issues caused by poor crimping.

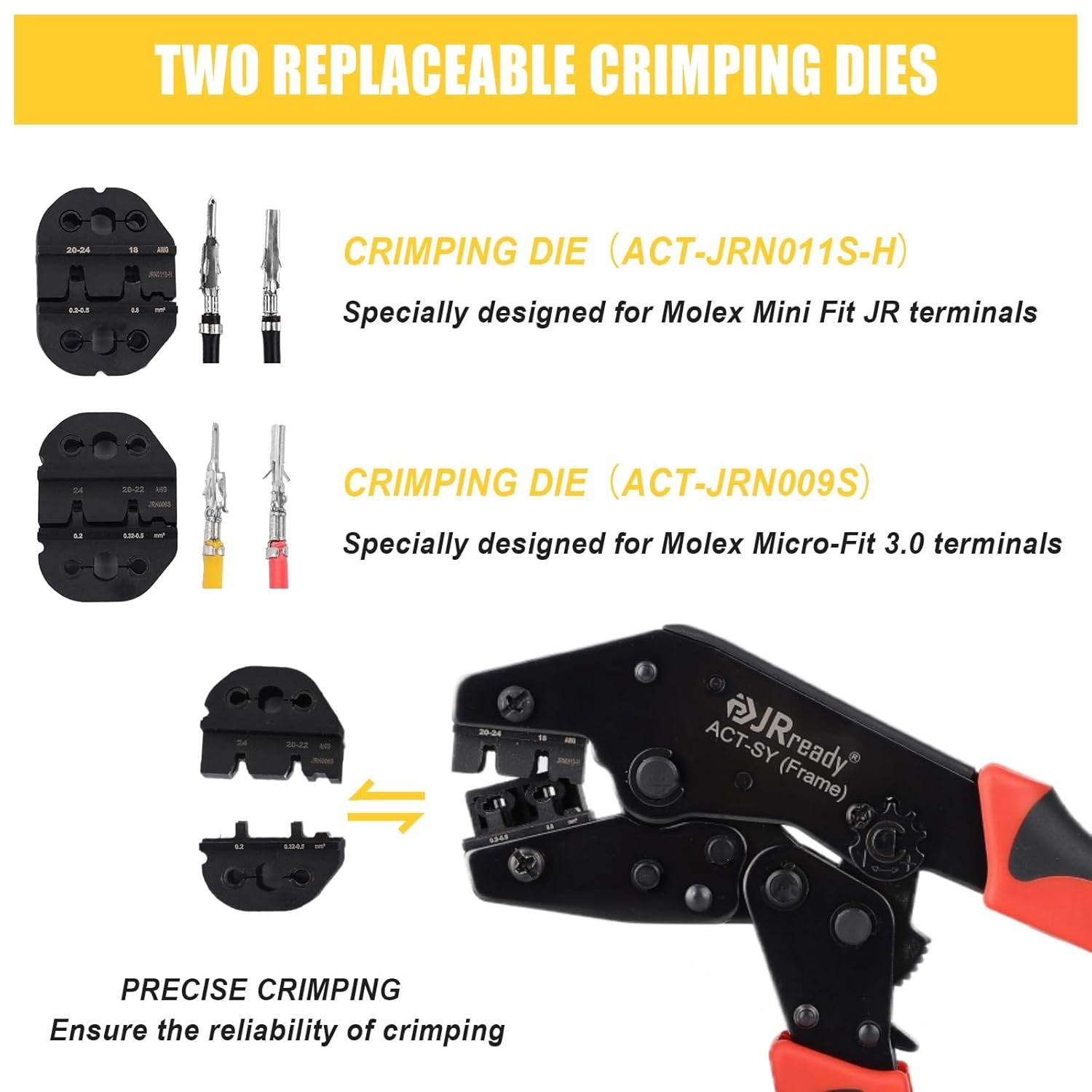

- 【JRN009 Crimping Die】JRN009 crimping die are designed specifically for Molex Micro-Fit 3.0 pin and socket crimp terminals,Jaws are processed with wire EDM cutting,tolerance±0.1mm, to achieve The highest precision crimping quality.the crimping effect is equivalent to Molex 638190000,crimp terminal model 43031001/430310007,43030001/430300007,JRN009-TPM,JRN009-TPF,wire range 20-24 AWG
- 【JRN011 Crimping Die】JRN011 crimping die are designed specifically for Molex Mini-Fit Jr pin and socket crimp terminals,Jaws are processed with wire EDM cutting,tolerance±0.1mm, to achieve The highest precision crimping quality.the crimping effect is equivalent to Molex 0638190901,crimp terminal model 39000040/ 39000038,JRN011-TBM-H/JRN011-TBF-H,wire range 18-24 AWG
- 【Connector Housings】 made of high quality PA66 material，sturdy and durable，high and low temperature resistance -40-105℃.3.0mm Pitch(black) Compatible with Molex Micro-Fit 3.0 Connector,4.2mm Pitch(white) Compatible with Molex Mini-Fit Jr Connector
| Color | black, white |
|---|---|
| Gauge | 35.75 |
| Model | ST6492 |
| Terminal | Pin Terminal |
| Stud Size | 1/4 |
| Brand Name | JRready |
| Part Number | ST6492 |
| Manufacturer | JRready |
| Material Type | carbon steel, PA66 |
| Connector Type | Quick Disconnect |
| Number of Items | 894 |
| Connector Gender | Male |
| Contact Material | Brass |
| Specification Met | UL |
| Included Components | connector housing,terminal,crimp tool |
| Insulation Material Type | Nylon |
| Item Dimensions L x W x H | 8.7"L x 9.7"W x 2.6"H |
