50M56X-843 Furnace Controls Univ Replacement

Integrated Furnace Controls Univ Replacement

• Replaces part numbers: 50M56U-843

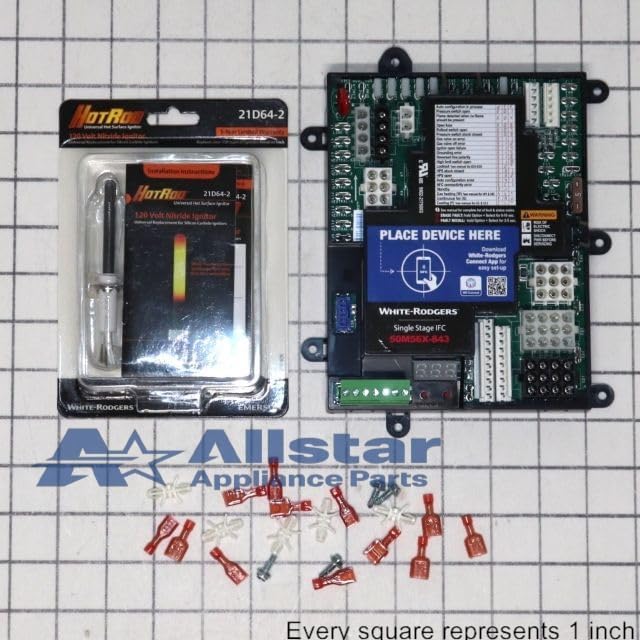

• Universal single stage HSI integrated furnace control for PSC and ECMx blower motors. Includes a universal 120V nitride ignitor and utilizes the White-Rodgers Connect app for simple configuration and diagnostics. Configurable for either PSC or ECMx blower motors Reduce inventory by replacing over 550 part numbers Quick configuration (without power) and diagnostics with the White-Rodgers Connect App OEM harness detection, no additional harnesses required 120V Nitride ignitor included 7-Segment LED display provides unlimited configuration options Rollout accessory is not required Thermostat connector block for simple wiring
• Specifications Input Voltage 25 Vac, 60 Hz Circulator Relay 14.5 FLA-25.0 LRA @ 120 Vac Operating Temperature Range -40 to 175 deg. F (-40 to 79 deg. C) Operating Humidity 5% to 93% relative humidity (non-condensing) Accessories Includes Ignitor Agency Approvals UL- US, Canada
• All returned items must be in new and re-saleable condition; no refunds or exchanges will be given if the item is not in the same condition as when it was sold
• If the part does not match the part in your appliance DO NOT INSTALL. will not be refundable once installed. Please contact us.
