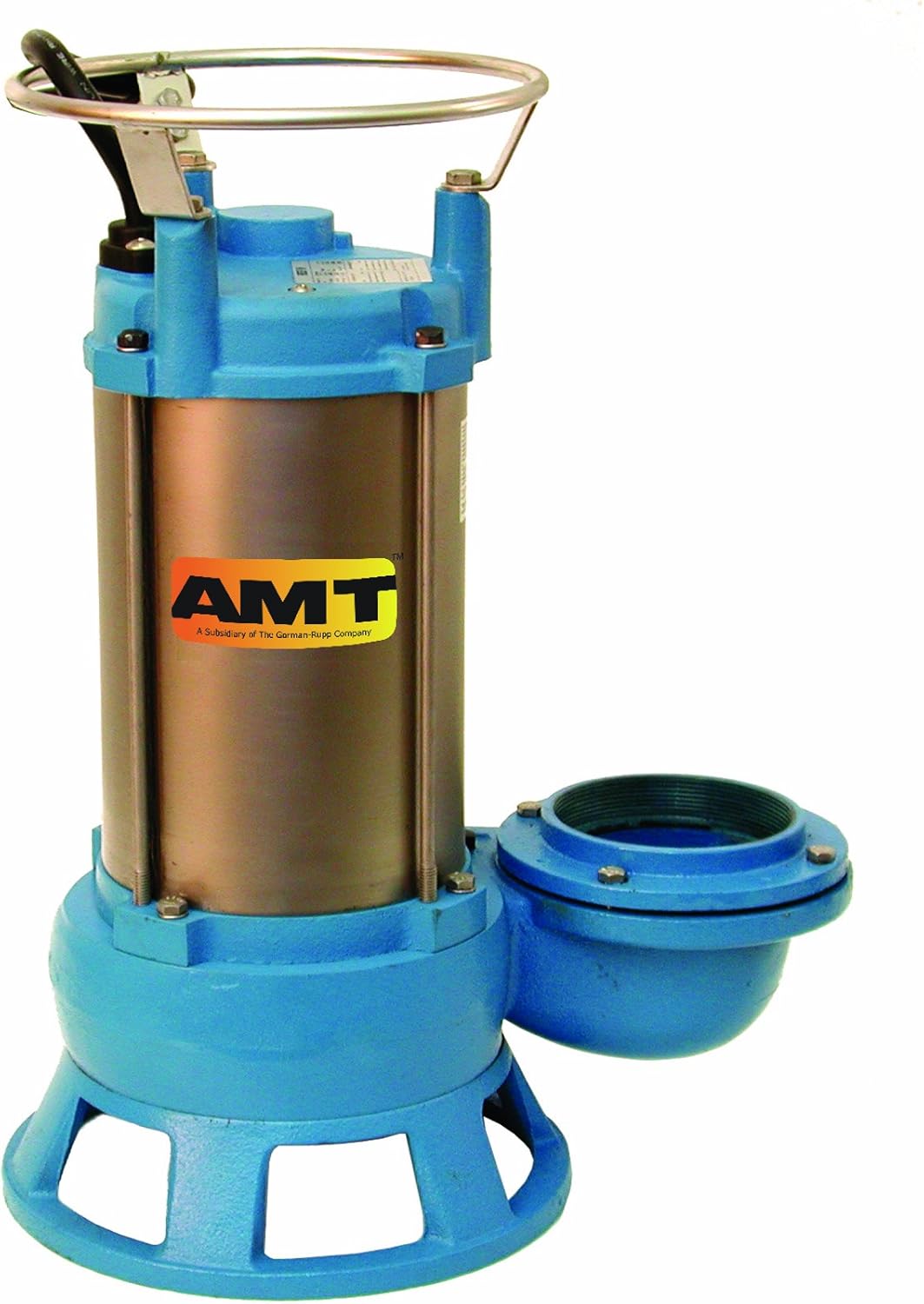

AMT 5763-95 CI Submersible Shredder Sewage Pump, Double Mechanical Seal, 3" Out, 2 hp, 1 Phase Motor

AMT 5763-95 Cast Iron Submersible Shredder Sewage Pump. 2 HP , 1 Phase, 230 VAC/60 Hz, 12 Full Load Amps Motor. AMT Submersible Shredder Sewage Pump feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection. Minimum liquid requirements must be above 85%. Failure to do so may cause pump damage and void warranty. Spiral Shredder Mechanism Plate Surface Hardened for Enhanced Cutting Ability. 18 foot electrical cord included (without plug). Cast Iron Construction; Stainless Steel Motor Housing; Double Mechanical Seal with Carbide Lower Seal; Carbide Tipped Impeller; UL/CSA Listed; Suction Screen; Carrying Handle; Maximum Temperature 104 F; NOTE: Dimensions are in inches and have a tolerance of +/- 1/8". NOTE: Electric supply for ALL motors must be within +/- 10% of nameplate voltage (Ex: 230V = 203 to 253).

• Cast Iron with Stainless Steel Motor Housing; Carbide Tipped Shredder Impellers
• Spiral Shredder Mechanism Plate Surface Hardened for Enhanced Cutting Ability
• Triplex Seal System: Double Mechanical Seals Plus Shaft Seal; Lower Seal - Silicon Carbide
• Minimum liquid requirements must be above 85%
• 2 HP , 1 Phase, 230 VAC/60 Hz, 12 Full Load Amps Motor (UL/CSA Listed)
